NUT 6810539 (1)

NUT 6810539 (1)

NUT 6810539 (1)

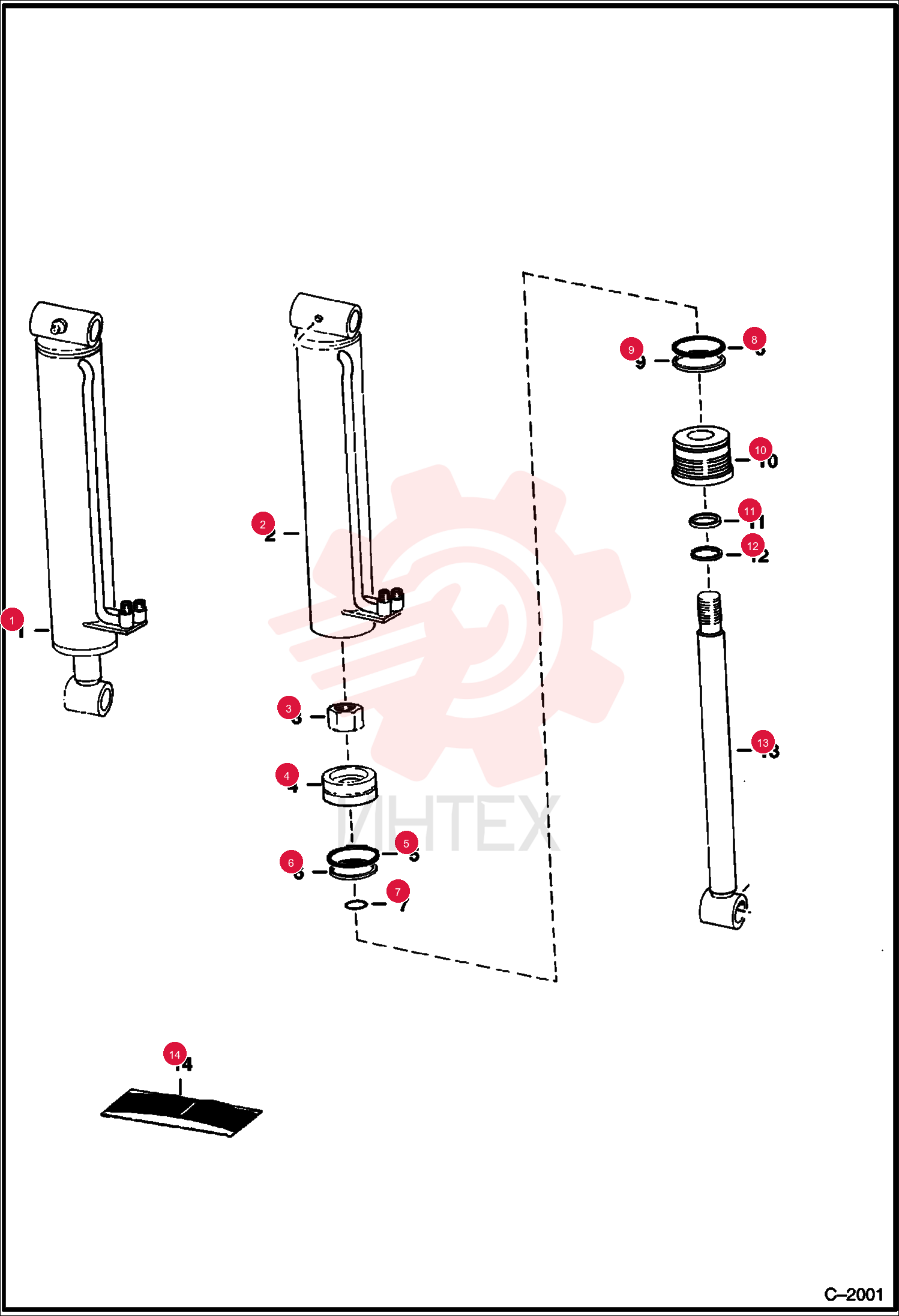

1 6810539

  • 6810539 - NUT
  • Was 6804592

2 6803870

  • 6803870 - PISTON
  • Was 6553912

3 54K30218

  • 54K30218 - 0-RING
  • Was 25K30218

4 947088

  • 947088 - RING
  • BACK-UP

5 58K232

  • 58K232 - O RING 10

6 73K232

  • 73K232 - RING
  • BACK-UP
  • back-up - Was 80K232

7 6538141

  • 6538141 - SEAL ROD
  • u-cup

8 6690707

  • 6690707 - WIPER
  • ROD CYL
  • Was 6665086

9 6592897

  • 6592897 - SHAFT W/A

10 7135547

  • 7135547 - KIT
  • SEAL
  • Ref. 5-9
  • 11 & 12 - Was 6589798
