Bobcat
/
540
/

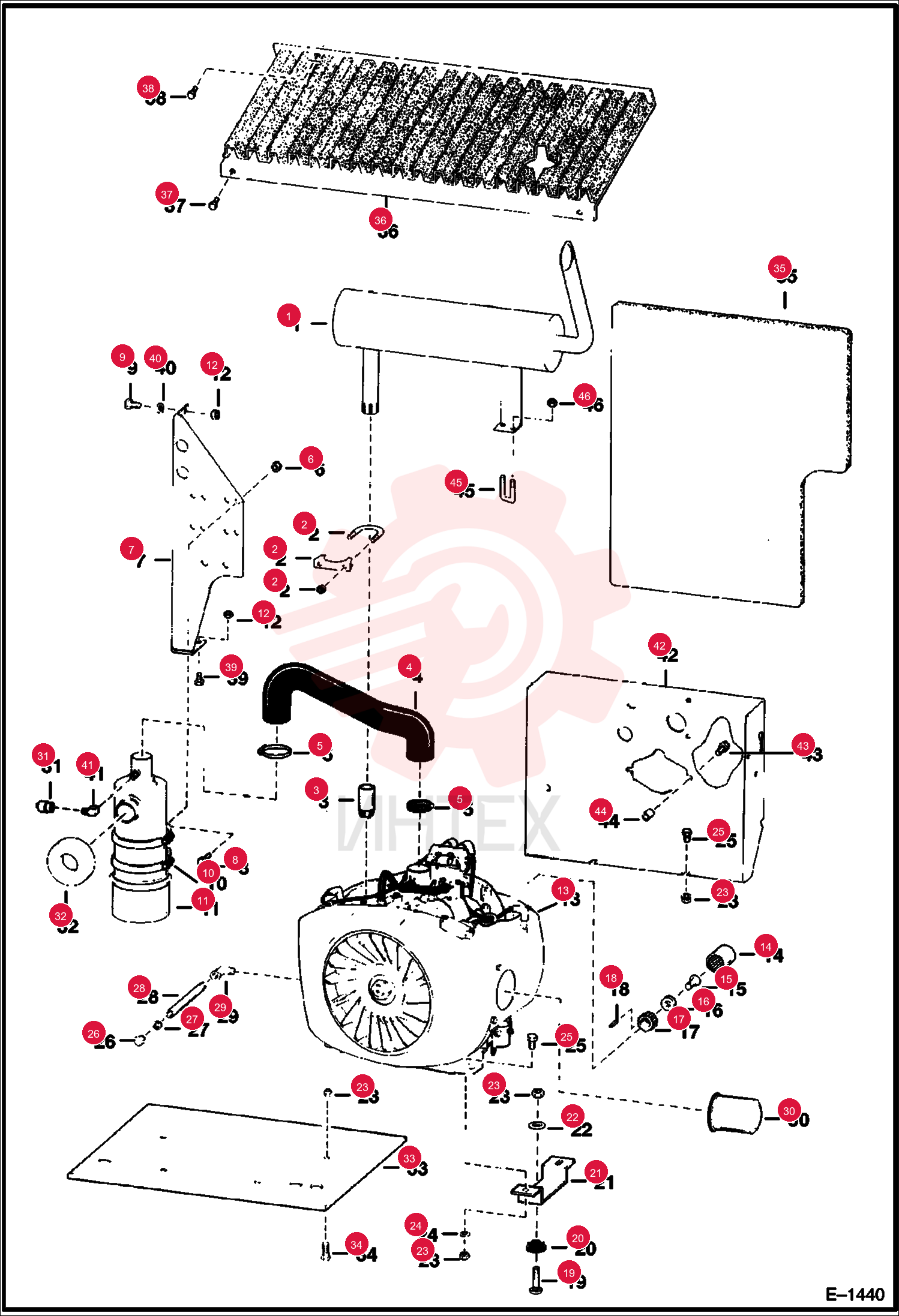

MUFFLER 6564013

MUFFLER 6564013

MUFFLER 6564013

1 6564013

  • 6564013 - MUFFLER
  • spark arrestor

2 656597

  • 656597 - CLAMP

3 6564178

  • 6564178 - PIPE
  • EXHAUST

4 6564537

  • 6564537 - HOSE

5 42H32

  • 42H32 - HS CLAMP5
  • Was 42H000024B

6 61D5

  • 61D5 - NUT HEX FINISHED GR5

7 6563905

  • 6563905 - MOUNT

8 17C510

  • 17C510 - BOLT

9 37C616

  • 37C616 - BOLT
  • Was 6514537

10 335902

  • 335902 - BAND
  • mounting

11 61D6

  • 61D6 - NUT HEX FINISHED GR5

12 6553540

  • 6553540 - COUPLER

13 96G616

  • 96G616 - SCREW

14 6553541

  • 6553541 - WASHER

15 6553539

  • 6553539 - ADAPTOR

16 7J3009

  • 7J3009 - KEY
  • square

17 31C844

  • 31C844 - BOLT

18 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • shock

19 6553334

  • 6553334 - BRACKET
  • engine mounting

20 6515817

  • 6515817 - WASHER

21 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

22 25E21

  • 25E21 - WASHER FLAT PLAIN

23 17C824

  • 17C824 - BOLT 5

24 6553573

  • 6553573 - PLUG

25 6553574

  • 6553574 - WASHER

26 6553572

  • 6553572 - TUBE

27 29F4

  • 29F4 - ELBOW

28 6512143

  • 6512143 - FILTER 12
  • filter

29 1735188

  • 1735188 - INDICATR

30 6564538

  • 6564538 - INSULATION

31 6564539

  • 6564539 - COUNTERWEIGHT

32 31C824

  • 31C824 - BOLT 10

33 6564404

  • 6564404 - INSULATION

34 6567866

  • 6567866 - GRILL

35 84G3112

  • 84G3112 - SCREW THD ROLLING TT

36 84G3712

  • 84G3712 - SCREW THD ROLLING TT

37 17C612

  • 17C612 - SCREW HEX CAP

38 6E6

  • 6E6 - WASHER

39 6563640

  • 6563640 - SHIELD

40 17C620

  • 17C620 - BOLT

41 6564180

  • 6564180 - SPACER

42 6564872

  • 6564872 - U BOLT

43 83D5

  • 83D5 - LKNUT HEX FLG GR8
