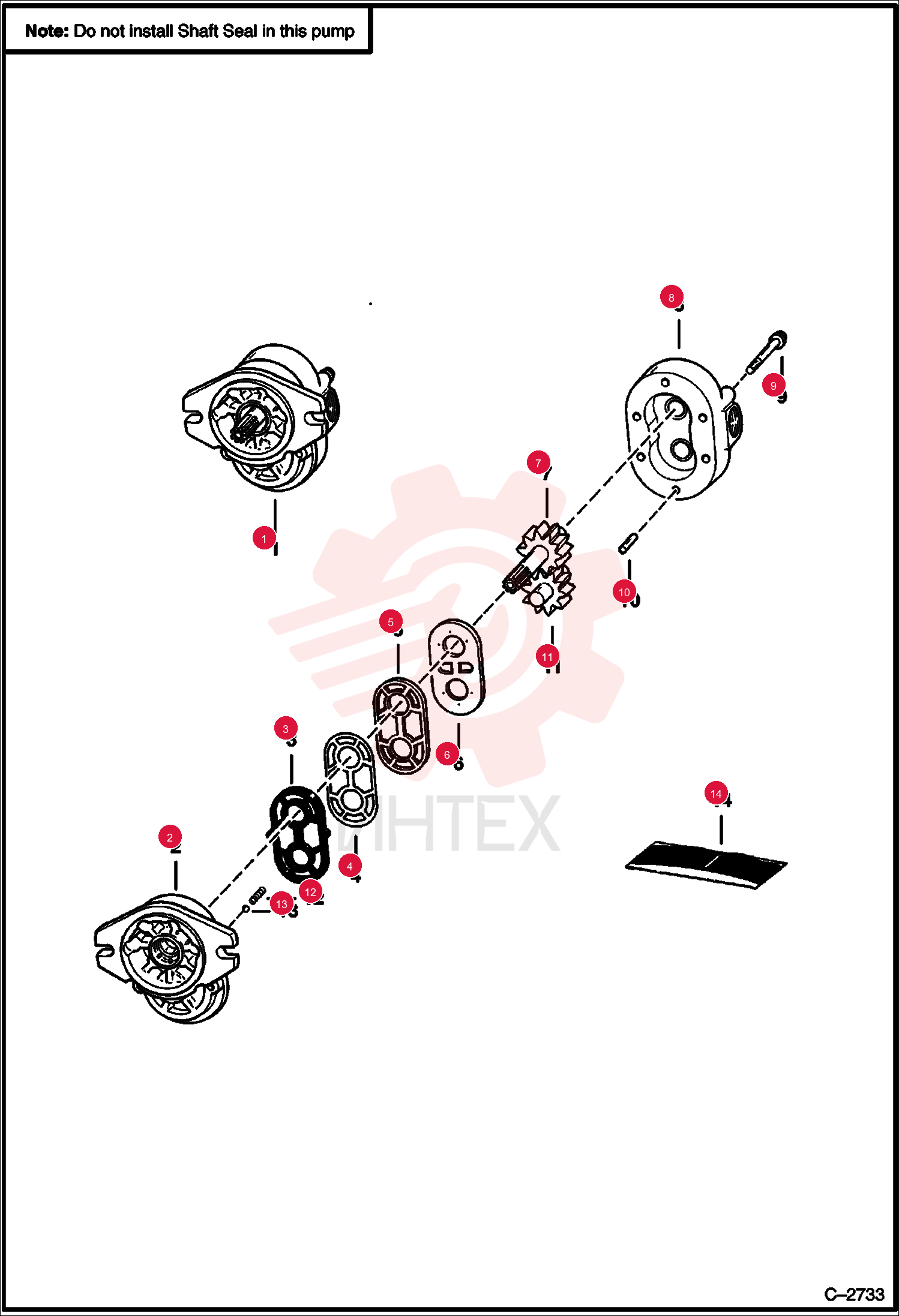

PLATE 6598933

PLATE 6598933

PLATE 6598933

1 6598933

  • 6598933 - PLATE
  • front

2 6598871

  • 6598871 - HOUSING

3 93G536

  • 93G536 - BOLT

4 892817

  • 892817 - DOWEL

5 6598872

  • 6598872 - IDLERGEAR

6 3490588

  • 3490588 - SPRING

7 10J7

  • 10J7 - BALL

8 6598870

  • 6598870 - SEAL KIT
  • Ref. 3-6
  • 12 & 13
