Bobcat
/
540
/

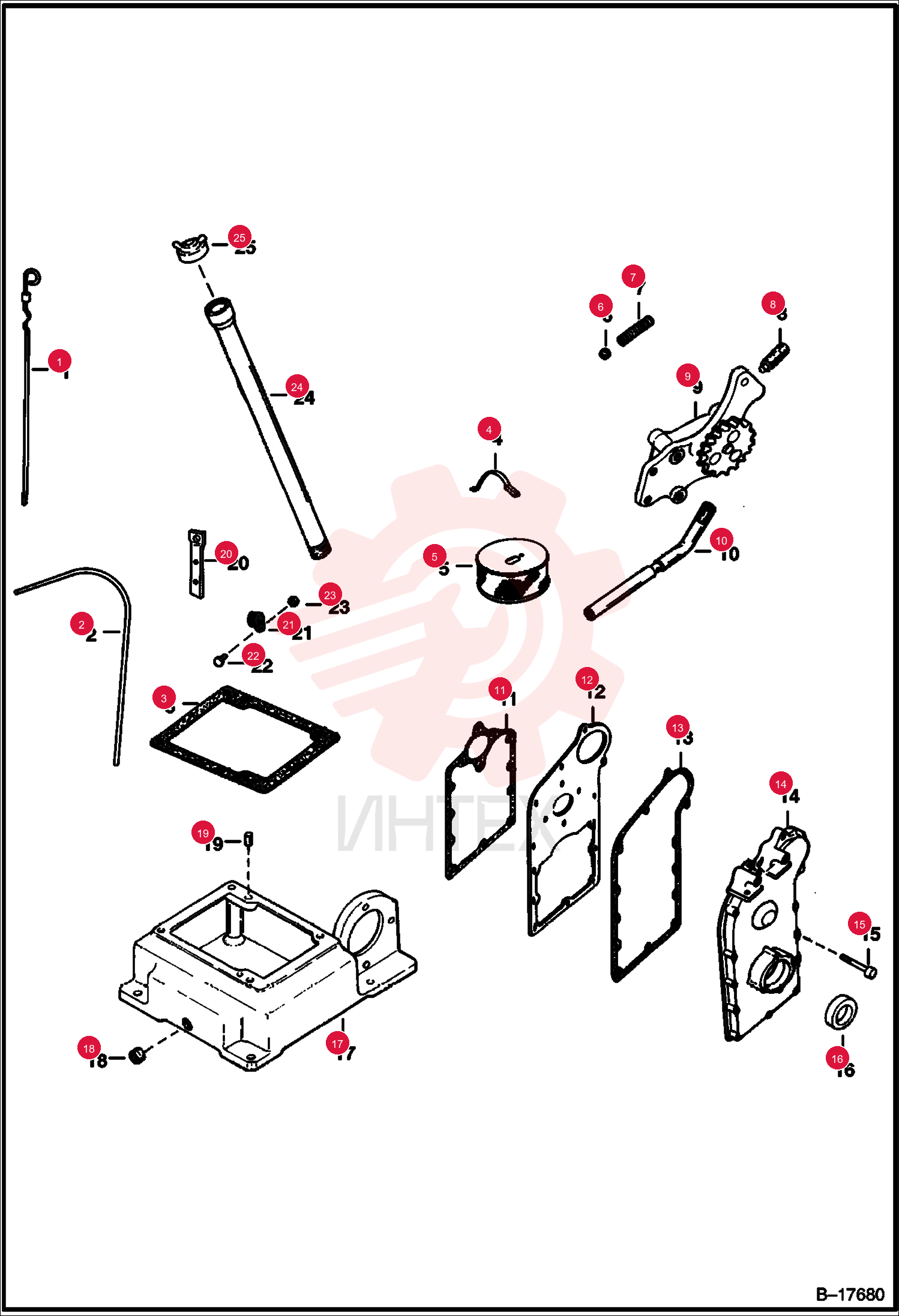

DIPSTICK 6564624

DIPSTICK 6564624

DIPSTICK 6564624

1 6564624

  • 6564624 - DIPSTICK

2 6565846

  • 6565846 - TUBE
  • dipstick

3 6512213

  • 6512213 - GASKET
  • oil pan

4 6517166

  • 6517166 - CLIP
  • oil tube

5 10J10

  • 10J10 - BALL

6 6512218

  • 6512218 - SPRING
  • relief

7 6513948

  • 6513948 - PUMP

8 6512220

  • 6512220 - PLATE

9 6512219

  • 6512219 - GASKET
  • gear cover

10 17C528

  • 17C528 - BOLT

11 6632344

  • 6632344 - SEAL
  • front oil

12 6599735

  • 6599735 - OIL PAN

13 16F12

  • 16F12 - PLUG
  • pipe

14 6564622

  • 6564622 - BRACKET

15 30H22

  • 30H22 - CLIP INSULATED

16 17C510

  • 17C510 - BOLT

17 61D5

  • 61D5 - NUT HEX FINISHED GR5

18 6599731

  • 6599731 - TUBE
  • oil fill

19 6599728

  • 6599728 - CAP
  • oil fill
