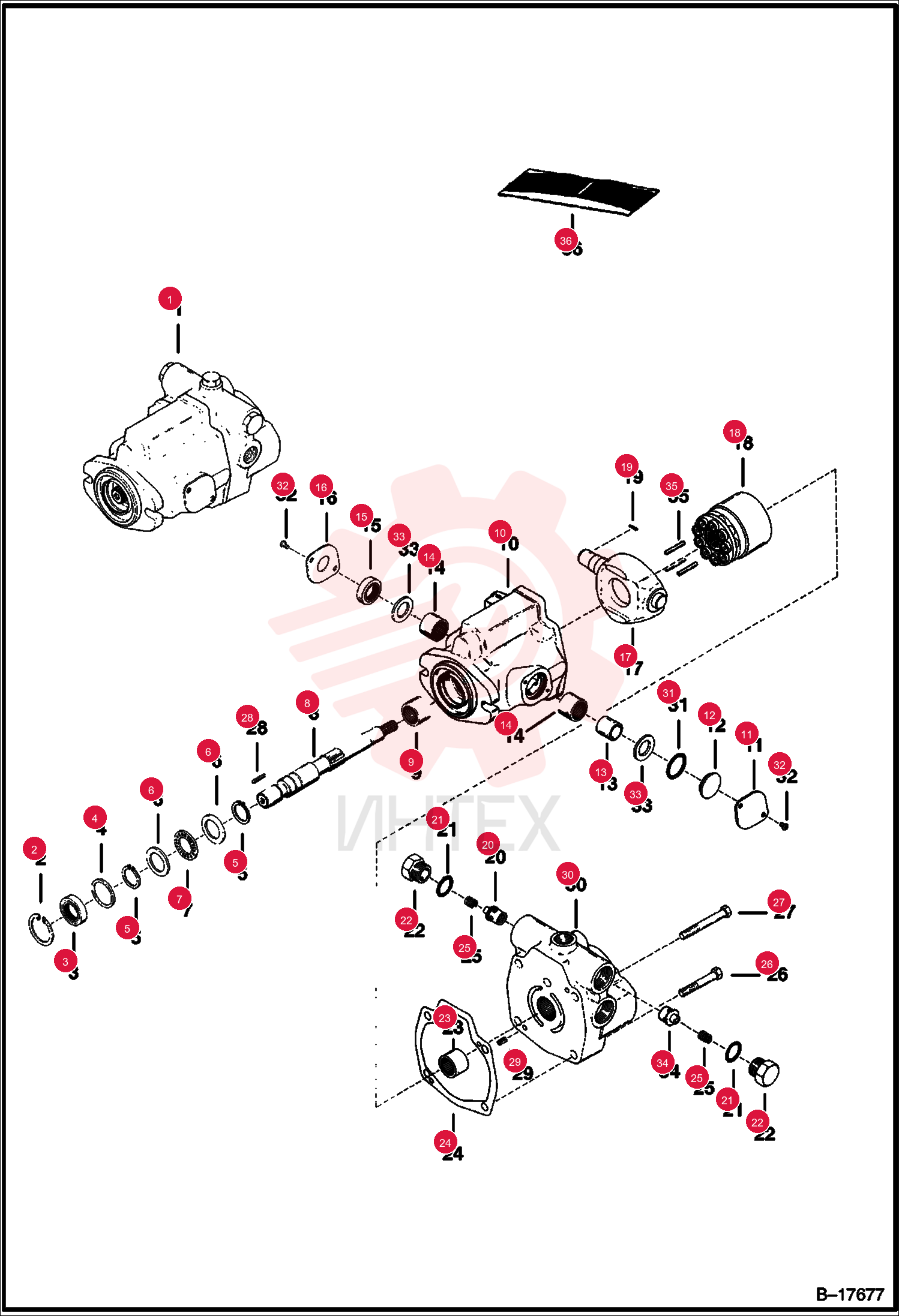

PUMP REAR 6598857

PUMP REAR 6598857

PUMP REAR 6598857

1 6598857

  • 6598857 - PUMP REAR
  • new - 70145-RAA

2 6630499

  • 6630499 - PUMP REAR
  • remanufactured - 70145-RAA

3 6632065

  • 6632065 - PUMP REAR
  • new - 70145-RAL

4 661415

  • 661415 - SNAP RING
  • retaining

5 6598875

  • 6598875 - WASHER

6 710776

  • 710776 - RING
  • RETAINER
  • retaining

7 6598878

  • 6598878 - RACE
  • thrust

8 3292657

  • 3292657 - BEARING
  • thrust

9 851239

  • 851239 - BEARING

10 6598887

  • 6598887 - COVER

11 6648789

  • 6648789 - COVER
  • Was 6598888

12 6598883

  • 6598883 - RACE

13 654387

  • 654387 - BEARING

14 6598886

  • 6598886 - COVER

15 6598892

  • 6598892 - CAM

16 6598893

  • 6598893 - ROTAT.KIT
  • Rotating

17 6630170

  • 6630170 - KEY

18 6632063

  • 6632063 - VALVE
  • RELIEF
  • For 70145-RAL Pump

19 6513978

  • 6513978 - VALVE
  • RELIEF
  • For 70145-RAA Pump

20 6513998

  • 6513998 - PLUG
  • W/Ref. 21 - For 70145-RAA Pump

21 6513479

  • 6513479 - PLUG
  • W/Ref. 21 & 25 - For 70145-RAL Pump

22 654386

  • 654386 - BEARING

23 6514010

  • 6514010 - SPRING
  • For 70145-RAA Pump

24 17C532

  • 17C532 - BOLT 5

25 17C540

  • 17C540 - BOLT

26 6598880

  • 6598880 - KEY

27 214028

  • 214028 - PIN

28 6598881

  • 6598881 - SCREW

29 6598876

  • 6598876 - WASHER

30 6630243

  • 6630243 - POPPET
  • For 70145-RAA Pump

31 6654126

  • 6654126 - PIN

32 6598896

  • 6598896 - KIT
  • SEAL
  • Ref. 2
  • 3
  • 5
  • 15
  • 21
  • 24 & 31
