Bobcat
/
540
/

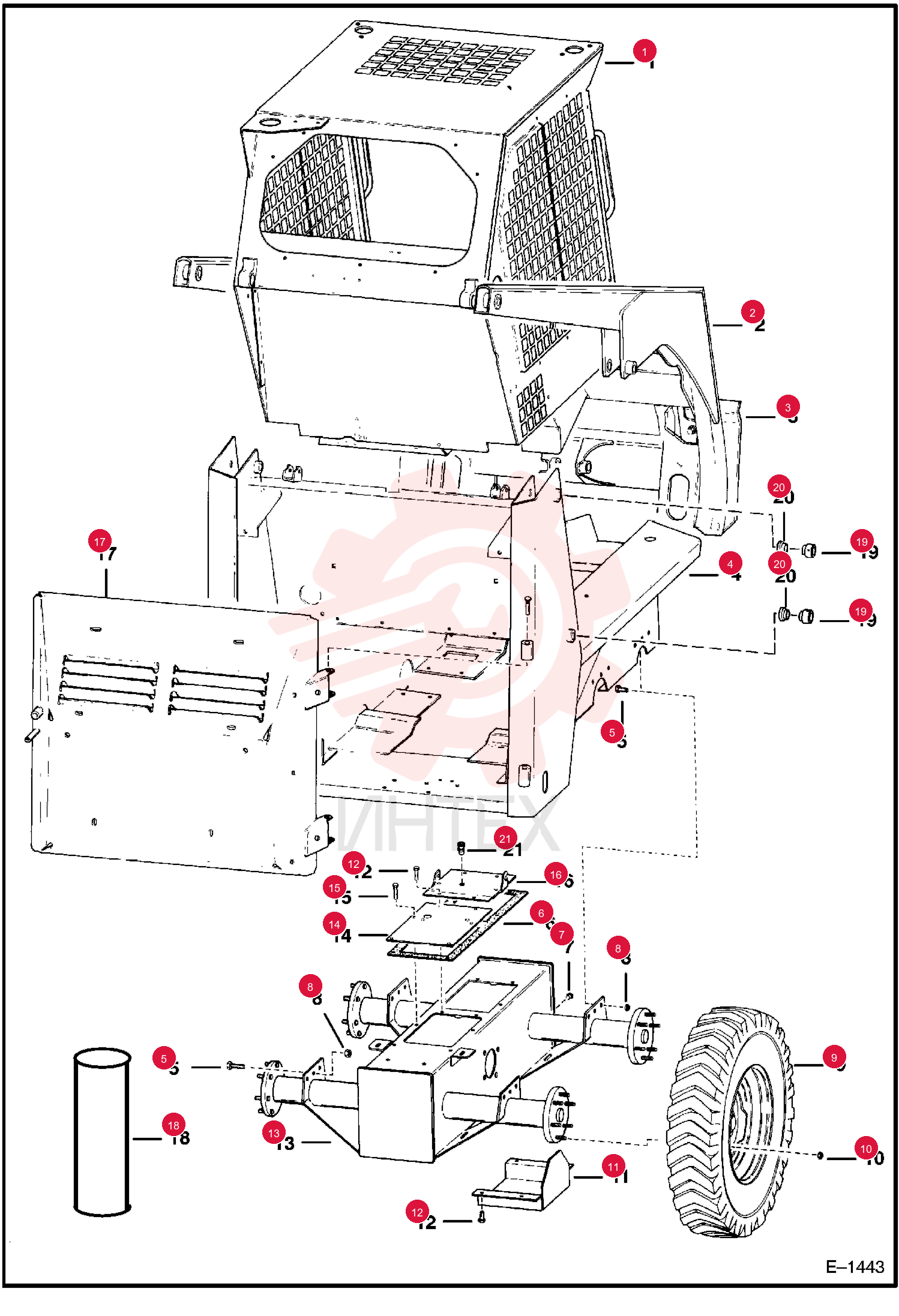

MAIN FRAME 6565269

MAIN FRAME 6565269

MAIN FRAME 6565269

1 6565269

  • 6565269 - MAIN FRAME

2 31C820

  • 31C820 - BOLT

3 6703117

  • 6703117 - GASKET
  • TRANSMISSION
  • Was 6553833

4 40K12

  • 40K12 - PLUG

5 83D8

  • 83D8 - LKNUT HEX FLG GR8

6 6557188

  • 6557188 - NUT 5
  • wheel - 1/2"

7 6564669

  • 6564669 - NUT WHEEL
  • wheel - 9/16"

8 6564918

  • 6564918 - COVER
  • Was 6703916

9 84G3716

  • 84G3716 - SCREW THD ROLLING TT

10 6554088

  • 6554088 - PLATE
  • COVER

11 84G3712

  • 84G3712 - SCREW THD ROLLING TT

12 6632501

  • 6632501 - SEALANT
  • POLYURETHANE
  • chaincase covers

13 6564582

  • 6564582 - BUSHING
  • Weld On

14 6564583

  • 6564583 - BUSHING
  • Weld On
