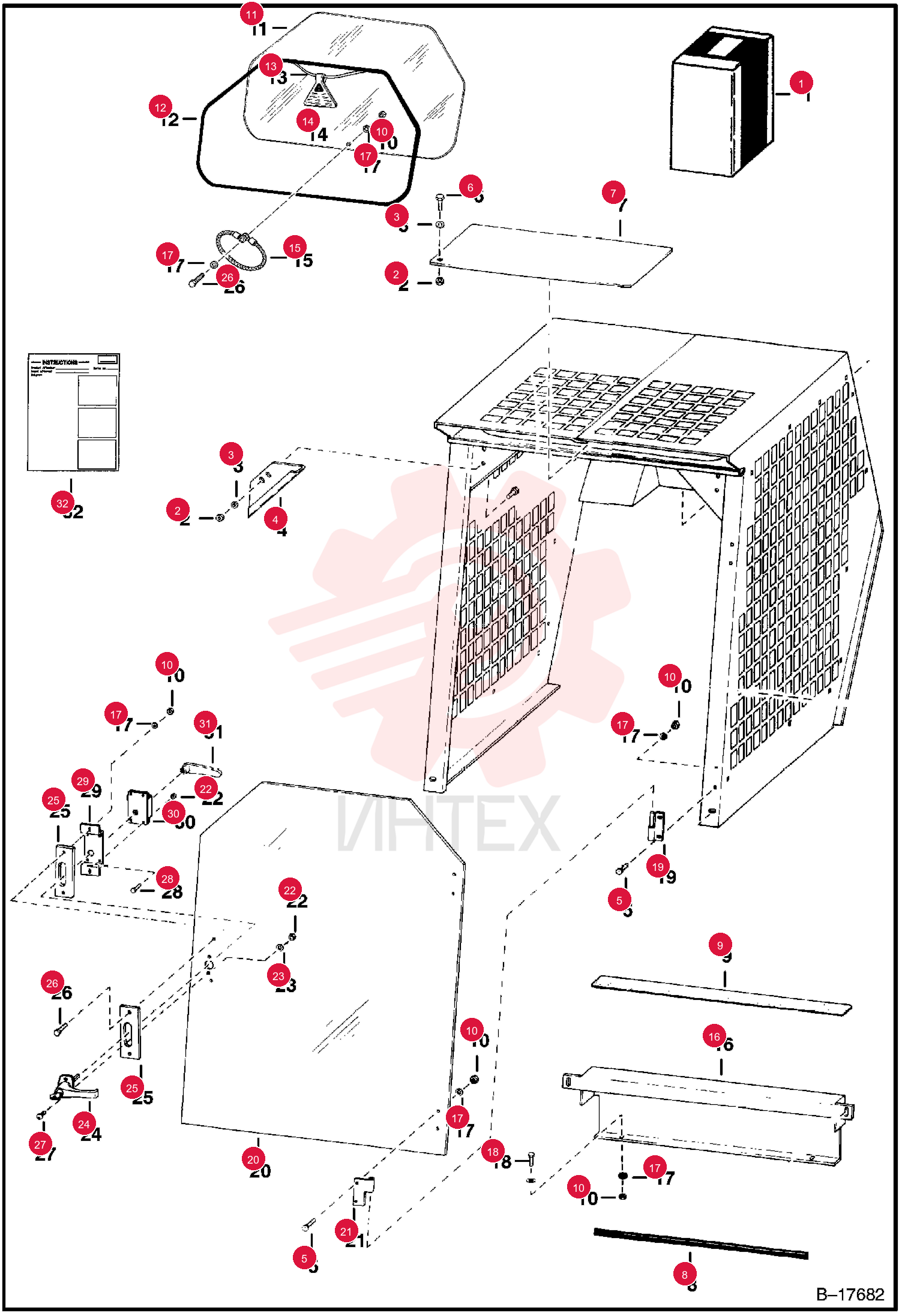

LKNUT HEX FLG GR8

LKNUT HEX FLG GR8

LKNUT HEX FLG GR8

1 83D6

  • 83D6 - LKNUT HEX FLG GR8
  • Was 85D000006B

2 25E18

  • 25E18 - WASHER FLAT PLAIN

3 6555434

  • 6555434 - CHANNEL

4 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

5 17C612

  • 17C612 - SCREW HEX CAP

6 6705216

  • 6705216 - WINDOW
  • top - Was 6564829

7 6564833

  • 6564833 - SAFETY

8 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

9 6564830

  • 6564830 - WINDOW
  • rear

10 6658352

  • 6658352 - MOULDING
  • bulk - sold per foot - Was 6554221

11 6554149

  • 6554149 - CORD
  • bulk - sold per foot Also Order Ref. 14 (6731478 exit tag) - Was 6554223

12 6731478

  • 6731478 - TAG EXIT
  • Was 6559515

13 6555331

  • 6555331 - WIRE ROPE

14 6563392

  • 6563392 - SHIELD

15 6568164

  • 6568164 - SHIELD

16 25E15

  • 25E15 - WASHER FLAT PLAIN

17 17C512

  • 17C512 - BOLT 5

18 6564831

  • 6564831 - HINGE

19 6564069

  • 6564069 - DOOR

20 6564832

  • 6564832 - HINGE

21 12D10

  • 12D10 - NUT

22 25E10

  • 25E10 - WASHER FLAT PLAIN

23 1550695

  • 1550695 - HANDLE
  • outside - W/Key

24 6555054

  • 6555054 - PLATE

25 17C516

  • 17C516 - BOLT

26 75G1020

  • 75G1020 - SCREW

27 45G1008

  • 45G1008 - BOLT

28 6555059

  • 6555059 - BRACKET

29 6598475

  • 6598475 - LATCH

30 6515600

  • 6515600 - HANDLE
