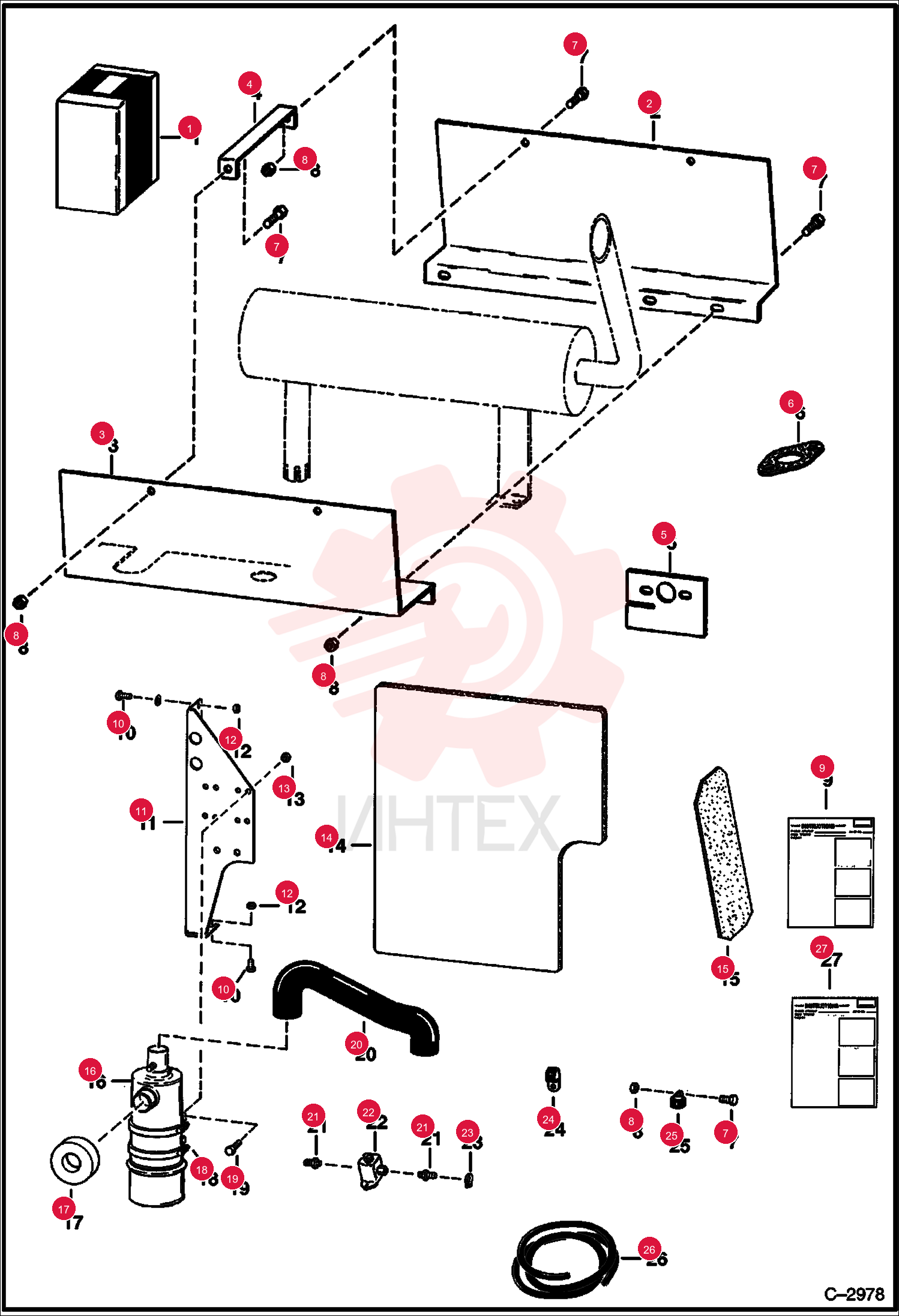

KIT, SHIELD 6571519 (2)

KIT, SHIELD 6571519 (2)

KIT, SHIELD 6571519 (2)

1 6571519

  • 6571519 - KIT
  • SHIELD
  • heat shield - Ref. 2-9 & 21-23

2 6571563

  • 6571563 - VAPOR KIT
  • vapor lock - Ref. 2-27

3 6571511

  • 6571511 - SHIELD

4 6571512

  • 6571512 - SHIELD

5 6571513

  • 6571513 - STRIP

6 6571514

  • 6571514 - SHIELD

7 6518866

  • 6518866 - GASKET
  • carb.

8 17C412

  • 17C412 - BOLT 5

9 61D4

  • 61D4 - NUT 5

10 17C612

  • 17C612 - SCREW HEX CAP

11 6563905

  • 6563905 - MOUNT

12 61D6

  • 61D6 - NUT HEX FINISHED GR5

13 61D5

  • 61D5 - NUT HEX FINISHED GR5

14 6564404

  • 6564404 - INSULATION

15 6565012

  • 6565012 - INSULATION

16 6631693

  • 6631693 - AIR CLNR

17 6564538

  • 6564538 - INSULATION

18 335902

  • 335902 - BAND

19 17C510

  • 17C510 - BOLT

20 6564537

  • 6564537 - HOSE

21 6505813

  • 6505813 - ADAPTER

22 6558398

  • 6558398 - FUEL PUMP
  • Electric

23 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

24 30H34

  • 30H34 - CLAMP

25 30H33

  • 30H33 - CLIP INSULATED

26 6577821

  • 6577821 - HOSE
  • BULK
  • sold per foot - Was 672221
