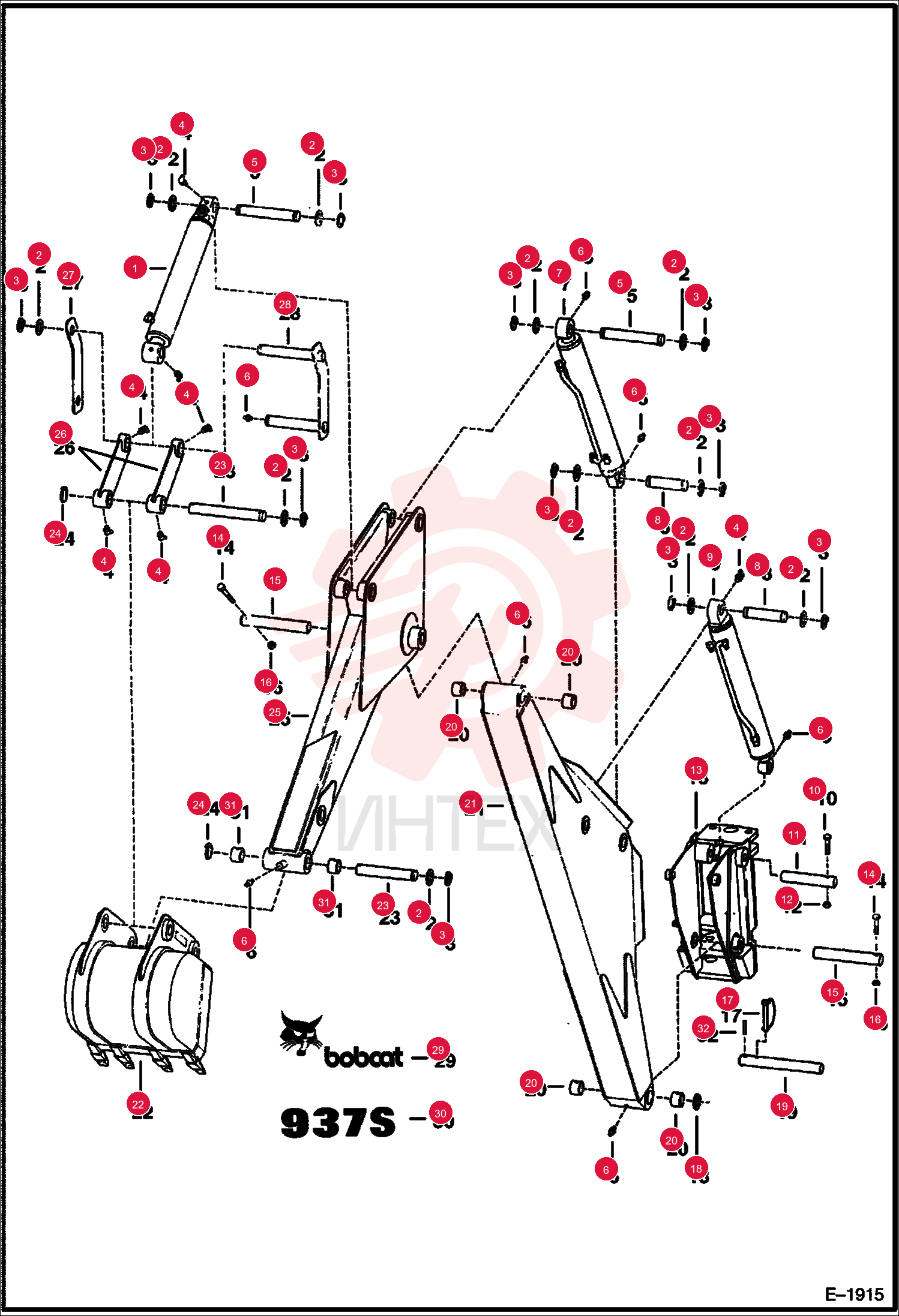

WASHER 5 6584872 (5)

WASHER 5 6584872 (5)

WASHER 5 6584872 (5)

1 6584872

  • 6584872 - WASHER 5

2 6538285

  • 6538285 - SNAP RG 5
  • Was 1305943B

3 12H15

  • 12H15 - FTG GREASE 90

4 6560352

  • 6560352 - PIN

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6560350

  • 6560350 - PIN

7 17C664

  • 17C664 - BOLT

8 6560351

  • 6560351 - PIN

9 81D6

  • 81D6 - NUT

10 17C864

  • 17C864 - BOLT

11 6531534

  • 6531534 - PIN

12 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

13 6510020

  • 6510020 - PIN
  • LOCK

14 6529588

  • 6529588 - WASHER
  • Hardened

15 6593895

  • 6593895 - LOCK
  • BOOM
  • Was 6531439

16 1318541

  • 1318541 - RACE
  • Was 1318514

17 6529781

  • 6529781 - BOOM

18 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

19 6560382

  • 6560382 - PIN
  • LOCK

20 6593828

  • 6593828 - ARM
  • DIPPER

21 6593848

  • 6593848 - LINK

22 6593846

  • 6593846 - LINK

23 6593845

  • 6593845 - LINK
  • W/Pins

24 6808545

  • 6808545 - DECAL
  • Bobcat - R.H. - Was 6557412

25 6808546

  • 6808546 - DECAL
  • Bobcat - L.H. - Was 6557413

26 6531702

  • 6531702 - DECAL
  • 937S

27 6560334

  • 6560334 - BUSHING

28 14J3740

  • 14J3740 - PIN
