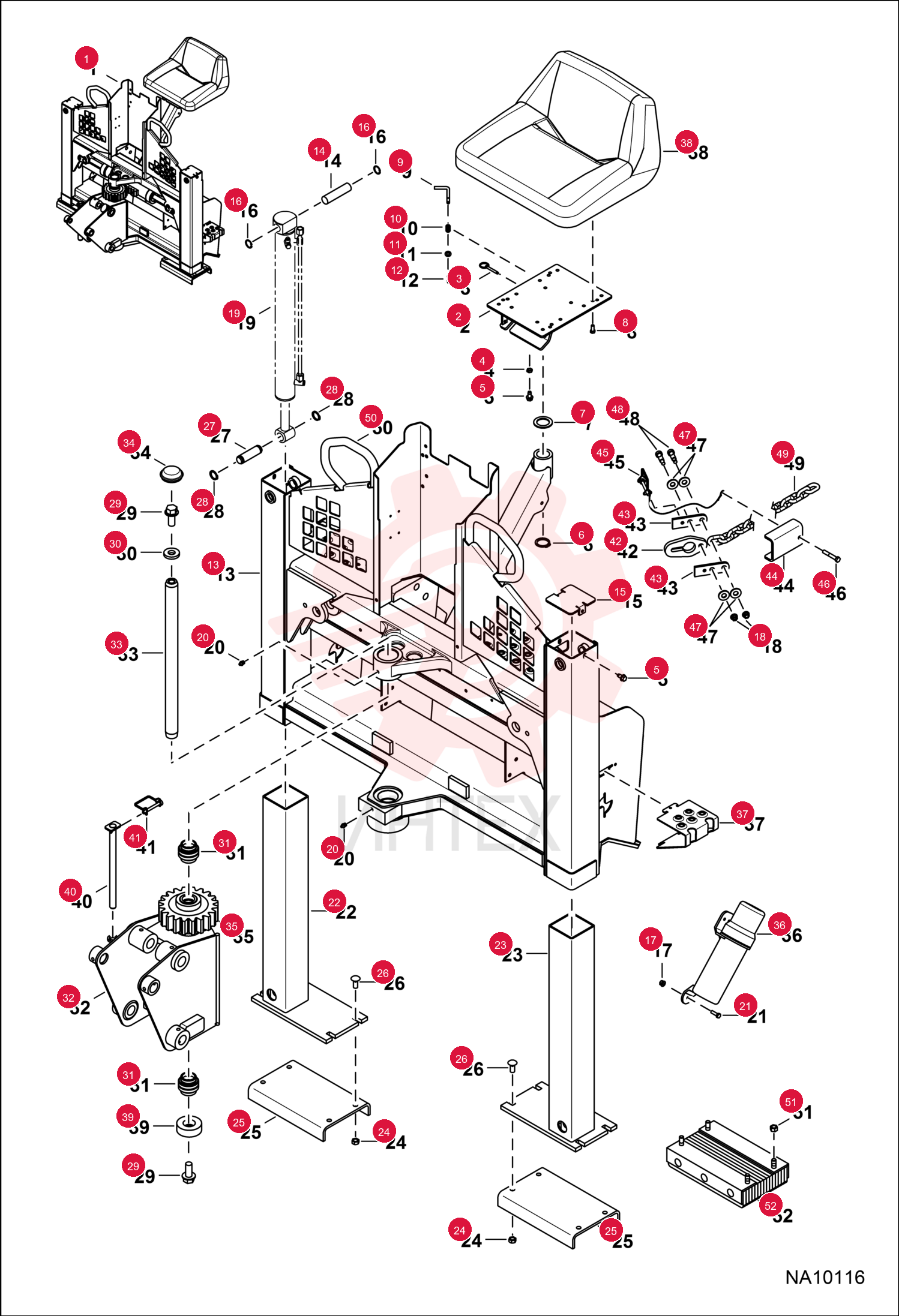

HINGE, MOUNT SWIVEL 6587384 (1)

HINGE, MOUNT SWIVEL 6587384 (1)

HINGE, MOUNT SWIVEL 6587384 (1)

1 6587384

  • 6587384 - HINGE
  • MOUNT SWIVEL

2 6511880

  • 6511880 - PIN

3 7D6

  • 7D6 - NUT

4 84G3712

  • 84G3712 - SCREW THD ROLLING TT

5 22J24

  • 22J24 - RING
  • SNAP

6 6558680

  • 6558680 - SPACER

7 17C512

  • 17C512 - BOLT 5

8 6592836

  • 6592836 - PIN

9 6610082

  • 6610082 - SPRING

10 25E15

  • 25E15 - WASHER FLAT PLAIN

11 1F308

  • 1F308 - PIN
  • COTTER

12 7243312

  • 7243312 - MAIN FRAME

13 6533178

  • 6533178 - PIN
  • 25
  • 4 mm (1.00") dia. x 101
  • 2 mm (4.00") long

14 6533029

  • 6533029 - CAP

15 23J16

  • 23J16 - SNAP RING

16 83D5

  • 83D5 - LKNUT HEX FLG GR8

17 89D6

  • 89D6 - NUT

18 10H25

  • 10H25 - FTG GREASE STRAIGHT

19 17C514

  • 17C514 - BOLT

20 6532680

  • 6532680 - STABILIZER
  • R.H.

21 6533011

  • 6533011 - STABILIZER
  • L.H.

22 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

23 6531990

  • 6531990 - CLEAT

24 37C820

  • 37C820 - BOLT SQ NECK RND HD

25 6560669

  • 6560669 - PIN

26 22J16

  • 22J16 - SNAP RING

27 49C1228

  • 49C1228 - BOLT

28 6534555

  • 6534555 - WASHER

29 6519337

  • 6519337 - BEARING ASSEMBLY

30 6711793

  • 6711793 - FRAME
  • SWING

31 6532635

  • 6532635 - SHAFT

32 6598371

  • 6598371 - CAP

33 6559944

  • 6559944 - GEAR
  • weld on

34 7108147

  • 7108147 - CONTAINER
  • MANUAL
  • W/ 6686517 tube

35 7118021

  • 7118021 - STEP

36 6643253

  • 6643253 - SEAT
  • OPERATOR VINYL
  • W/O adj. track - 184 mm x 178 mm (7.25" x 7.00") hole spacing - Also Order 6714915 decal

37 6532631

  • 6532631 - WASHER

38 6713970

  • 6713970 - PIN
  • boom lock

39 6510020

  • 6510020 - PIN
  • LOCK

40 6714868

  • 6714868 - BRACKET

41 6714869

  • 6714869 - LATCH

42 6714839

  • 6714839 - GUIDE
  • CHAIN

43 6661838

  • 6661838 - PIN
  • HITCH

44 17C636

  • 17C636 - BOLT

45 27E8

  • 27E8 - WASHER 10

46 38C820

  • 38C820 - SCREW

47 6714935

  • 6714935 - CHAIN
  • 1245 mm (55") long - chain only - use only approved .375 inch grade 70 transport chain

48 61D8

  • 61D8 - NUT 5

49 6660164

  • 6660164 - PAD
  • STREET
  • street
