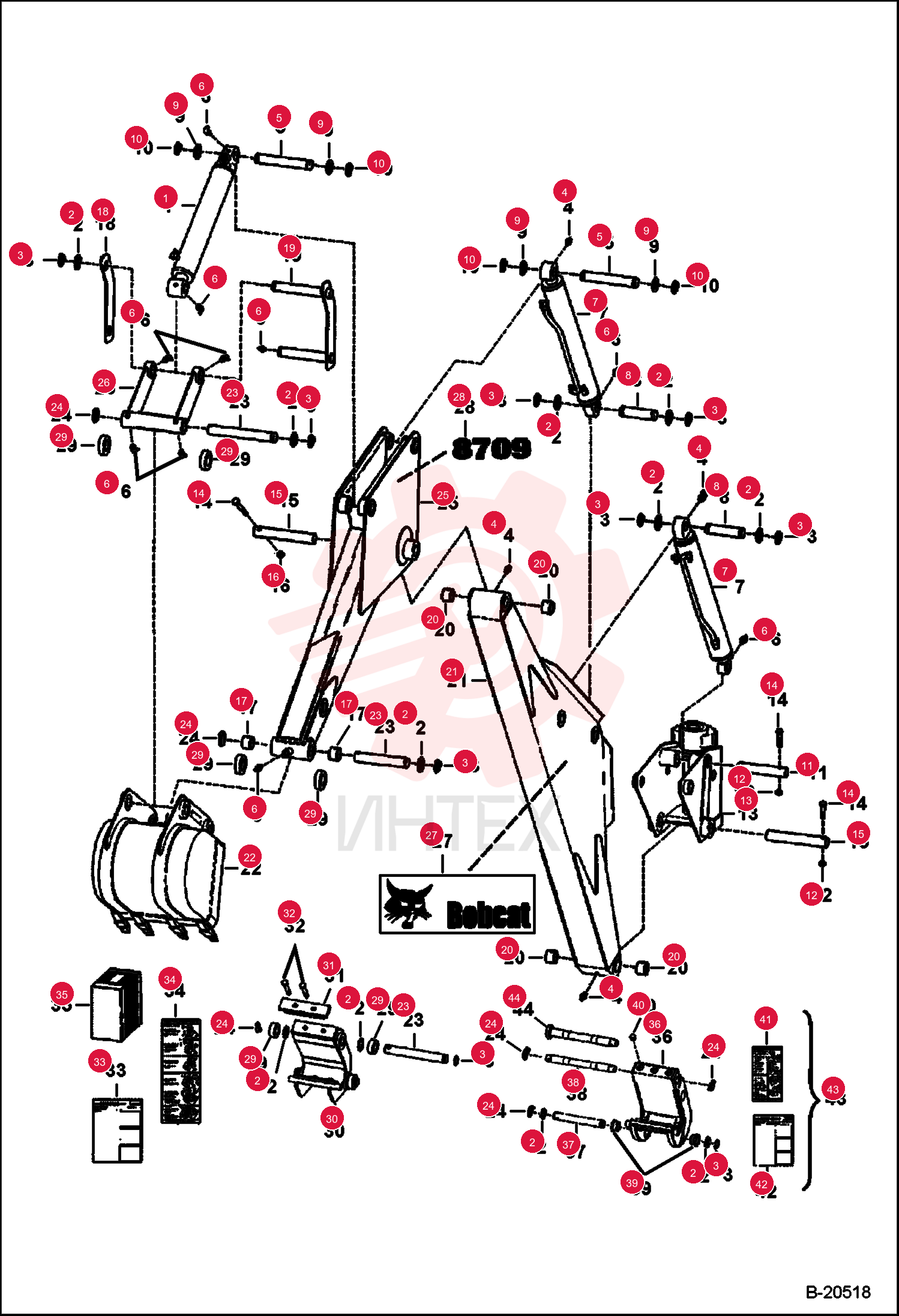

WASHER 5 6584872 (8)

WASHER 5 6584872 (8)

WASHER 5 6584872 (8)

1 6584872

  • 6584872 - WASHER 5

2 22J24

  • 22J24 - RING
  • SNAP
  • Was 6538285

3 12H15

  • 12H15 - FTG GREASE 90

4 6532518

  • 6532518 - PIN

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6532517

  • 6532517 - PIN

7 6532519

  • 6532519 - WASHER

8 22J20

  • 22J20 - SNAP RING
  • Was 6538287

9 6532568

  • 6532568 - PIN

10 81D6

  • 81D6 - NUT

11 17C648

  • 17C648 - SCREW HEX CAP

12 6532522

  • 6532522 - PIN

13 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

14 6560334

  • 6560334 - BUSHING
  • press-in

15 7114802

  • 7114802 - LINK
  • Was 6716262

16 6716263

  • 6716263 - LINK
  • Was 6532528

17 6651171

  • 6651171 - BEARING

18 6532491

  • 6532491 - BOOM
  • DIPPER ARM

19 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

20 6560382

  • 6560382 - PIN
  • LOCK

21 6716256

  • 6716256 - ARM W/A
  • also order qty. 2 of Ref. 29 if using standard buckets - Was 6532583

22 6716264

  • 6716264 - LINK
  • BUCKET MACHINED
  • also order qty. 2 of Ref. 29 if using standard buckets - Was 6537182

23 6808545

  • 6808545 - DECAL
  • Bobcat - R.H. - Was 6557412

24 6808546

  • 6808546 - DECAL
  • bobcat - L.H. - Was 6557413

25 6589137

  • 6589137 - DECAL
  • 8709

26 6716402

  • 6716402 - SPACER

27 6714921

  • 6714921 - FRAME
  • X-Change

28 6804485

  • 6804485 - PLATE
  • BOLT-ON

29 17C1052

  • 17C1052 - BOLT

30 6900862

  • 6900862 - INSTRUCTIONS

31 6806121

  • 6806121 - DECAL
  • bolt-on X-Change

32 7102949

  • 7102949 - FRAME
  • pin-on X-change

33 7103010

  • 7103010 - PIN
  • BUCKET
  • bucket

34 7137214

  • 7137214 - PIN

35 7103005

  • 7103005 - BUSHING

36 24K6

  • 24K6 - PLUG HYDR ORING BOSS

37 6818059

  • 6818059 - DECAL
  • using X-change

38 6903304

  • 6903304 - INSTRUCTIONS
  • - for Ref. 43 kit

39 7108080

  • 7108080 - KIT
  • PIN ON X-CHANGE
  • pin-on X-change - W/Ref. 2
  • 3
  • 24
  • 36-42
