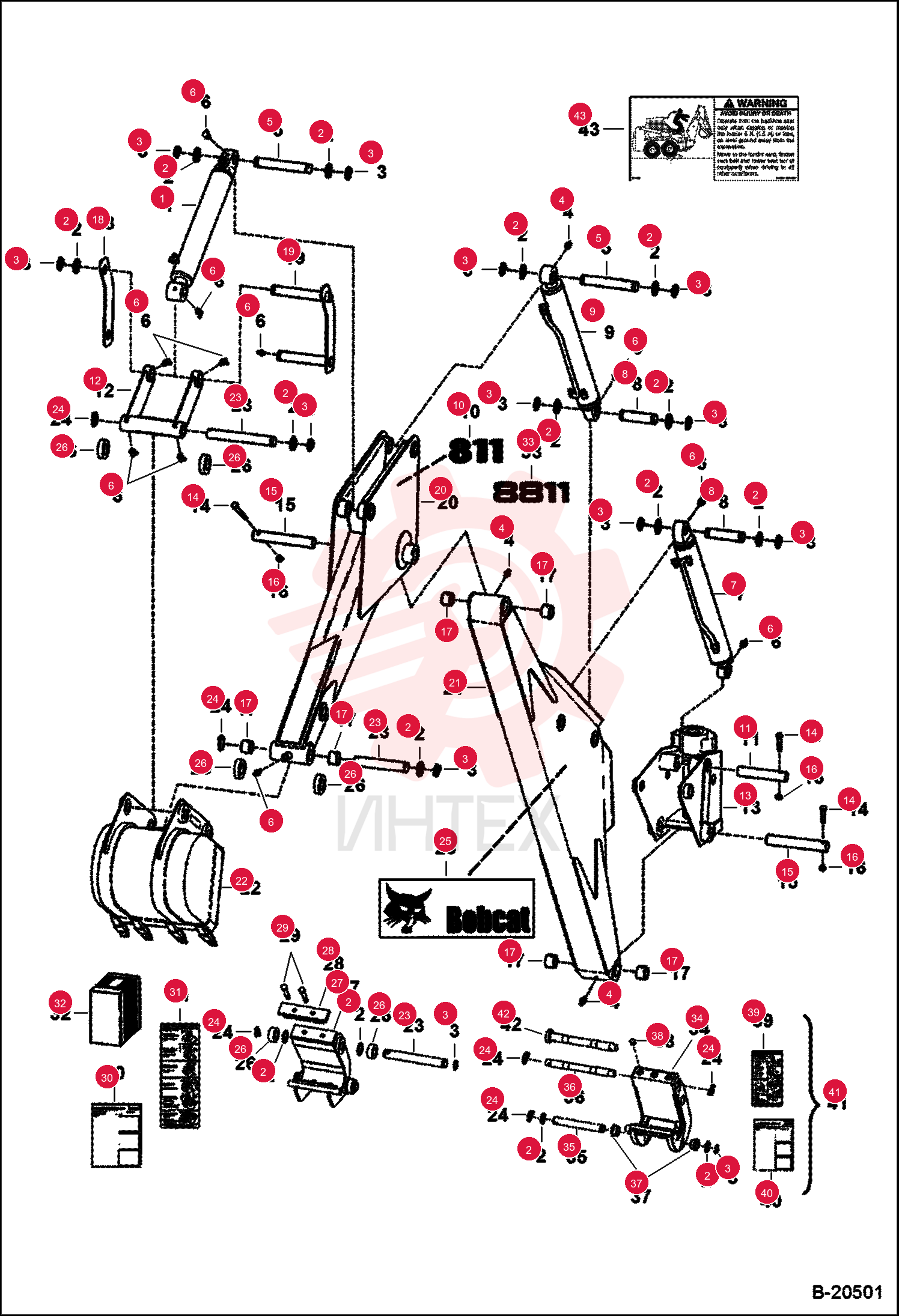

WASHER 5 6584872 (7)

WASHER 5 6584872 (7)

WASHER 5 6584872 (7)

1 6584872

  • 6584872 - WASHER 5
  • Was 7136272

2 22J24

  • 22J24 - RING
  • SNAP
  • Was 6538285

3 12H15

  • 12H15 - FTG GREASE 90

4 6560349

  • 6560349 - PIN

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6560350

  • 6560350 - PIN

7 6535261

  • 6535261 - DECAL
  • 811

8 6560351

  • 6560351 - PIN

9 6716264

  • 6716264 - LINK
  • BUCKET MACHINED
  • 6" wide - Also Order qty. 2 of Ref. 26 if using standard buckets

10 6806093

  • 6806093 - FRAME
  • SWING
  • Was 6533297

11 17C648

  • 17C648 - SCREW HEX CAP

12 6533340

  • 6533340 - PIN

13 89D6

  • 89D6 - NUT
  • Was 85D6

14 6560334

  • 6560334 - BUSHING
  • press-in

15 7114802

  • 7114802 - LINK
  • Was 6716262

16 6716263

  • 6716263 - LINK
  • Was 6532528

17 6716257

  • 6716257 - ARM
  • 6" wide - Also Order qty. (2) of Ref. 26 if using standard buckets

18 6533283

  • 6533283 - BOOM

19 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

20 6631038

  • 6631038 - PIN
  • SNAP
  • ring lock - 47
  • 6 mm (1.875") dia.

21 6560382

  • 6560382 - PIN
  • LOCK
  • ring lock - 41
  • 3 mm (1.625") dia.

22 6815489

  • 6815489 - DECAL
  • LOGO BOBCAT AND HEAD
  • 402 mm (15.81") long - Used on both sides

23 6808546

  • 6808546 - DECAL
  • bobcat - L.H. - Was 6557413

24 6808545

  • 6808545 - DECAL
  • bobcat - R.H. - Was 6557412

25 6716402

  • 6716402 - SPACER

26 6714921

  • 6714921 - FRAME
  • bolt-on X-Change - Use W/ 6" wide Ref. 20 (arm) & 6" wide Ref. 12 (hook)

27 6804485

  • 6804485 - PLATE
  • BOLT-ON

28 17C1052

  • 17C1052 - BOLT

29 6900862

  • 6900862 - INSTRUCTIONS
  • - for Ref. 32 kit

30 6806121

  • 6806121 - DECAL
  • bolt-on X-Change

31 6812675

  • 6812675 - DECAL
  • 8811

32 7102949

  • 7102949 - FRAME
  • pin-on X-change - Use W/ 6" wide Ref. 20 (arm) & 6" wide Ref. 12 (hook)

33 7103010

  • 7103010 - PIN
  • BUCKET
  • bucket

34 7137214

  • 7137214 - PIN

35 7103005

  • 7103005 - BUSHING

36 24K6

  • 24K6 - PLUG HYDR ORING BOSS

37 6818059

  • 6818059 - DECAL
  • using X-change

38 6903304

  • 6903304 - INSTRUCTIONS
  • - for Ref. 41 kit

39 7108080

  • 7108080 - KIT
  • PIN ON X-CHANGE
  • pin-on X-change - Ref. 2
  • 3
  • 24
  • 34-40 - Use W/ 6" wide Ref. 20 (arm) & 6" wide Ref. 12 (hook)

40 6596591

  • 6596591 - DECAL
  • warning
