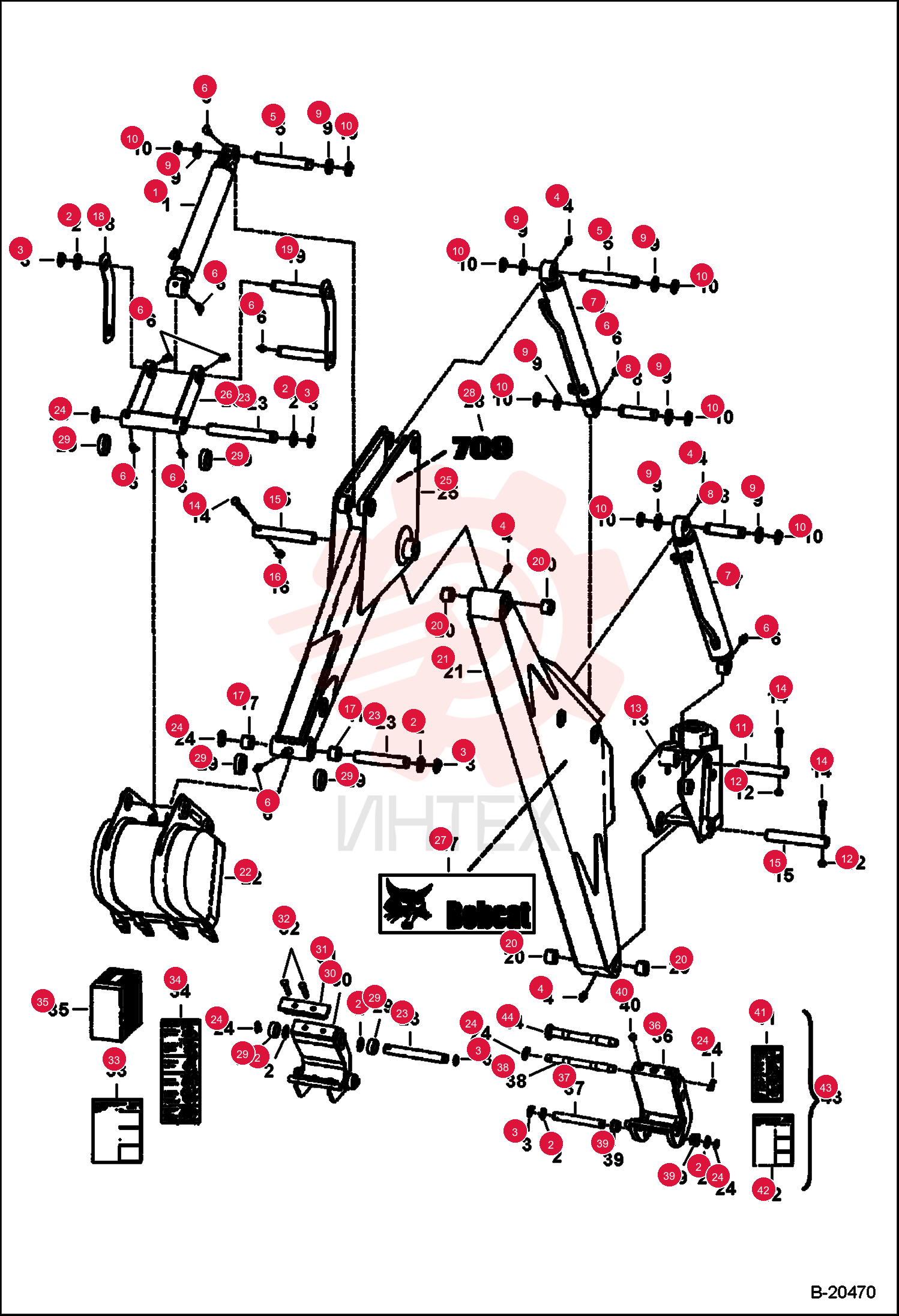

WASHER 5 6584872 (6)

WASHER 5 6584872 (6)

WASHER 5 6584872 (6)

1 6584872

  • 6584872 - WASHER 5
  • Was 7136272

2 22J24

  • 22J24 - RING
  • SNAP
  • Was 6538285

3 12H15

  • 12H15 - FTG GREASE 90

4 6532518

  • 6532518 - PIN

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6532517

  • 6532517 - PIN

7 6532519

  • 6532519 - WASHER

8 22J20

  • 22J20 - SNAP RING
  • Was 6538287

9 6532568

  • 6532568 - PIN

10 81D6

  • 81D6 - NUT

11 17C648

  • 17C648 - SCREW HEX CAP

12 6532522

  • 6532522 - PIN

13 89D6

  • 89D6 - NUT
  • Was 85D6

14 6560334

  • 6560334 - BUSHING
  • press-in

15 7114802

  • 7114802 - LINK
  • Was 6716262

16 6716263

  • 6716263 - LINK
  • Was 6532528

17 6651171

  • 6651171 - BEARING

18 6532491

  • 6532491 - BOOM
  • DIPPER ARM

19 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

20 6560382

  • 6560382 - PIN
  • LOCK

21 6716256

  • 6716256 - ARM W/A
  • 6" wide - Also Order (2) of Ref. 29 if using a standard bucket

22 6716264

  • 6716264 - LINK
  • BUCKET MACHINED
  • 6" wide - Also Order (2) of Ref. 29 if using a standard bucket

23 6815489

  • 6815489 - DECAL
  • LOGO BOBCAT AND HEAD
  • 402 mm (15.81") long - Used on both sides

24 6808545

  • 6808545 - DECAL
  • bobcat - R.H. - Was 6557412

25 6808546

  • 6808546 - DECAL
  • bobcat - L.H. - Was 6557413

26 6535260

  • 6535260 - DECAL
  • 709

27 6716402

  • 6716402 - SPACER
  • 1"

28 6714921

  • 6714921 - FRAME
  • bolt-on X-Change - Use W/ 6" wide Ref. 25 (dipperstick) & 6" wide Ref. 26 (hook)

29 6804485

  • 6804485 - PLATE
  • BOLT-ON

30 17C1052

  • 17C1052 - BOLT

31 6900862

  • 6900862 - INSTRUCTIONS
  • - for Ref. 32 kit

32 6806121

  • 6806121 - DECAL
  • bolt-on X-Change

33 7102949

  • 7102949 - FRAME
  • pin-on X-change - Use W/ 6" wide Ref. 25 (dipperstick) & 6" wide Ref. 26 (hook)

34 7103010

  • 7103010 - PIN
  • BUCKET

35 7137214

  • 7137214 - PIN

36 7103005

  • 7103005 - BUSHING

37 24K6

  • 24K6 - PLUG HYDR ORING BOSS

38 6818059

  • 6818059 - DECAL
  • using X-change

39 6903304

  • 6903304 - INSTRUCTIONS
  • - for Ref. 43 kit

40 7108080

  • 7108080 - KIT
  • PIN ON X-CHANGE
  • pin-on X-change - W/Ref. 2
  • 3
  • 24
  • 36-42 - Use W/ 6" wide Ref. 25 (dipperstick) & 6" wide Ref. 26 (hook)
