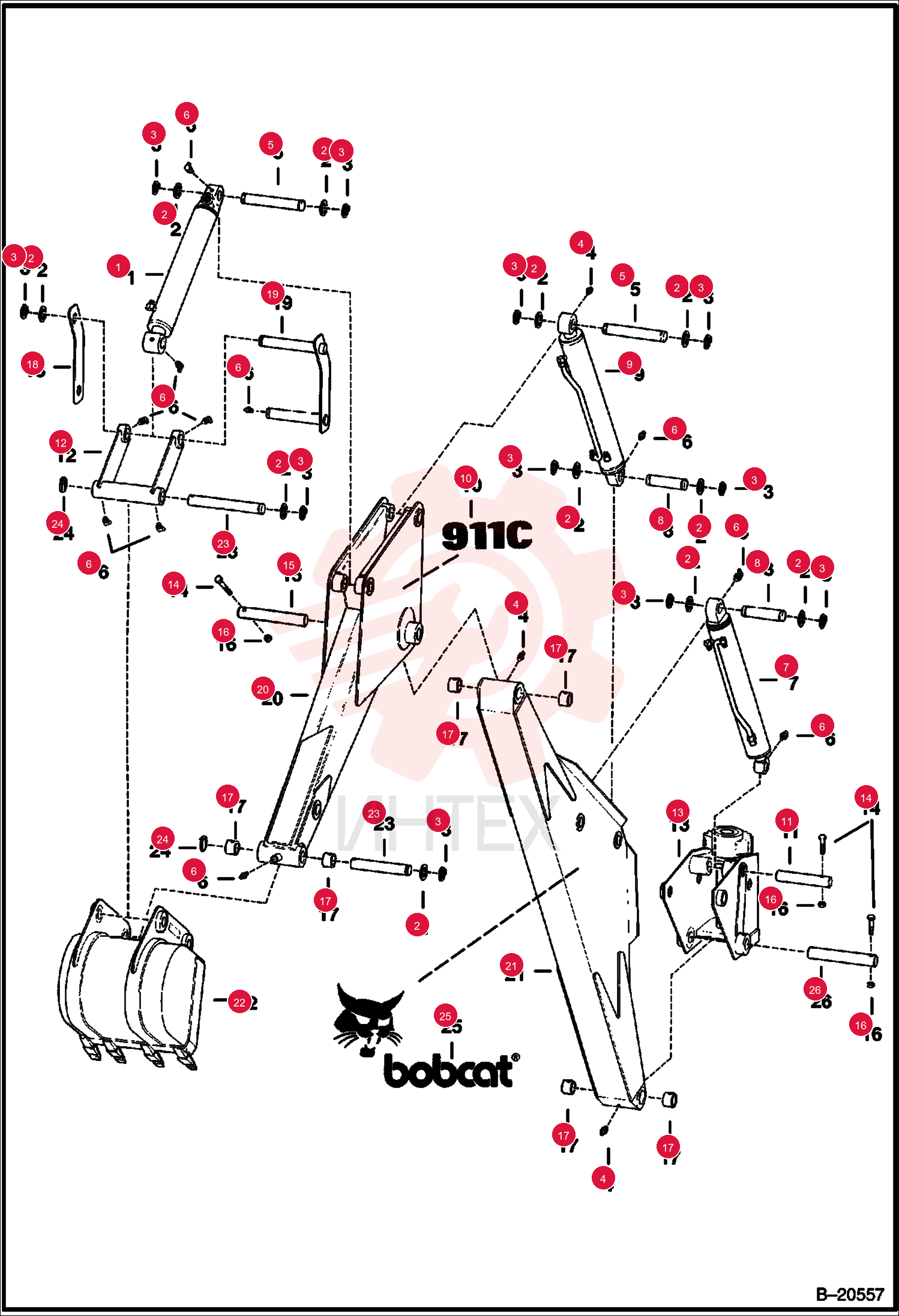

WASHER 5 6584872 (9)

WASHER 5 6584872 (9)

WASHER 5 6584872 (9)

1 6584872

  • 6584872 - WASHER 5

2 22J24

  • 22J24 - RING
  • SNAP
  • Was 6538285

3 12H15

  • 12H15 - FTG GREASE 90

4 6560349

  • 6560349 - PIN

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6560350

  • 6560350 - PIN

7 6587954

  • 6587954 - DECAL
  • 911C

8 6560351

  • 6560351 - PIN

9 6537182

  • 6537182 - LINK

10 17C648

  • 17C648 - SCREW HEX CAP

11 6533340

  • 6533340 - PIN

12 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

13 6560334

  • 6560334 - BUSHING

14 6532530

  • 6532530 - LINK

15 6532528

  • 6532528 - LINK/PINS

16 6533346

  • 6533346 - DIPSTICK

17 6533283

  • 6533283 - BOOM

18 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

19 6631038

  • 6631038 - PIN
  • SNAP
  • ring lock - 1.875" (47
  • 6 mm) dia.

20 6560382

  • 6560382 - PIN
  • LOCK
  • ring lock - 1.625" (41
  • 3 mm) dia.

21 6808545

  • 6808545 - DECAL
  • bobcat - R.H. - Was 6557412

22 6808546

  • 6808546 - DECAL
  • bobcat - L.H. - Was 6557413

23 6588127

  • 6588127 - PIN
