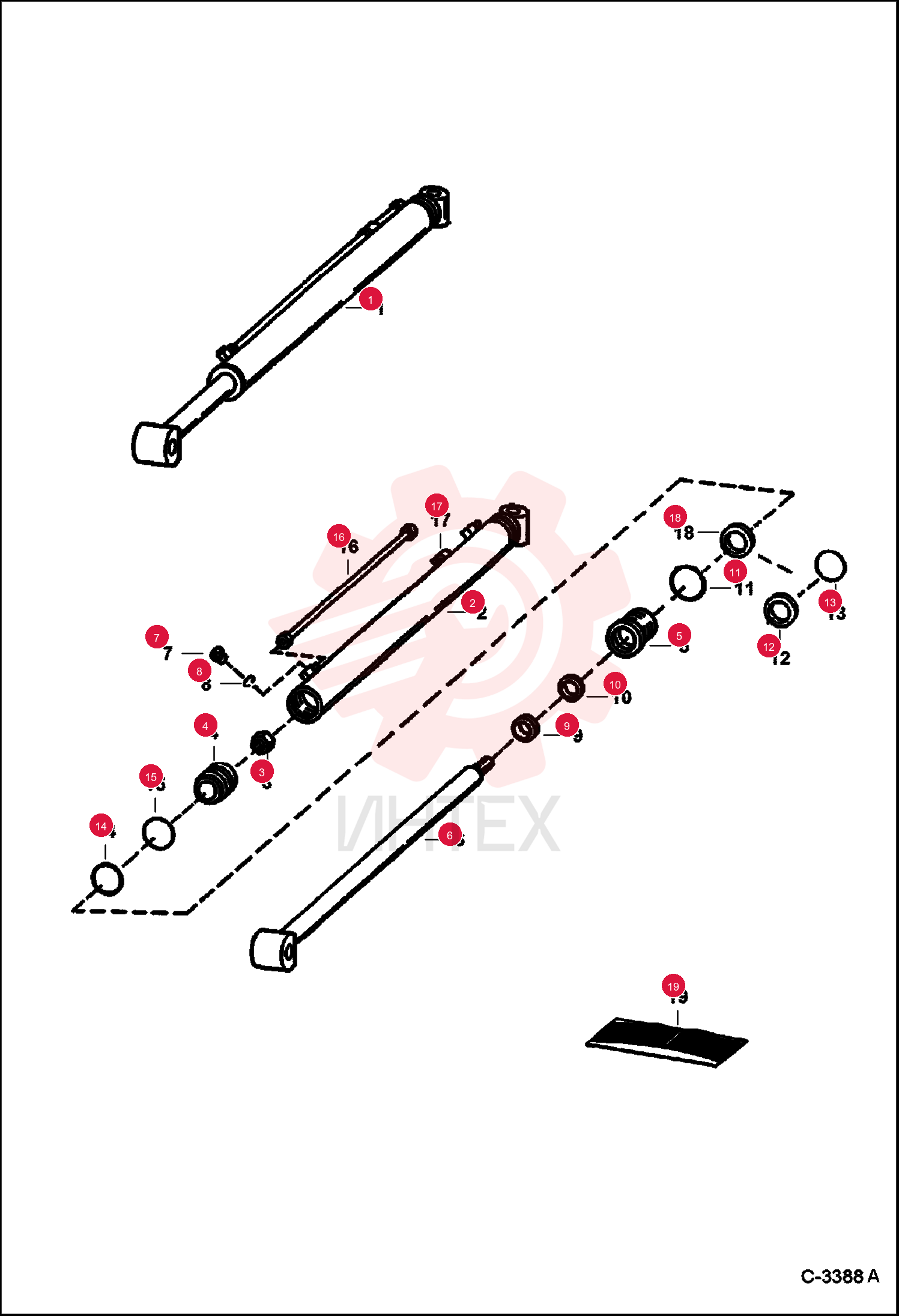

CYLINDER 6589431 (4)
1 6589431
- 6589431 - CYLINDER
- Ref. 2-15 & 17
2 6589432
- 6589432 - CASE
- .83" min. full thread
3 92D12
- 92D12 - NUT 5
- Was 86D000012B
4 6661694
- 6661694 - PISTON
- W/Ref. 14 & 15 - W/non-replaceable wear sleeves - Was 6535289
5 6538595
- 6538595 - HEAD
- CYL HYD
- Was 6504933
6 6532707
- 6532707 - SHAFT
7 90KV2
- 90KV2 - PLUG
- W/Ref. 8 - tapered boss face
8 95K3
- 95K3 - O'RING
- for tapered boss face
9 79K3
- 79K3 - O RING 10
- for flat boss face
10 6666542
- 6666542 - WIPER
- ROD CYL
- Was 1657083B
11 6667323
- 6667323 - SEAL
- Was 6704232
12 82K136
- 82K136 - O-RING
- Was 58K136
13 73K224
- 73K224 - O-RING
- Was NSS
14 54K40124
- 54K40124 - O-RING
- Was 25K040124B
15 54K30118
- 54K30118 - O-RING
- Was 25K030118B
16 6516231
- 6516231 - SEAL
- Was NSS
17 6537076
- 6537076 - TUBE
18 6690910
- 6690910 - CLAMP
19 7137771
- 7137771 - SEAL KIT
- Ref. 3 & 9-15 - Was 6803472
