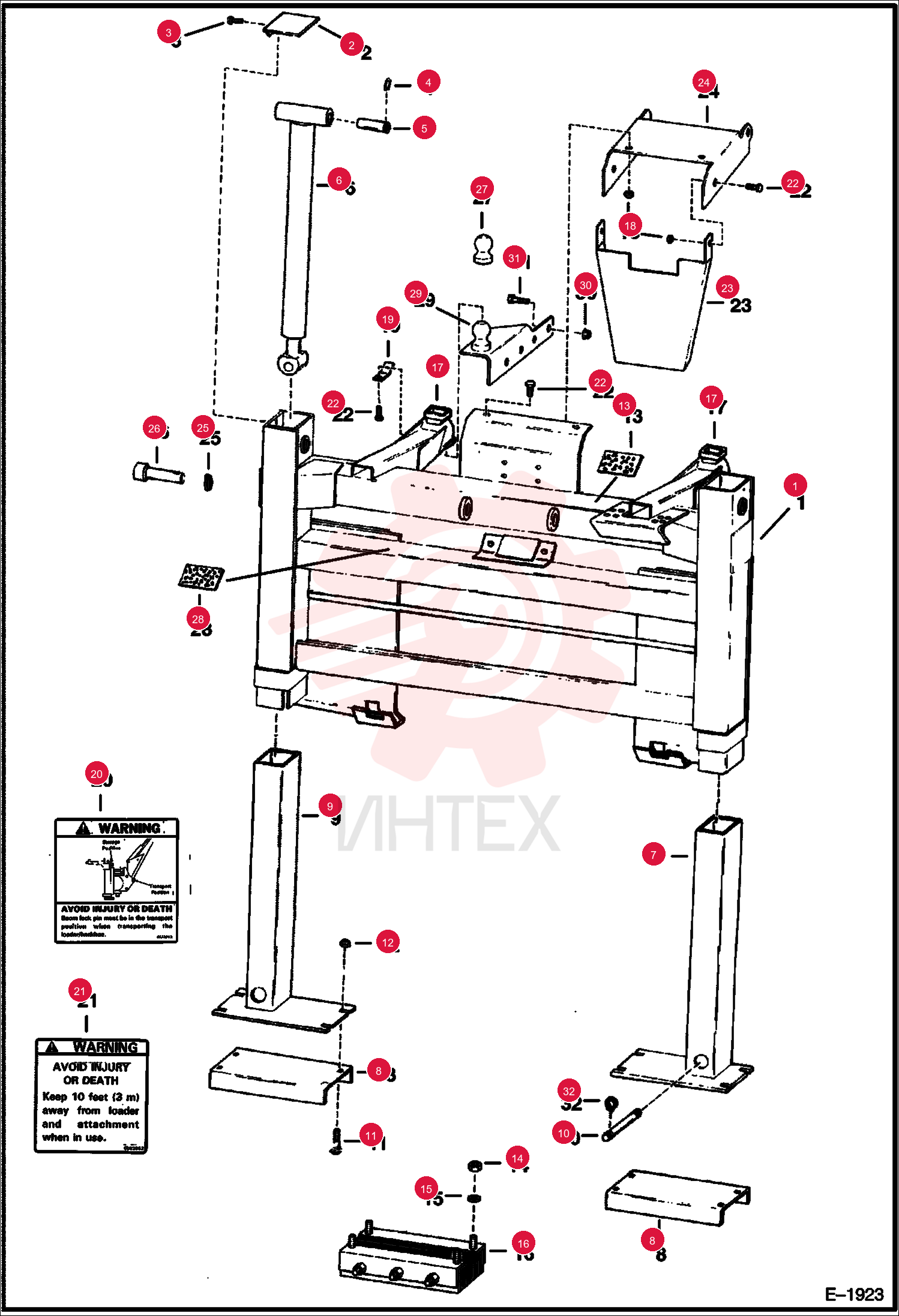

MAIN FRAME 6589975 (2)

MAIN FRAME 6589975 (2)

MAIN FRAME 6589975 (2)

1 6589975

  • 6589975 - MAIN FRAME
  • 923S - Was 6531972

2 84G3710

  • 84G3710 - SCREW

3 23J16

  • 23J16 - SNAP RING
  • Was 662770B

4 6560668

  • 6560668 - PIN

5 6806441

  • 6806441 - STABILIZER
  • L.H. - Was 6531991

6 6531990

  • 6531990 - CLEAT

7 6806440

  • 6806440 - STABILIZER
  • R.H. - Was 6531996

8 6560669

  • 6560669 - PIN

9 37C820

  • 37C820 - BOLT SQ NECK RND HD
  • Was 6560578

10 55D8

  • 55D8 - NUT

11 6553976

  • 6553976 - TREAD
  • SAFETY
  • 127 x 203 mm (5 x 8")

12 61D8

  • 61D8 - NUT 5

13 25E22

  • 25E22 - WASHER

14 6660164

  • 6660164 - PAD
  • STREET

15 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

16 6533213

  • 6533213 - DECAL
  • Transport Warning

17 6583862

  • 6583862 - DECAL
  • WARNING
  • stabilizers - Was 6562922

18 17C816

  • 17C816 - BOLT

19 6533062

  • 6533062 - CHANNEL
  • 923SA

20 6533086

  • 6533086 - CHANNEL
  • 923S

21 6532785

  • 6532785 - CHANNEL

22 6560382

  • 6560382 - PIN
  • LOCK

23 6531241

  • 6531241 - PIN
  • Boom Lock

24 6561941

  • 6561941 - BALL LTCH

25 6532695

  • 6532695 - TREAD
  • SAFETY
  • Use only on 1996 and Older Models

26 6561943

  • 6561943 - MNT RH
  • R.H. W/BALL - Ref. 3

27 6561942

  • 6561942 - MNT LH
  • L.H. W/Ball

28 83D10

  • 83D10 - NUT 5

29 31C1028

  • 31C1028 - BOLT 5

30 22J16

  • 22J16 - SNAP RING
  • Was 1320431B
