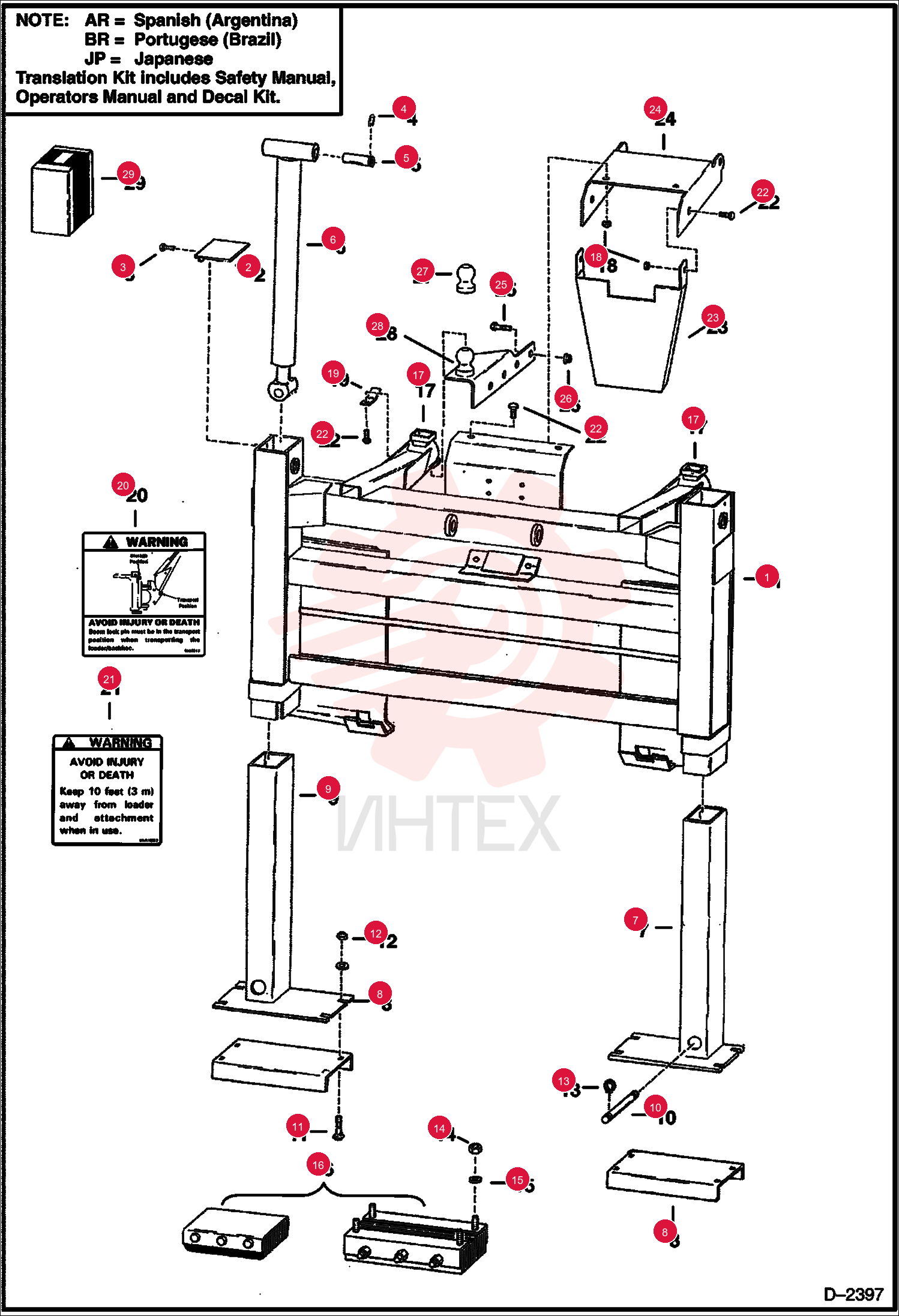

MAIN FRAME 6589975 (1)

MAIN FRAME 6589975 (1)

MAIN FRAME 6589975 (1)

1 6589975

  • 6589975 - MAIN FRAME

2 84G3710

  • 84G3710 - SCREW

3 23J16

  • 23J16 - SNAP RING
  • Was 662770B

4 6560668

  • 6560668 - PIN

5 6806441

  • 6806441 - STABILIZER
  • L.H. - Was 6531991

6 6531990

  • 6531990 - CLEAT

7 6806440

  • 6806440 - STABILIZER
  • R.H. - Was 6531996

8 6560669

  • 6560669 - PIN

9 37C820

  • 37C820 - BOLT SQ NECK RND HD

10 55D8

  • 55D8 - NUT

11 22J16

  • 22J16 - SNAP RING
  • Was 1320431B

12 61D8

  • 61D8 - NUT 5

13 25E22

  • 25E22 - WASHER

14 6632446

  • 6632446 - STREETPAD
  • Street - Weld 0n

15 6660164

  • 6660164 - PAD
  • STREET
  • Street - Bolt on

16 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

17 6533215

  • 6533215 - DECAL
  • WARNING
  • Transport Warning

18 6583862

  • 6583862 - DECAL
  • WARNING
  • Was 6562922

19 17C816

  • 17C816 - BOLT
  • Was 17C812

20 6533086

  • 6533086 - CHANNEL

21 6532785

  • 6532785 - CHANNEL

22 31C1028

  • 31C1028 - BOLT 5

23 83D10

  • 83D10 - NUT 5

24 6539094

  • 6539094 - BALL

25 6718721BR

  • 6718721BR - KIT
  • TRANSLATION
  • Translation - SEE NOTE

26 6718721AR

  • 6718721AR - KIT
  • TRANSLATION
  • Translation - SEE NOTE

27 6718722JP

  • 6718722JP - KIT
  • DECAL
  • Decal - SEE NOTE

28 6718722BR

  • 6718722BR - KIT
  • DECAL
  • Decal - SEE NOTE

29 6718722AR

  • 6718722AR - KIT
  • DECAL
  • Decal - SEE NOTE
