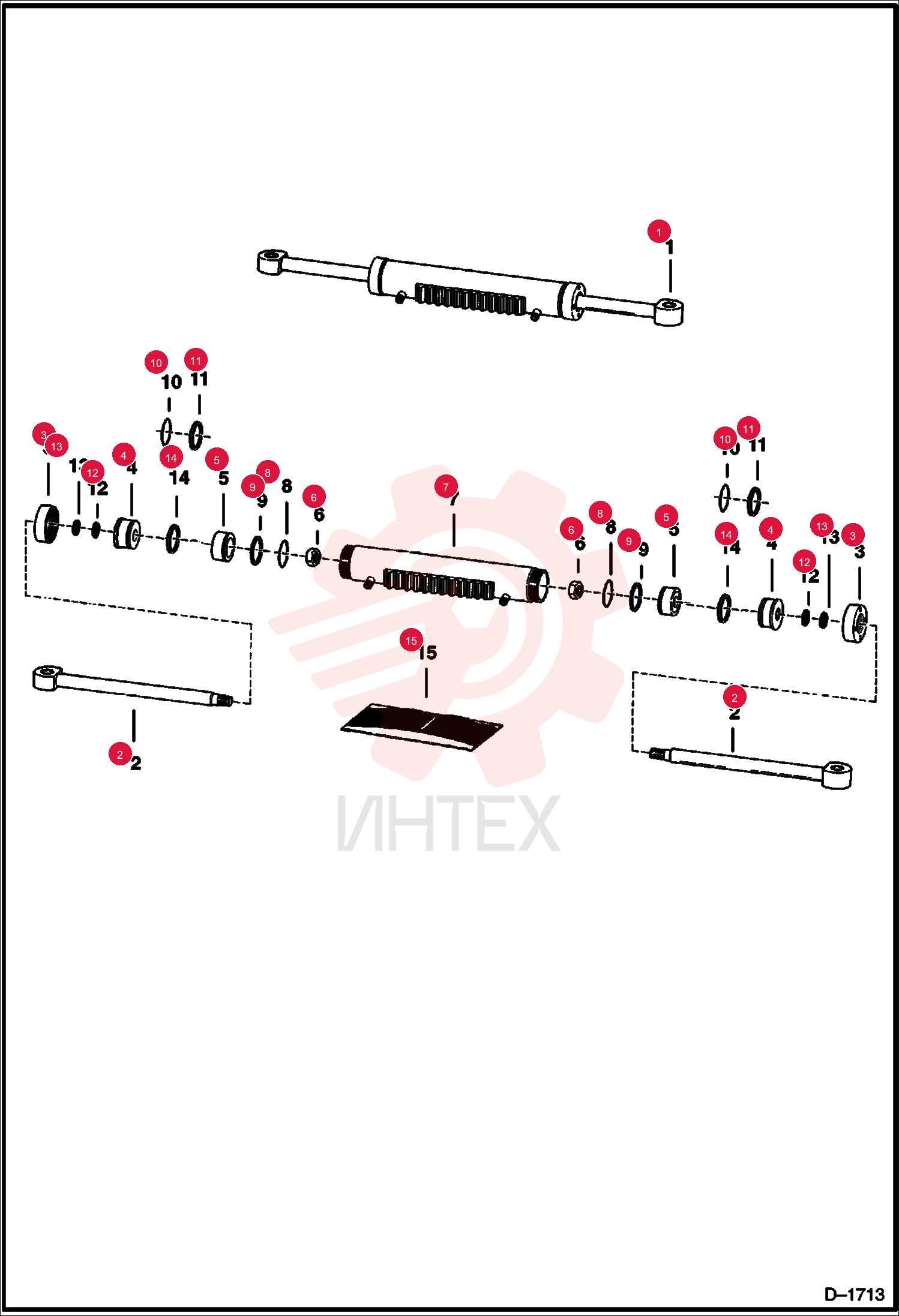

ROD 6593164 (1)

ROD 6593164 (1)

ROD 6593164 (1)

1 6593164

  • 6593164 - ROD

2 6530810

  • 6530810 - CAP

3 6593167

  • 6593167 - HEAD

4 6593168

  • 6593168 - PISTON

5 6810539

  • 6810539 - NUT
  • Was 6804592

6 6530873

  • 6530873 - CASE

7 25K30316

  • 25K30316 - O RING 10
  • Was 54K30316

8 947023

  • 947023 - RING

9 54K60320

  • 54K60320 - O-RING
  • Was 25K60320

10 73K342

  • 73K342 - RING
  • Was 80K342

11 6667326

  • 6667326 - SEAL
  • Was 6538141

12 6690707

  • 6690707 - WIPER
  • ROD CYL
  • Was 6665086

13 7196446

  • 7196446 - KIT
  • SEAL
  • Ref. 6 & 8-13 - Was 7135523
