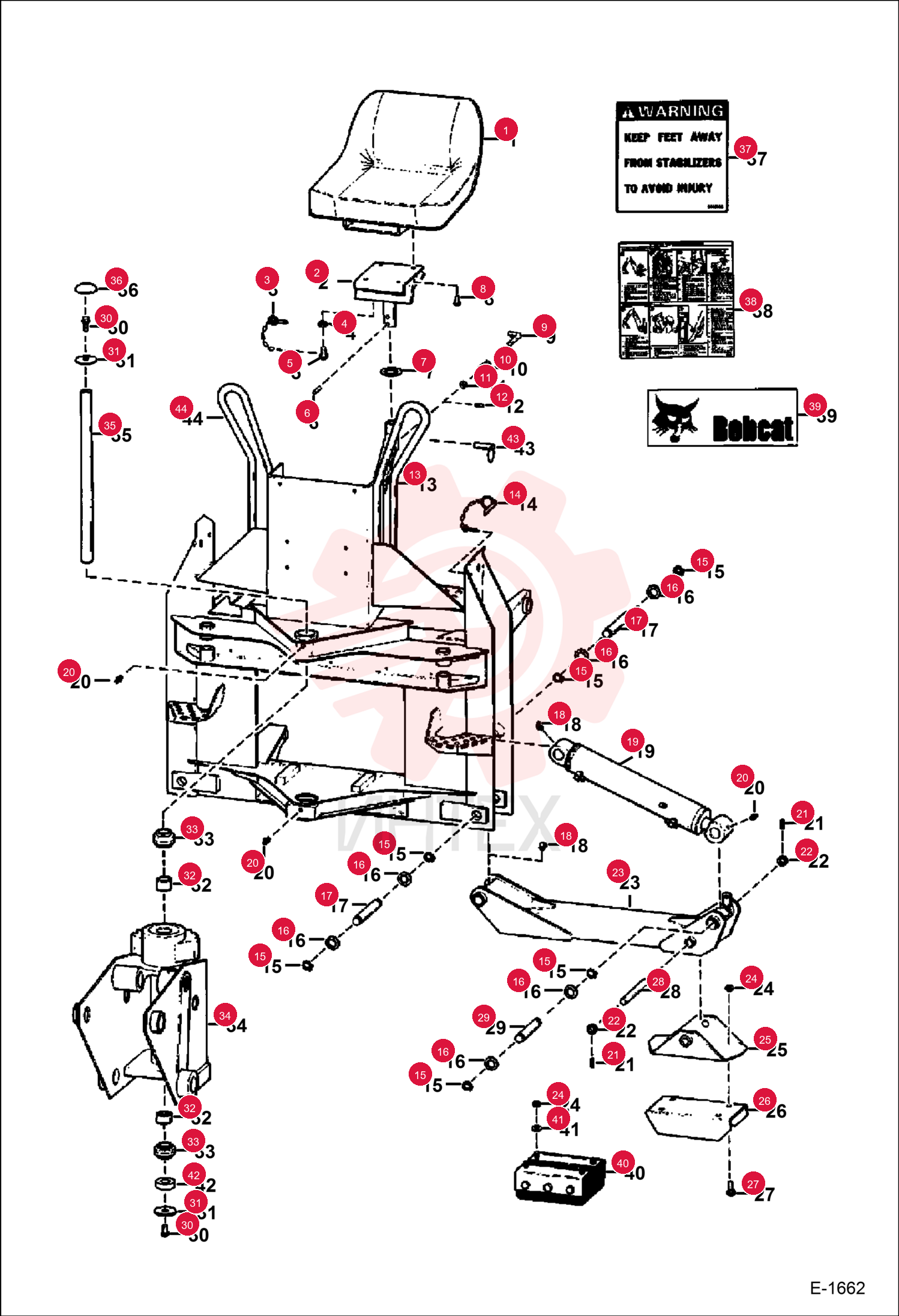

SEAT, OPERATOR VINYL 6643253 (8)
1 6643253
- 6643253 - SEAT
- OPERATOR VINYL
- Use W/6587384 - Ref. 2
2 6532792
- 6532792 - MOUNT
- 9-1/2" x 9-1/2" mounting plate
3 6587384
- 6587384 - HINGE
- MOUNT SWIVEL
- Use W/6643253 seat - Ref. 1
4 6511880
- 6511880 - PIN
5 7D6
- 7D6 - NUT
6 84G3712
- 84G3712 - SCREW THD ROLLING TT
7 14J3740
- 14J3740 - PIN
- Use W/6532792 mount
8 6558680
- 6558680 - SPACER
9 85D5
- 85D5 - NUT PRETRQ HEX LOCK
10 6592836
- 6592836 - PIN
11 6610082
- 6610082 - SPRING
12 25E15
- 25E15 - WASHER FLAT PLAIN
13 1F308
- 1F308 - PIN
- COTTER
14 6631038
- 6631038 - PIN
- SNAP
- W/chain
15 22J24
- 22J24 - RING
- SNAP
- Was 6538285
16 6584872
- 6584872 - WASHER 5
17 6560349
- 6560349 - PIN
18 12H15
- 12H15 - FTG GREASE 90
19 10H25
- 10H25 - FTG GREASE STRAIGHT
20 14J3724
- 14J3724 - PIN
21 6593949
- 6593949 - BUSHING
22 6594150
- 6594150 - STABLIZER
23 85D8
- 85D8 - NUT PRETRQ HEX LOCK
24 6593909
- 6593909 - PAD
- STABL
25 37C820
- 37C820 - BOLT SQ NECK RND HD
- Was 6560578
26 6593908
- 6593908 - PIN
27 6560352
- 6560352 - PIN
28 31C1228
- 31C1228 - BOLT
29 6593892
- 6593892 - WASHER
30 225683
- 225683 - RACE
31 6511242
- 6511242 - BEARING
32 6587745
- 6587745 - SWING ASSEMBLY
- swing - W/Ref. 32
33 6587952
- 6587952 - SHAFT
34 6583862
- 6583862 - DECAL
- WARNING
- Was 6562922
35 6593804
- 6593804 - DECAL
- mounting instructions
36 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- Was 6714353
37 6632445
- 6632445 - PAD
- STREET ASSY
- street
38 25E21
- 25E21 - WASHER FLAT PLAIN
39 6532631
- 6532631 - WASHER
40 6538285
- 6538285 - SNAP RG 5
41 6560876
- 6560876 - TUBE
- handrail - weld on
