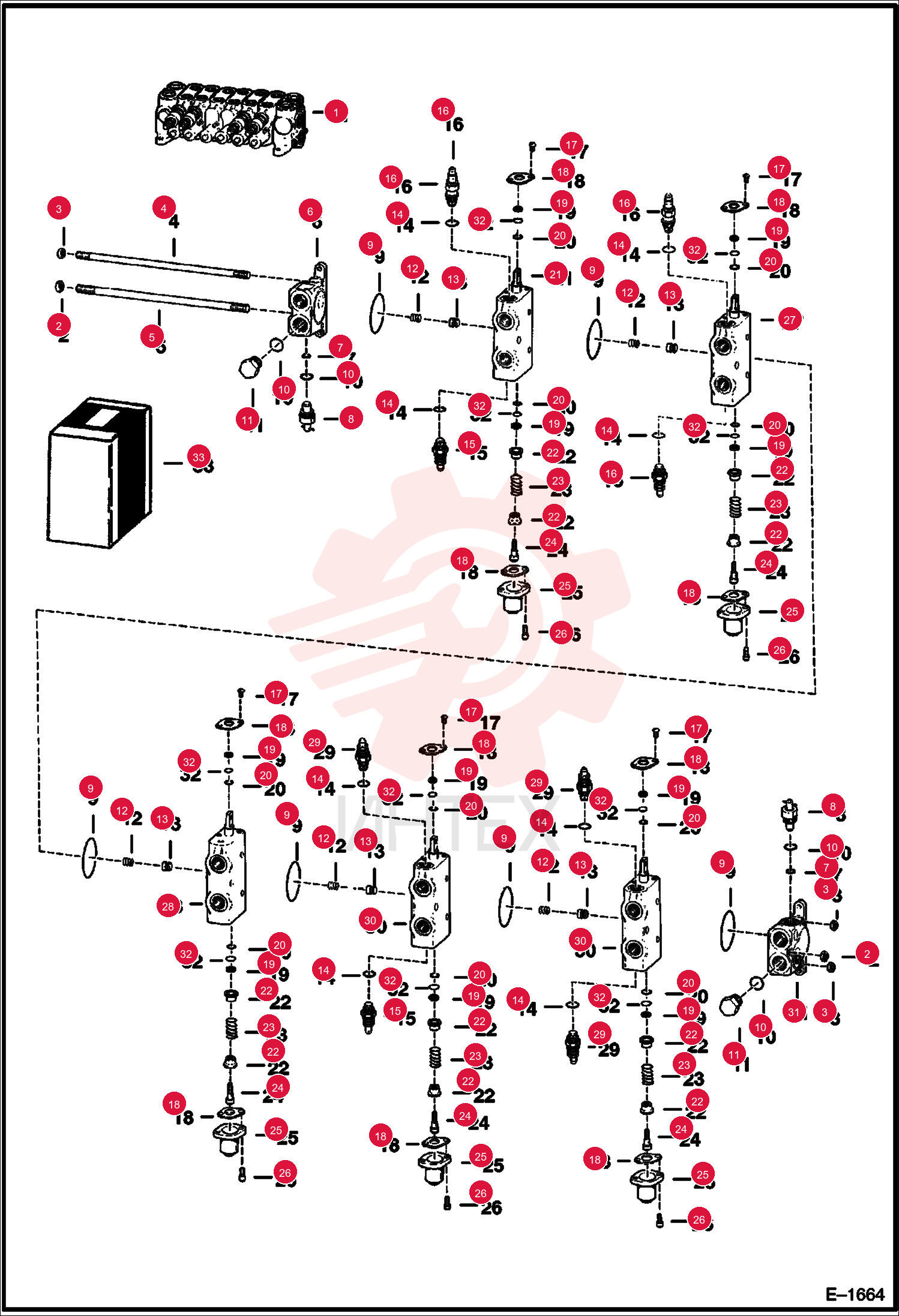

VALVE 6644978
1 6644978
- 6644978 - VALVE
- W/Ref. 2-31 - Was 6529398
2 62D6
- 62D6 - NUT HEX FINISHED GR5
3 61D5
- 61D5 - NUT HEX FINISHED GR5
4 6514391
- 6514391 - TIE BOLT
5 6514392
- 6514392 - TIE BOLT
6 6631632
- 6631632 - OUTLETSEC
- outlet
7 945193
- 945193 - PLUG
- W/Ref. 7 & 10 - Was 6649667
8 6646691
- 6646691 - O-RING
- Was 25K040208B
9 79K10
- 79K10 - O RING 10
10 24K7
- 24K7 - PLUG
- W/Ref. 10 - Was 6631633
11 6630966
- 6630966 - SPRING
12 6630965
- 6630965 - POPPET
13 961240
- 961240 - O-RING
14 6646680
- 6646680 - VALVE
- RELIEF
- 3500 PSI - Was 966134
15 6631645
- 6631645 - VALVE
- RELIEF
- 2500 PSI
16 948016
- 948016 - PLATE
17 6646684
- 6646684 - SECT.SPOL
- W/O Ref. 15 & 16 - W/Ref. 9
- 12
- 13
- 17-20
- 22-26 & 32 - Was 6631631
18 948017
- 948017 - SEAT
- spring
19 948018
- 948018 - SPRING
20 948191
- 948191 - CAPSCREW
- spool
21 948192
- 948192 - CAP
22 73G412
- 73G412 - SCREW
- Was 11G-412
23 6646685
- 6646685 - SECT.SPOL
- swing - W/Ref. 9
- 12
- 13
- 17 - 20
- 22-26 & 32 - W/O Ref. 16 - Was 6633057
24 6646679
- 6646679 - VALVE
- RELIEF
- 3000 PSI - Was 966133
25 6631627
- 6631627 - SECTION
- VALVE INLET
- inlet - W/Ref. 9 - Was 6646681
26 6630960
- 6630960 - SEAL KIT
- for Ref. 16
27 6646695
- 6646695 - SEAL KIT
- for Ref. 15 & 29
28 6646698
- 6646698 - SEAL KIT
- spool - W/Ref. 19
- 20 & 32
29 6646699
- 6646699 - SEAL KIT
- complete - includes 6630960
- 6646695
- 6646698 & Ref. 9
