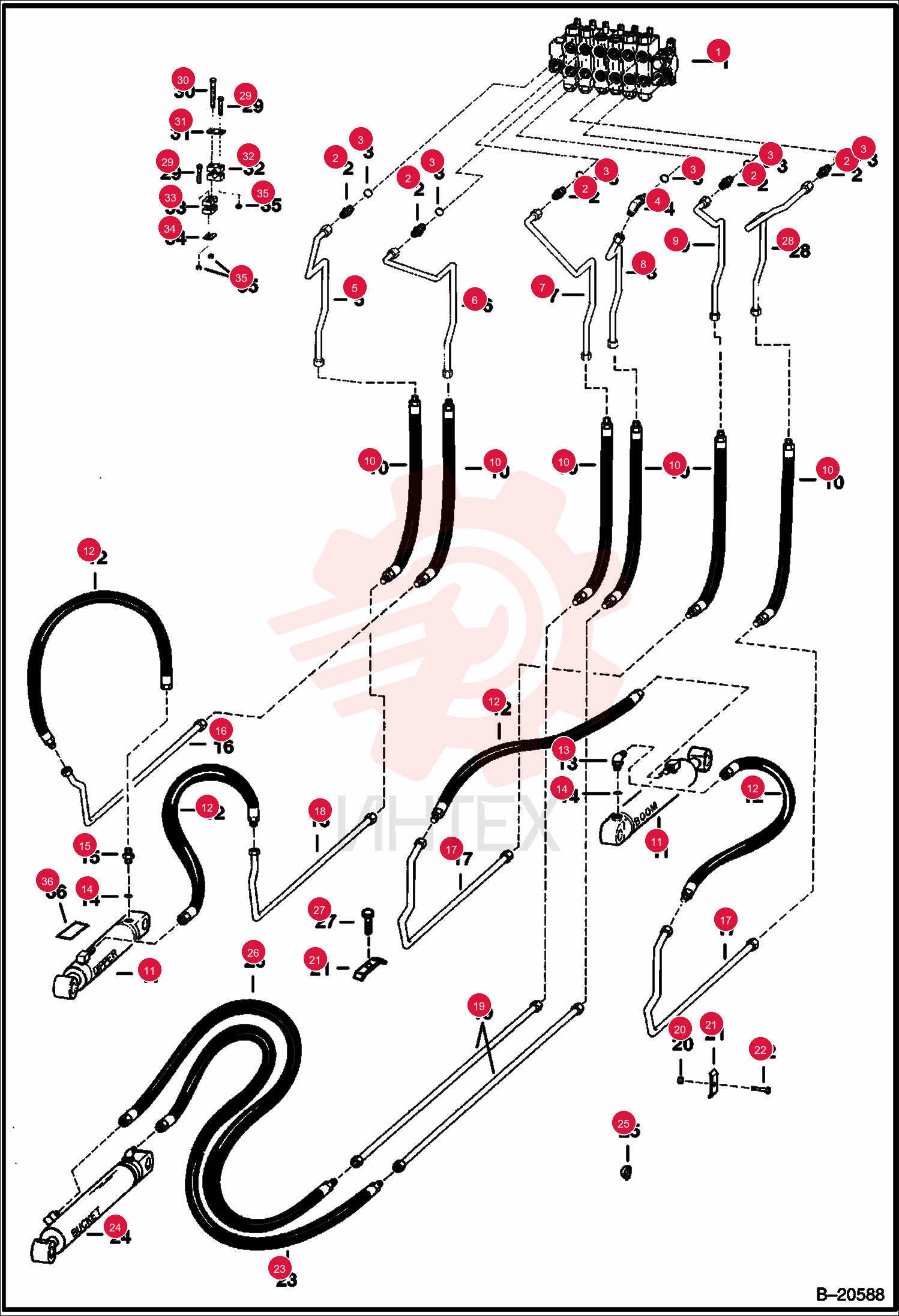

VALVE 6646843 (1)

VALVE 6646843 (1)

VALVE 6646843 (1)

1 6646843

  • 6646843 - VALVE

2 15K7

  • 15K7 - FITTING
  • W/Ref. 3

3 79K10

  • 79K10 - O RING 10

4 17K7

  • 17K7 - ELBOW
  • W/Ref. 14

5 6584668

  • 6584668 - TUBE

6 6584665

  • 6584665 - TUBE

7 6584664

  • 6584664 - TUBE

8 6584667

  • 6584667 - TUBE

9 6584663

  • 6584663 - TUBE

10 6562130

  • 6562130 - HOSE
  • Was 6562120

11 6560363

  • 6560363 - HOSE

12 17K7

  • 17K7 - ELBOW
  • W/Ref. 14

13 79K10

  • 79K10 - O RING 10

14 15K7

  • 15K7 - FITTING
  • W/Ref. 14

15 6560365

  • 6560365 - TUBE

16 6560364

  • 6560364 - TUBE

17 6560644

  • 6560644 - TUBE

18 6560366

  • 6560366 - TUBE

19 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

20 6502426

  • 6502426 - CLAMP

21 84G3728

  • 84G3728 - SCREW THD ROLLING TT

22 6561444

  • 6561444 - HOSE

23 6592825

  • 6592825 - ORIFICE
  • .183/.191

24 6529333

  • 6529333 - HOSE

25 17C632

  • 17C632 - BOLT 5

26 6584666

  • 6584666 - TUBE

27 17C432

  • 17C432 - BOLT

28 17C456

  • 17C456 - BOLT

29 6647630

  • 6647630 - PLATE
  • CLAMP

30 6647628

  • 6647628 - CLAMP

31 6647629

  • 6647629 - CLAMP

32 6647631

  • 6647631 - PLATE
  • CLAMP

33 61D4

  • 61D4 - NUT 5

34 6589445

  • 6589445 - DECAL
