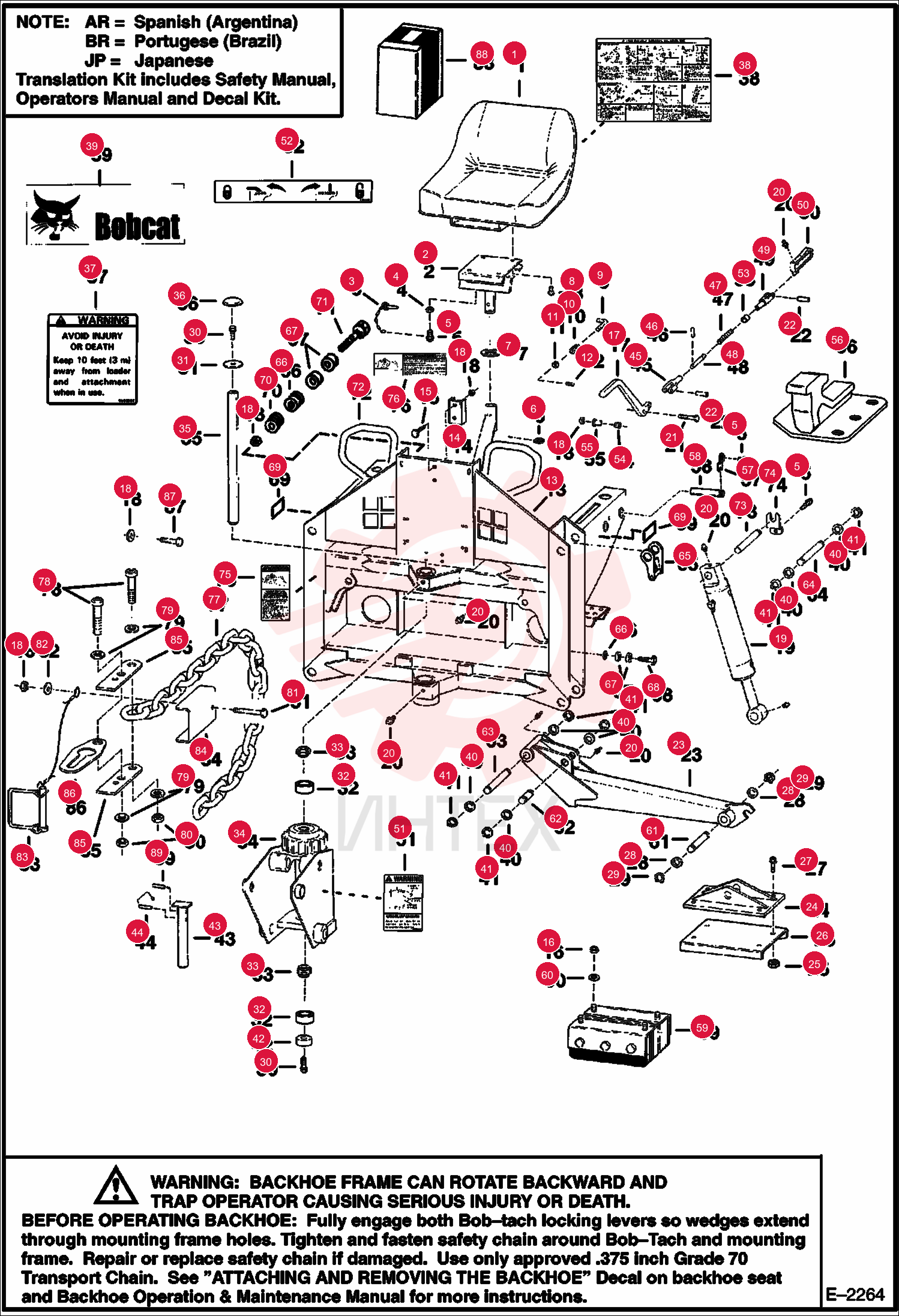

SEAT, OPERATOR VINYL 6643253 (7)
1 6643253
- 6643253 - SEAT
- OPERATOR VINYL
- W/O adj. track - Also Order Ref. 38 (6714916 decal)
2 6587384
- 6587384 - HINGE
- MOUNT SWIVEL
3 6511880
- 6511880 - PIN
4 7D6
- 7D6 - NUT
5 84G3712
- 84G3712 - SCREW THD ROLLING TT
6 22J24
- 22J24 - RING
- SNAP
- Was 6538285
7 6558680
- 6558680 - SPACER
8 17C512
- 17C512 - BOLT 5
9 6592836
- 6592836 - PIN
10 6610082
- 6610082 - SPRING
11 25E15
- 25E15 - WASHER FLAT PLAIN
12 1F308
- 1F308 - PIN
- COTTER
13 6588810
- 6588810 - BH FRAME
14 6561537
- 6561537 - BRACKET
15 37C612
- 37C612 - BOLT
- carriage
16 61D8
- 61D8 - NUT 5
17 6805822
- 6805822 - HANDLE
- Was 6533163
18 85D6
- 85D6 - NUT PRETRQ HEX LOCK
19 10H25
- 10H25 - FTG GREASE STRAIGHT
20 17C672
- 17C672 - BOLT
- Was 17C000664B
21 14J5032
- 14J5032 - PIN CSPR STRAIGHT
22 6587644
- 6587644 - STABILIZER
23 6587676
- 6587676 - PAD
24 55D8
- 55D8 - NUT
25 6531990
- 6531990 - CLEAT
26 6529377
- 6529377 - BOLT
27 6573567
- 6573567 - WASHER
28 22J16
- 22J16 - SNAP RING
- Was 6538286
29 49C1228
- 49C1228 - BOLT
- Was 31C001228B
30 6534555
- 6534555 - WASHER
31 6513682
- 6513682 - RACE
32 6519337
- 6519337 - BEARING ASSEMBLY
33 6712763
- 6712763 - FRAME
- BACKHOE 709
- swing - Was 6532793
34 6532635
- 6532635 - SHAFT
35 6598371
- 6598371 - CAP
36 6583862
- 6583862 - DECAL
- WARNING
37 6714916
- 6714916 - DECAL
- mounting instructions - Was 6596385
38 6727324
- 6727324 - DECAL
- LOGO BOBCAT AND HEAD
- Was 6714353
39 6532519
- 6532519 - WASHER
40 22J20
- 22J20 - SNAP RING
- Was 6538287
41 6532631
- 6532631 - WASHER
42 6593895
- 6593895 - LOCK
- BOOM
- boom lock - Was 6531439
43 6510020
- 6510020 - PIN
- LOCK
44 6533159
- 6533159 - CLEVIS
45 14J2520
- 14J2520 - PIN
46 6578253
- 6578253 - SPRING
- COMPRESSION
47 6533158
- 6533158 - ROD
48 6704248
- 6704248 - PIVOT
- WEDGE
49 6586377
- 6586377 - STOP
50 6535259
- 6535259 - DECAL
- WARNING
51 6535896
- 6535896 - DECAL
- L.H.
52 6535897
- 6535897 - DECAL
- R.H.
53 6533160
- 6533160 - BUSHING
54 6704453
- 6704453 - SPRING COMPRESSION
55 6586315
- 6586315 - PIVOT
56 6586307
- 6586307 - RETAINER
57 6588846
- 6588846 - PIN
58 6660164
- 6660164 - PAD
- STREET
- street
59 25E22
- 25E22 - WASHER
60 6587700
- 6587700 - PIN
61 6587702
- 6587702 - PIN
62 6588848
- 6588848 - PIN
63 6588991
- 6588991 - PIN
- Use W/Ref. 40 & 41
64 6596214
- 6596214 - LOCK
65 6587681
- 6587681 - SHIM
66 6584652
- 6584652 - BUMPER
67 84G3728
- 84G3728 - SCREW THD ROLLING TT
68 6596513
- 6596513 - DECAL
69 616789
- 616789 - WASHE
70 17C640
- 17C640 - BOLT
71 6713882
- 6713882 - PIN
- Use W/Ref. 5 & 74
72 6713881
- 6713881 - RETAINER
73 6714920
- 6714920 - DECAL
- WARNING
74 6714911
- 6714911 - DECAL
- WARNING
75 6714935
- 6714935 - CHAIN
- 55" (1245 mm) long - chain only - use only approved .375 inch grade 70 transport chain - Was 6714867
76 38C820
- 38C820 - SCREW
77 27E8
- 27E8 - WASHER 10
78 53D6
- 53D6 - NUT
79 17C636
- 17C636 - BOLT
80 27E6
- 27E6 - WASHER HARDEN PLAIN
81 6661838
- 6661838 - PIN
- HITCH
82 6714839
- 6714839 - GUIDE
- CHAIN
83 6714869
- 6714869 - LATCH
84 6714868
- 6714868 - BRACKET
85 17C612
- 17C612 - SCREW HEX CAP
86 6713636AR
- 6713636AR - KIT
- DECAL
- decal - SEE NOTE
87 6713636BR
- 6713636BR - KIT
- DECAL
- decal - SEE NOTE
88 6713636JP
- 6713636JP - KIT
- DECAL
- decal - SEE NOTE
89 6713637AR
- 6713637AR - KIT
- TRANSLATION
- translation - SEE NOTE
90 6713637BR
- 6713637BR - KIT
- TRANSLATION
- translation - SEE NOTE
91 14J3740
- 14J3740 - PIN
