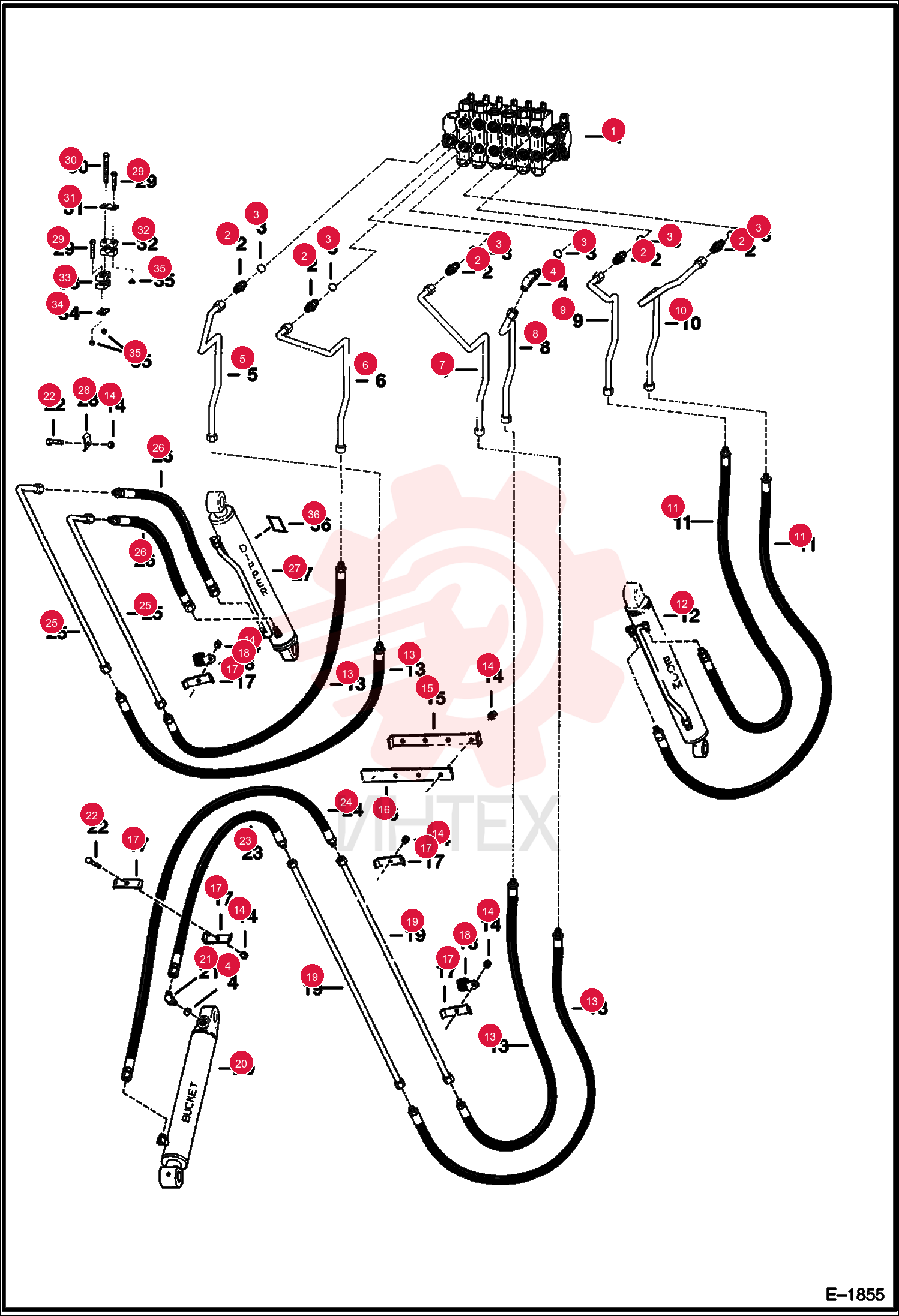

VALVE 6646843 (2)

VALVE 6646843 (2)

VALVE 6646843 (2)

1 6646843

  • 6646843 - VALVE

2 15K7

  • 15K7 - FITTING
  • W/Ref. 3

3 79K10

  • 79K10 - O RING 10

4 17K7

  • 17K7 - ELBOW
  • W/Ref. 3

5 6584668

  • 6584668 - TUBE

6 6584665

  • 6584665 - TUBE

7 6584664

  • 6584664 - TUBE

8 6584667

  • 6584667 - TUBE

9 6584663

  • 6584663 - TUBE

10 6584666

  • 6584666 - TUBE

11 6594191

  • 6594191 - HOSE

12 6529704

  • 6529704 - CYLINDER
  • boom

13 6562130

  • 6562130 - HOSE

14 81D6

  • 81D6 - NUT

15 6593781

  • 6593781 - SPACER

16 6502426

  • 6502426 - CLAMP

17 30H50

  • 30H50 - CLAMP

18 6593871

  • 6593871 - TUBE

19 6593291

  • 6593291 - CYLINDER
  • BUCKET
  • bucket

20 17K7

  • 17K7 - ELBOW
  • W/Ref. 3

21 17C632

  • 17C632 - BOLT 5

22 6560787

  • 6560787 - HOSE

23 6593873

  • 6593873 - HOSE

24 6593870

  • 6593870 - TUBE

25 6593869

  • 6593869 - HOSE

26 6529696

  • 6529696 - CYLINDER
  • dipper

27 6562266

  • 6562266 - CLAMP TUBE

28 17C432

  • 17C432 - BOLT

29 17C456

  • 17C456 - BOLT

30 6647630

  • 6647630 - PLATE
  • CLAMP

31 6647628

  • 6647628 - CLAMP

32 6647629

  • 6647629 - CLAMP

33 6647631

  • 6647631 - PLATE
  • CLAMP

34 61D4

  • 61D4 - NUT 5

35 6589445

  • 6589445 - DECAL
