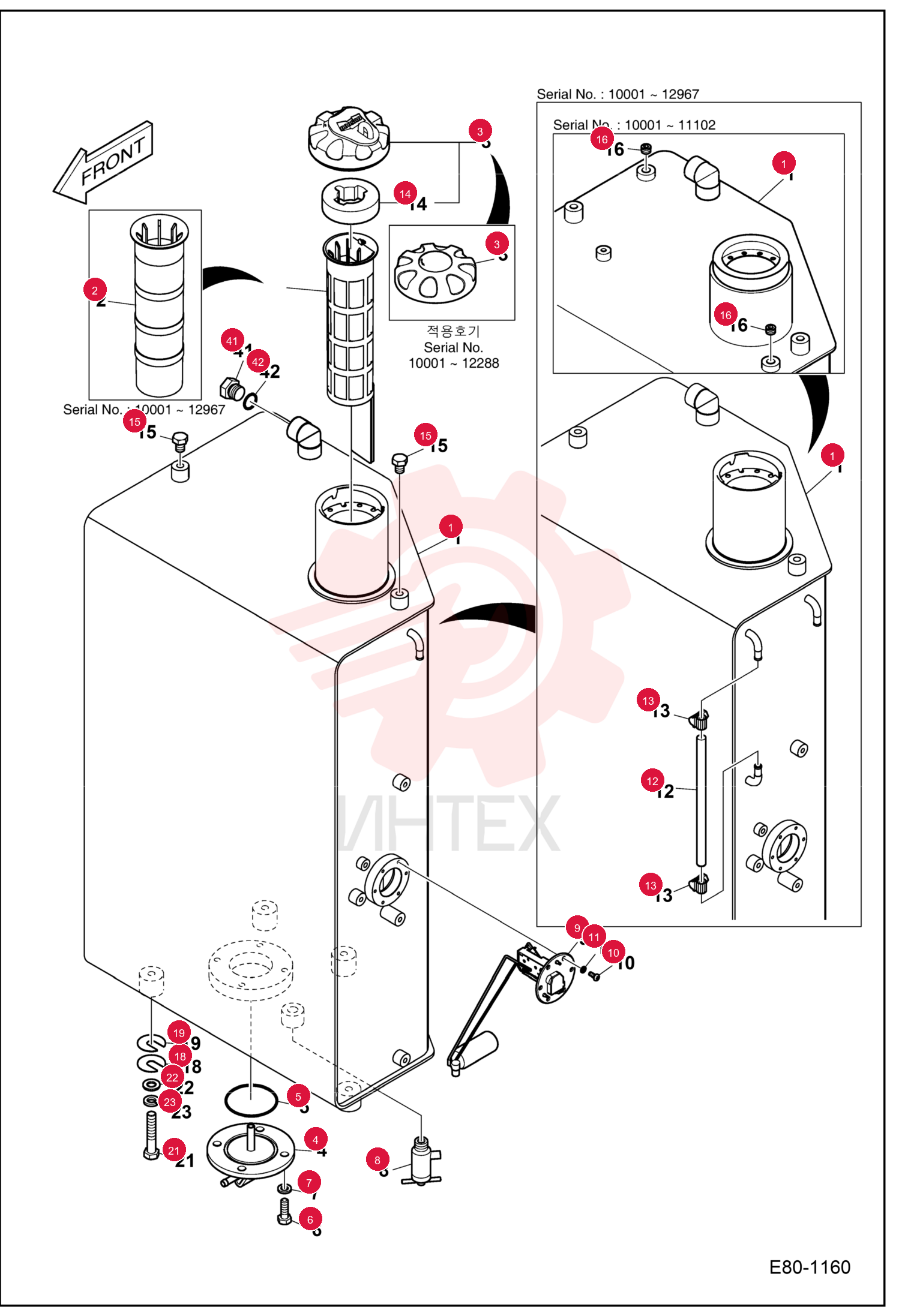

TANK, FUEL 7297295

TANK, FUEL 7297295

TANK, FUEL 7297295

1 7297295

  • 7297295 - TANK
  • FUEL

2 7333075

  • 7333075 - TANK FUEL

3 7004995

  • 7004995 - FILTER FUEL STRAINER

4 7312069

  • 7312069 - STRAINER FUEL

5 7028866

  • 7028866 - CAP
  • DIESEL
  • Was 7005641

6 7331989

  • 7331989 - CAP DIESEL

7 7006086

  • 7006086 - COVER

8 7004635

  • 7004635 - O-RING

9 7007628

  • 7007628 - BOLT

10 7007835

  • 7007835 - WASHER SPRING

11 7004801

  • 7004801 - FITTING COCK

12 7020972

  • 7020972 - SENSOR FUEL
  • Was 7006320

13 7007780

  • 7007780 - BOLT M5X0.8X12

14 7007827

  • 7007827 - WASHER SPRING

15 7006236

  • 7006236 - HOSE FUEL LEVEL

16 7007973

  • 7007973 - CLAMP

17 7029011

  • 7029011 - FOAM

18 7007632

  • 7007632 - BOLT
  • Was 7007635

19 7004673

  • 7004673 - PLUG
  • Use W/Ref. 1 (NLA/ 7008198 tank)

20 7003859

  • 7003859 - SHIM

21 7006522

  • 7006522 - SHIM

22 7024727

  • 7024727 - BOLT
  • Was 7007687

23 7007819

  • 7007819 - WASHER

24 7007836

  • 7007836 - WASHER SPRING M12

25 7004736

  • 7004736 - PLUG

26 7284557

  • 7284557 - O-RING
  • Was 7007911
