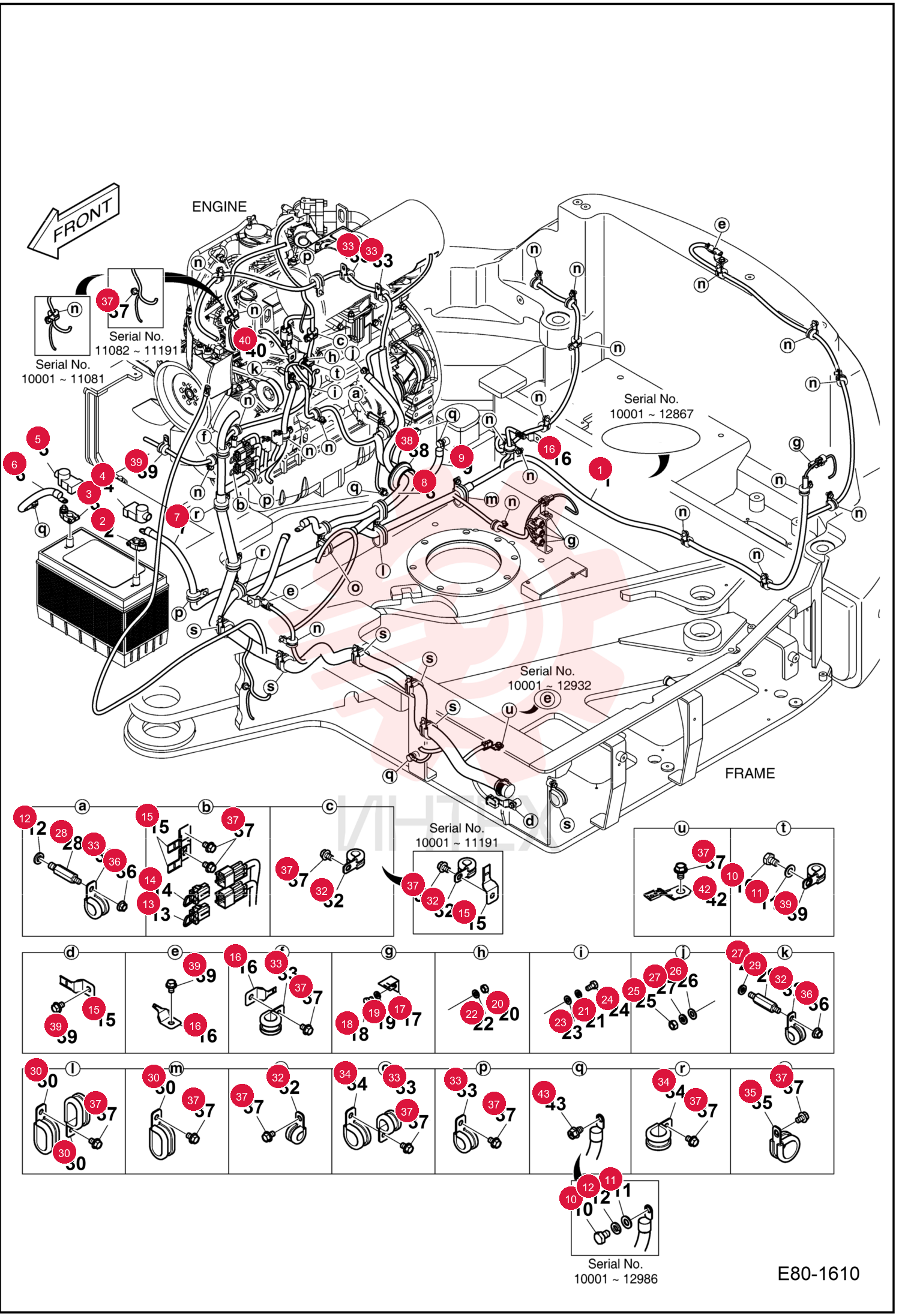

HARNESS MAIN 7313410

HARNESS MAIN 7313410

HARNESS MAIN 7313410

1 7313410

  • 7313410 - HARNESS MAIN
  • W/Ref. 2-4

2 7313411

  • 7313411 - HARNESS MAIN
  • W/Ref. 2-4

3 7313412

  • 7313412 - HARNESS MAIN
  • W/Ref. 2-4

4 7005627

  • 7005627 - RESITOR DIODE

5 7005030

  • 7005030 - RESISTOR DIODE ASSY 3A

6 7004913

  • 7004913 - RESITOR DIODE

7 7313409

  • 7313409 - HARNESS MAIN
  • W/Ref. 2-4

8 7017373

  • 7017373 - HARNESS
  • MAIN
  • W/Ref. 2-4

9 7017371

  • 7017371 - HARNESS
  • MAIN
  • W/Ref. 2-4

10 7006474

  • 7006474 - HARNESS MAIN
  • W/Ref. 2-4

11 7004917

  • 7004917 - TERMINAL BATTERY +
  • positive

12 7008150

  • 7008150 - TERMINAL
  • BATTERY(-)
  • negative

13 7004615

  • 7004615 - CAP BATT TML +
  • positive

14 7004616

  • 7004616 - CAP BATT TML -
  • negative

15 7004921

  • 7004921 - CABLE BATTERY

16 7004923

  • 7004923 - CABLE BATT-BATT RY

17 7004919

  • 7004919 - CABLE BATTERY

18 7005036

  • 7005036 - CABLE E/G EARTH

19 7007623

  • 7007623 - BOLT

20 7007623

  • 7007623 - BOLT

21 7007623

  • 7007623 - BOLT

22 7007818

  • 7007818 - WASHER PLAIN M10

23 7007818

  • 7007818 - WASHER PLAIN M10

24 7007818

  • 7007818 - WASHER PLAIN M10

25 7007835

  • 7007835 - WASHER SPRING

26 7007835

  • 7007835 - WASHER SPRING

27 7004896

  • 7004896 - LINK FUSIBLE

28 7005009

  • 7005009 - LINK FUSIBLE

29 7004825

  • 7004825 - BRACKET HOUSING

30 7004825

  • 7004825 - BRACKET HOUSING

31 7004826

  • 7004826 - BRACKET HOUSING

32 7004826

  • 7004826 - BRACKET HOUSING

33 7004826

  • 7004826 - BRACKET HOUSING

34 7004824

  • 7004824 - BRACKET HOUSING

35 7007602

  • 7007602 - BOLT

36 7007833

  • 7007833 - WASHER
  • SPRING

37 7007794

  • 7007794 - NUT

38 7007827

  • 7007827 - WASHER SPRING

39 7007827

  • 7007827 - WASHER SPRING

40 7007810

  • 7007810 - WASHER

41 7007600

  • 7007600 - BOLT

42 7007796

  • 7007796 - NUT

43 7007816

  • 7007816 - WASHER

44 7276756

  • 7276756 - WASHER
  • Was 7007834

45 7003871

  • 7003871 - BOLT STUD

46 7003870

  • 7003870 - BOLT STUD

47 7003905

  • 7003905 - CLIP

48 7003894

  • 7003894 - CLIP

49 7003894

  • 7003894 - CLIP

50 7003894

  • 7003894 - CLIP

51 7003895

  • 7003895 - CLIP

52 7003896

  • 7003896 - CLIP

53 7003897

  • 7003897 - CLIP

54 7004561

  • 7004561 - NUT

55 7005629

  • 7005629 - BOLT

56 7005629

  • 7005629 - BOLT

57 7004618

  • 7004618 - BUSHING RUBBER

58 7003893

  • 7003893 - CLIP

59 7003893

  • 7003893 - CLIP

60 7017372

  • 7017372 - BRACKET

61 7287393

  • 7287393 - BRACKET

62 7275652

  • 7275652 - BOLT
