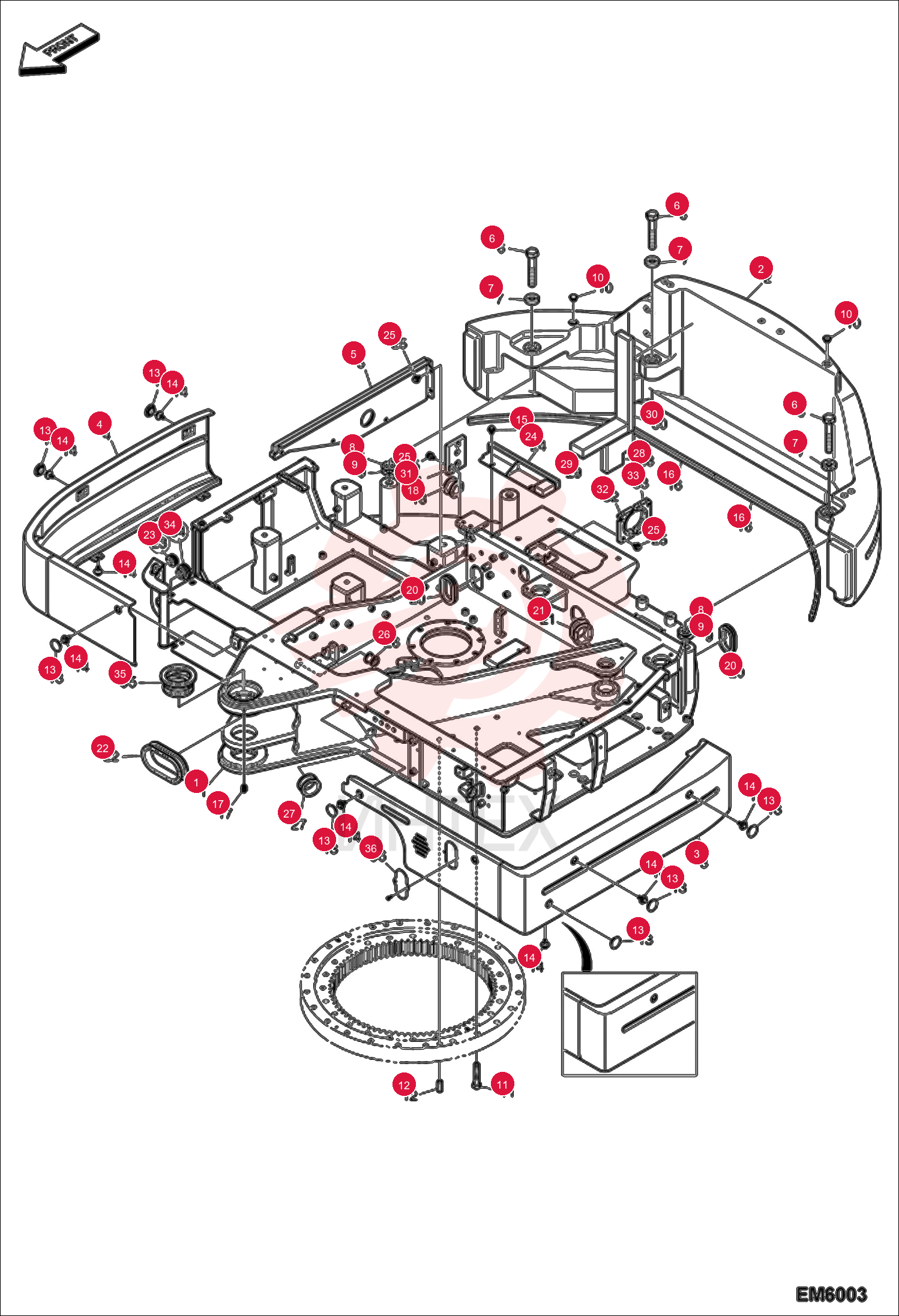

UPPERSTRUCTURE 7331182

UPPERSTRUCTURE 7331182

UPPERSTRUCTURE 7331182

1 7331182

  • 7331182 - UPPERSTRUCTURE

2 7331181

  • 7331181 - UPPERSTRUCTURE

3 7275733

  • 7275733 - UPPERSTRUCTURE
  • W/Ref. 35

4 7006241

  • 7006241 - COUNTERWEIGHT

5 7015431

  • 7015431 - COVER
  • W/Ref. 36

6 7006154

  • 7006154 - COVER

7 7332280

  • 7332280 - COVER BAFFLE

8 7017409

  • 7017409 - COVER
  • BAFFLE
  • Was 7006330

9 7005117

  • 7005117 - BOLT

10 7275675

  • 7275675 - WASHER

11 7004502

  • 7004502 - WASHER

12 7004491

  • 7004491 - SHIM

13 7004493

  • 7004493 - SHIM

14 7003922

  • 7003922 - CAP

15 7007713

  • 7007713 - BOLT

16 7012272

  • 7012272 - PIN
  • DOWEL

17 7005653

  • 7005653 - PAD

18 7005653

  • 7005653 - PAD

19 7005128

  • 7005128 - BOLT SET

20 7005129

  • 7005129 - BOLT SET

21 7006351

  • 7006351 - PAD

22 7007895

  • 7007895 - NIPPLE

23 7005592

  • 7005592 - BUSHING
  • RUBBER

24 7005581

  • 7005581 - BUSHING
  • RUBBER

25 7005586

  • 7005586 - BUSHING
  • RUBBER

26 7005584

  • 7005584 - GROMMET

27 7006536

  • 7006536 - BUSHING

28 7006578

  • 7006578 - COVER
  • BAFFLE

29 7005135

  • 7005135 - BOLT

30 7005595

  • 7005595 - BUSHING
  • RUBBER

31 7005596

  • 7005596 - BUSHING
  • RUBBER

32 7006736

  • 7006736 - FOAM

33 7006737

  • 7006737 - FOAM

34 7006738

  • 7006738 - FOAM

35 7006739

  • 7006739 - COVER
  • BAFFLE

36 7006741

  • 7006741 - COVER
  • BAFFLE

37 7006742

  • 7006742 - COVER
  • BAFFLE

38 7005590

  • 7005590 - BUSHING
  • RUBBER

39 7006283

  • 7006283 - BUSHING

40 7006365

  • 7006365 - COVER
