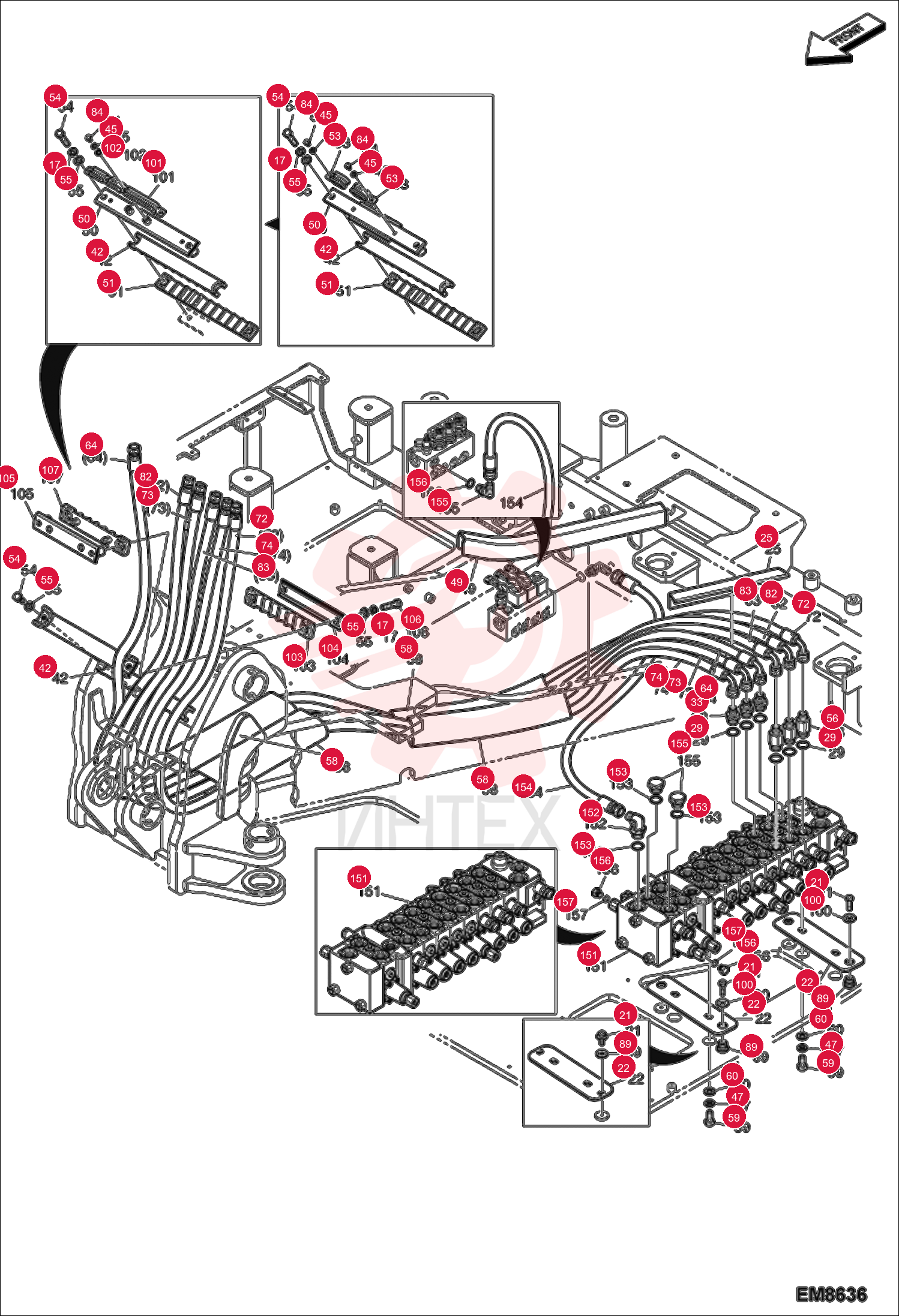

WASHER SPRING M12

WASHER SPRING M12

WASHER SPRING M12

1 7007836

  • 7007836 - WASHER SPRING M12

2 7007631

  • 7007631 - BOLT M10X1.5X35

3 7005120

  • 7005120 - BOLT SET

4 7006277

  • 7006277 - PLATE

5 7021861

  • 7021861 - PLATE

6 7006601

  • 7006601 - PAD

7 7004628

  • 7004628 - O-RING

8 7005542

  • 7005542 - ADAPTER

9 7021809

  • 7021809 - CLAMP
  • HOSE

10 7007829

  • 7007829 - WASHER

11 7007829

  • 7007829 - WASHER

12 7007837

  • 7007837 - WASHER

13 7006438

  • 7006438 - PAD

14 7332295

  • 7332295 - GUIDE RUBBER

15 7021833

  • 7021833 - PLATE

16 7021808

  • 7021808 - CLAMP
  • HOSE

17 7003902

  • 7003902 - CLIP

18 7007686

  • 7007686 - BOLT
  • Was 7007685

19 7007820

  • 7007820 - WASHER SPRING

20 7007820

  • 7007820 - WASHER SPRING

21 7005546

  • 7005546 - ADAPTER

22 7005639

  • 7005639 - GUARD

23 7005639

  • 7005639 - GUARD

24 7007643

  • 7007643 - BOLT

25 7007821

  • 7007821 - WASHER

26 7011040

  • 7011040 - VALVE
  • BPV
  • Was 7005423

27 7011045

  • 7011045 - HOSE
  • HYD
  • Was 7005424

28 7011042

  • 7011042 - HOSE
  • HYD
  • Was 7005425

29 7020968

  • 7020968 - HOSE HYDRAULIC ASSY PF1/2-3320L

30 7011043

  • 7011043 - HOSE
  • HYD
  • Was 7005427

31 7011046

  • 7011046 - HOSE
  • HYD

32 7020969

  • 7020969 - HOSE HYDRAULIC ASSY PF1/2-3380L

33 7011046

  • 7011046 - HOSE
  • HYD
  • Was 7005428

34 7016123

  • 7016123 - HOSE
  • HYD

35 7007612

  • 7007612 - BOLT

36 7007612

  • 7007612 - BOLT

37 7006765

  • 7006765 - PLATE SHEET ANTI VIBRATION

38 7021821

  • 7021821 - BUSHING
  • SPACER

39 7021845

  • 7021845 - WASHER

40 7021814

  • 7021814 - CLIP

41 7007816

  • 7007816 - WASHER

42 7020687

  • 7020687 - CLAMP
  • HOSE

43 7020688

  • 7020688 - PLATE

44 7020689

  • 7020689 - PLATE

45 7007686

  • 7007686 - BOLT
  • Was 7007685

46 7020690

  • 7020690 - CLAMP
  • HOSE

47 7012018

  • 7012018 - MAIN CONTROL VALVE
  • Was 7006686

48 7008144

  • 7008144 - ELBOW

49 7004628

  • 7004628 - O-RING

50 7004628

  • 7004628 - O-RING

51 7008146

  • 7008146 - HOSE
  • PF1/2-1100L

52 7015951

  • 7015951 - HOSE

53 7004710

  • 7004710 - ELBOW

54 7021824

  • 7021824 - PLUG

55 7284557

  • 7284557 - O-RING
  • Was 7007911

56 7004735

  • 7004735 - PLUG

57 7007961

  • 7007961 - O-RING
