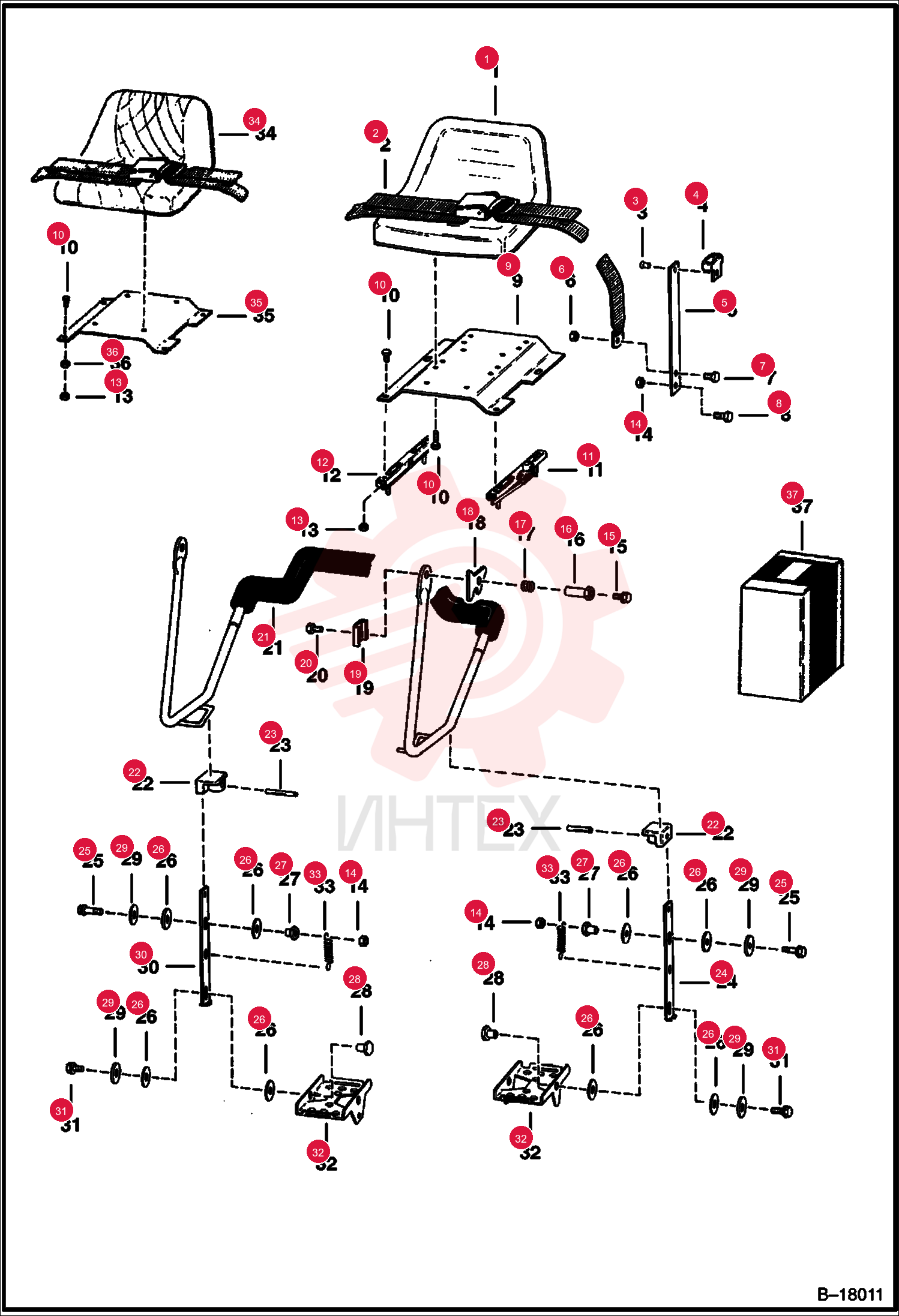

SEAT 6591598 (2)

SEAT 6591598 (2)

SEAT 6591598 (2)

1 6591598

  • 6591598 - SEAT
  • Milsco

2 6675074

  • 6675074 - SEATBELT STANDARD
  • W/O spring plates

3 6630207

  • 6630207 - RIVET POP
  • Was 6512797

4 6711908

  • 6711908 - SPNG PLATE
  • Use W/Ref. 2 (NLA/6667875 Seat Belt)

5 6725373

  • 6725373 - SPRING BELT GUIDE
  • Use W/Ref. 2 (6675074 seal belt)

6 85D7

  • 85D7 - NUT PRETRQ HEX LOCK

7 17C716

  • 17C716 - BOLT

8 17C612

  • 17C612 - SCREW HEX CAP

9 17C512

  • 17C512 - BOLT 5
  • Was 17C000510B

10 6599779

  • 6599779 - TRACK

11 6599780

  • 6599780 - TRACK SEAT W/O LATCH

12 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

13 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

14 35C608

  • 35C608 - BOLT

15 6568742

  • 6568742 - BUSHING

16 6704453

  • 6704453 - SPRING COMPRESSION
  • Was 6578252

17 6563313

  • 6563313 - RETAINER

18 6563557

  • 6563557 - WASHER

19 17C608

  • 17C608 - BOLT

20 6704562

  • 6704562 - SEAT BAR

21 6702343

  • 6702343 - BLOCK
  • Was 6702343

22 14J2512

  • 14J2512 - PIN 5
  • Was 14J002510B

23 6594293

  • 6594293 - LINK

24 6704559

  • 6704559 - LINK
  • W/Ref. 22
  • 23 - Was 6704557

25 35C624

  • 35C624 - SCREW FLGD HEX CAP

26 6700170

  • 6700170 - WASHER
  • nylon

27 6559479

  • 6559479 - NUT RETAINING

28 6594298

  • 6594298 - NUT RETAINING

29 872229

  • 872229 - WASHER

30 6594294

  • 6594294 - LINK

31 6704558

  • 6704558 - LINK
  • W/Ref. 22
  • 23 - Was 6704556

32 35C616

  • 35C616 - SCREW FLGD HEX CAP

33 6594284

  • 6594284 - SPRING TENSION

34 6643253

  • 6643253 - SEAT
  • OPERATOR VINYL
  • See Note - Michigan Seat Co.

35 6594257

  • 6594257 - BRACKET
  • Use W/Ref. 1 & 34

36 774220

  • 774220 - NUT
