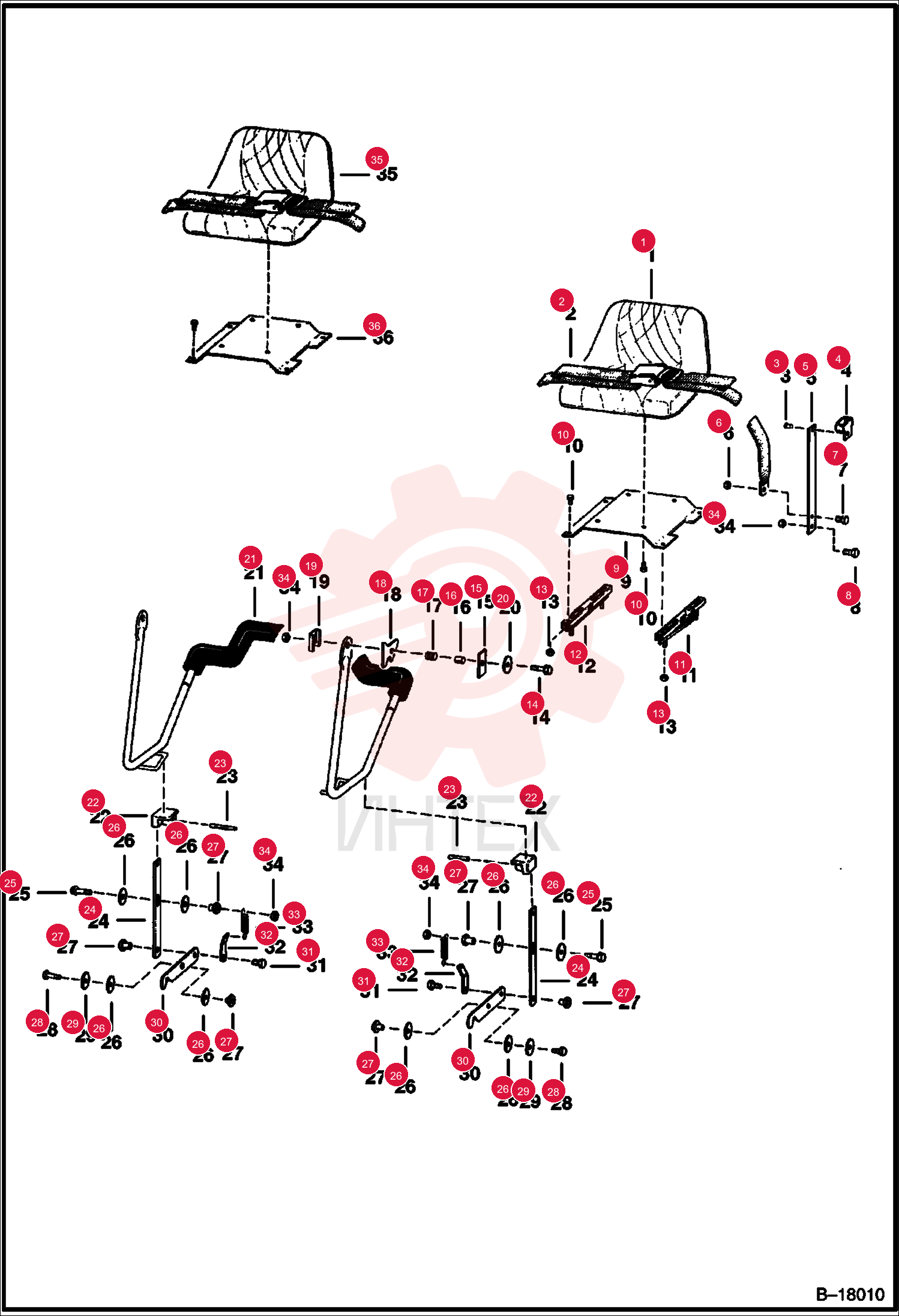

SEAT 6591598 (1)

SEAT 6591598 (1)

SEAT 6591598 (1)

1 6591598

  • 6591598 - SEAT

2 6630207

  • 6630207 - RIVET POP
  • Was 6512797

3 6565354

  • 6565354 - GUIDE ASSEMBLY
  • W/Ref. 3 & 4

4 85D7

  • 85D7 - NUT PRETRQ HEX LOCK

5 17C716

  • 17C716 - BOLT

6 17C612

  • 17C612 - SCREW HEX CAP

7 17C510

  • 17C510 - BOLT

8 6599779

  • 6599779 - TRACK

9 6599780

  • 6599780 - TRACK SEAT W/O LATCH

10 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

11 17C632

  • 17C632 - BOLT 5

12 6564506

  • 6564506 - WASHER

13 6564507

  • 6564507 - BUSHING

14 6704453

  • 6704453 - SPRING COMPRESSION
  • Was 6578252

15 6563313

  • 6563313 - RETAINER

16 6563557

  • 6563557 - WASHER

17 25E17

  • 25E17 - WASHER FLAT PLAIN

18 6702343

  • 6702343 - BLOCK
  • Was 6563148

19 14J2512

  • 14J2512 - PIN 5
  • Was 14J002510B

20 6564129

  • 6564129 - LOCK LINK

21 35C620

  • 35C620 - BOLT 5
  • Was 31C000620B

22 6700170

  • 6700170 - WASHER
  • nylon - Was 6563152

23 6559479

  • 6559479 - NUT RETAINING

24 35C612

  • 35C612 - SCREW FLGD HEX CAP
  • Was 31C000612B

25 872229

  • 872229 - WASHER

26 6593352

  • 6593352 - LOCK

27 17C608

  • 17C608 - BOLT

28 6564483

  • 6564483 - BRACKET

29 6505076

  • 6505076 - SPRING

30 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

31 6643253

  • 6643253 - SEAT
  • OPERATOR VINYL
  • Michigan Seat Co.

32 6594257

  • 6594257 - BRACKET
