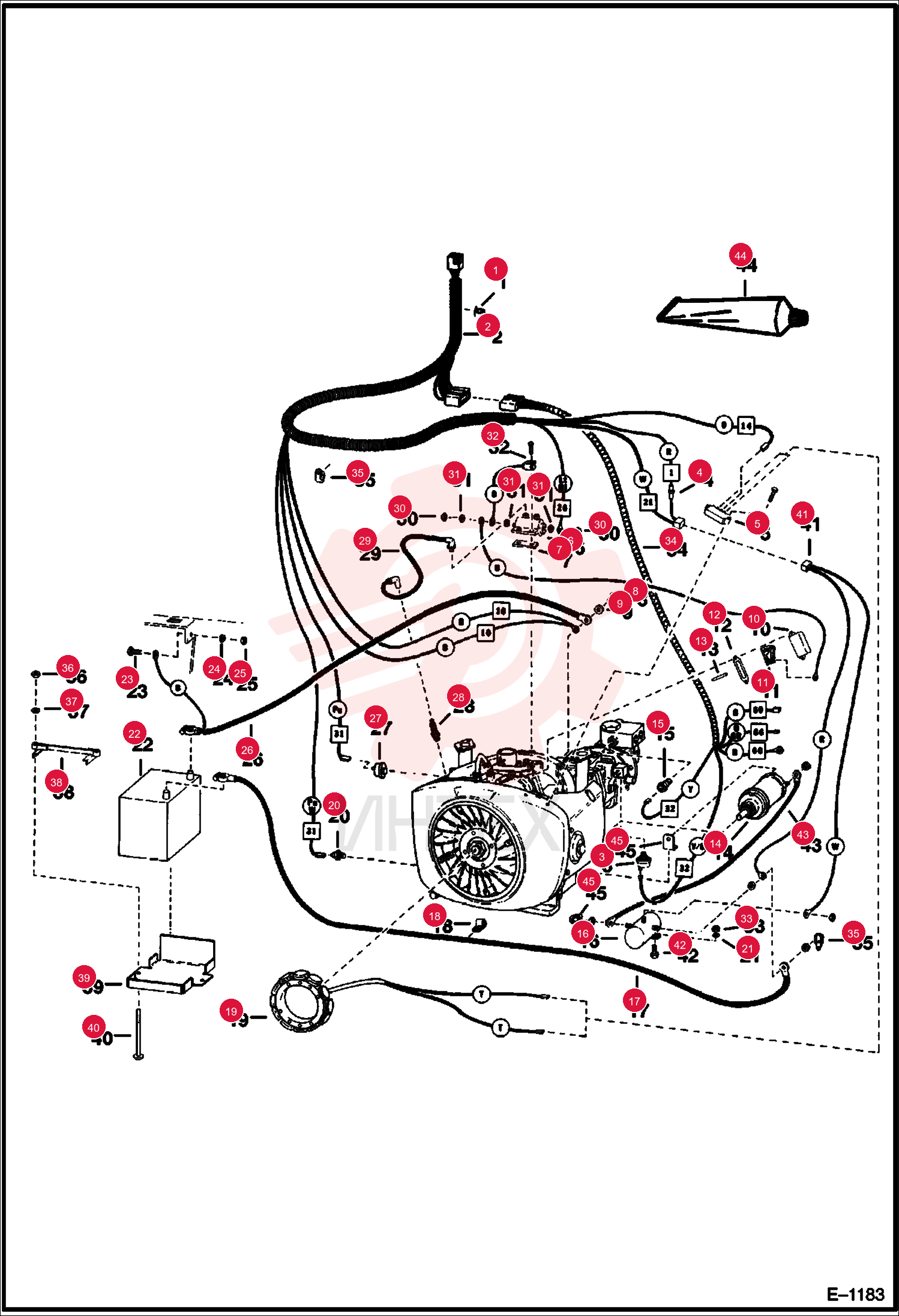

CLIP 30H47 (2)

CLIP 30H47 (2)

CLIP 30H47 (2)

1 30H47

  • 30H47 - CLIP

2 6562824

  • 6562824 - HARNESS

3 6557449

  • 6557449 - SWITCH
  • hydraulic pressure

4 608869

  • 608869 - FUSE
  • Was 6515208

5 6513972

  • 6513972 - REGULATOR
  • W/regulator

6 6512212

  • 6512212 - COIL

7 6517345

  • 6517345 - PLATE

8 17C620

  • 17C620 - BOLT

9 6E7

  • 6E7 - WASHER

10 6518879

  • 6518879 - COVER

11 6518868

  • 6518868 - BREAKER
  • points

12 6518867

  • 6518867 - GASKET

13 6512240

  • 6512240 - ROD
  • push

14 6512287

  • 6512287 - STARTER

15 6598384

  • 6598384 - SWITCH
  • hydro. temp.

16 6659319

  • 6659319 - SOLENOID
  • STARTER MAGNETIC
  • Was 6632186

17 6553748

  • 6553748 - CABLE
  • positive

18 30H62

  • 30H62 - CLIP

19 6518264

  • 6518264 - STATOR

20 25E13

  • 25E13 - WASHER FLAT PLAIN

21 6514898

  • 6514898 - 6 CAPS
  • tilt-tite

22 6630155

  • 6630155 - CAP
  • gang - Poison

23 6630154

  • 6630154 - CAP
  • gang - Danger

24 7312552

  • 7312552 - BATTERY 650 CCA DRY
  • - Was 6674687

25 17C512

  • 17C512 - BOLT 5

26 6E5

  • 6E5 - WASHER INTL T LOCK

27 61D5

  • 61D5 - NUT HEX FINISHED GR5

28 6557451

  • 6557451 - CABLE
  • negative

29 6631010

  • 6631010 - SWITCH
  • PRESS OIL ENG
  • engine oil press.

30 6660301

  • 6660301 - SPARK PLUG-10
  • resistor - Was 6512814

31 14D10

  • 14D10 - NUT HEX MACH SCREW

32 12E10

  • 12E10 - WASHER

33 6518873

  • 6518873 - CONDENSER

34 83D4

  • 83D4 - LKNUT HEX FLG GR8

35 6563359

  • 6563359 - HARNESS

36 6560172

  • 6560172 - COVER
  • terminal

37 59D5

  • 59D5 - NUT LOCK HEX PT

38 25E15

  • 25E15 - WASHER FLAT PLAIN

39 7024123

  • 7024123 - CLAMP
  • Was 6563462

40 6558826

  • 6558826 - MOUNT

41 6558101

  • 6558101 - HARNESS

42 17C412

  • 17C412 - BOLT 5

43 6599360

  • 6599360 - SEALANT
  • ELEC .3 OZ
  • electrical - tube - 3 oz

44 6561936

  • 6561936 - BRKT STRT
