Bobcat
/
540
/

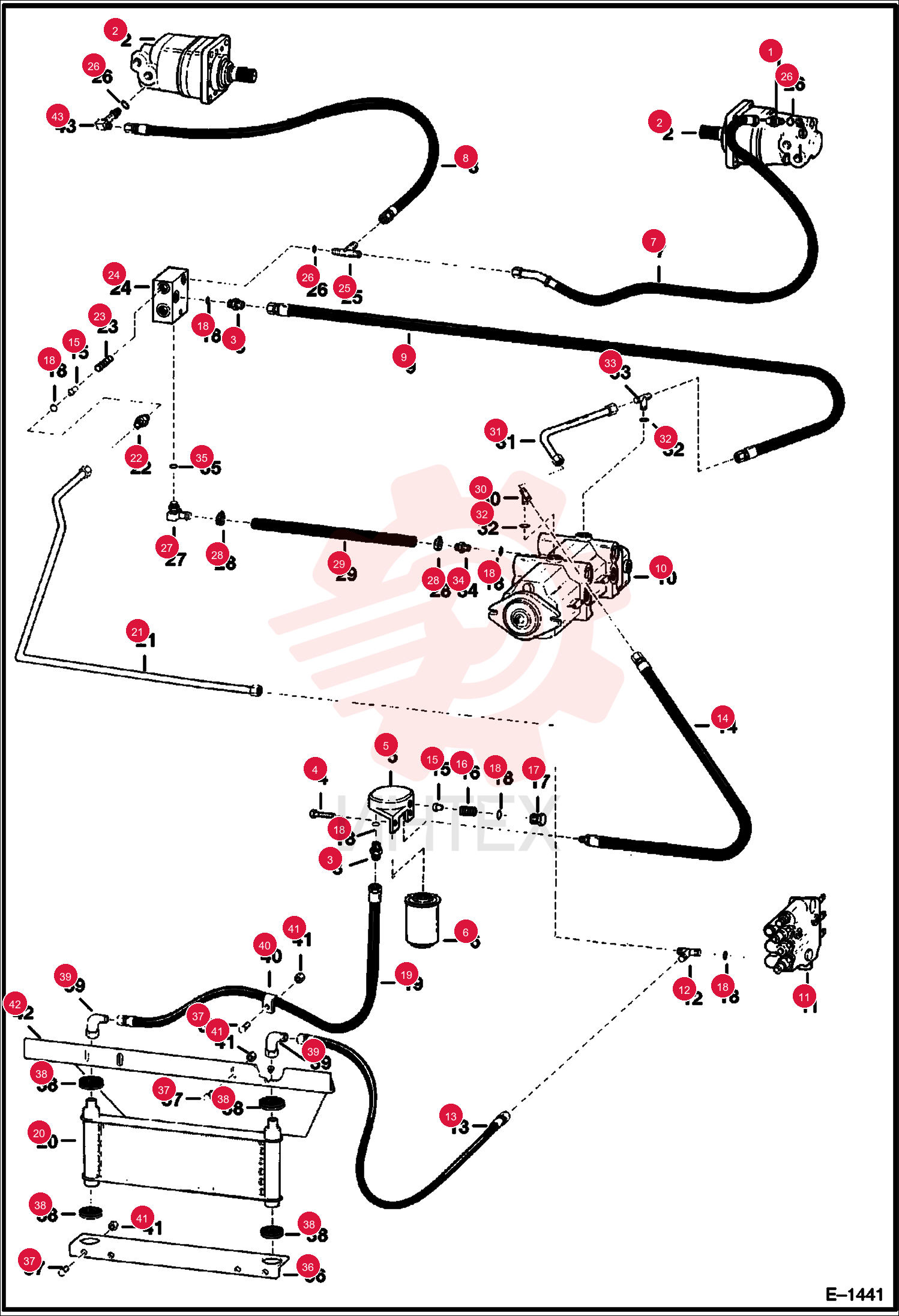

FITTING 15K5

FITTING 15K5

FITTING 15K5

1 15K5

  • 15K5 - FITTING
  • W/Ref. 26

2 15K7

  • 15K7 - FITTING
  • W/Ref. 18

3 84G3712

  • 84G3712 - SCREW THD ROLLING TT

4 6564877

  • 6564877 - HEAD
  • filter

5 6630494

  • 6630494 - FILTER
  • HYD
  • filter

6 6599543

  • 6599543 - FILTER
  • OIL HYD 12
  • filter - Was 6599543

7 6577891

  • 6577891 - HOSE
  • Was 6564717

8 6577892

  • 6577892 - HOSE
  • Was 6564148

9 6564150

  • 6564150 - HOSE
  • Use W/O Backup Alarm

10 6702181

  • 6702181 - HOSE
  • Use W/Backup Alarm

11 21K7

  • 21K7 - FITTING
  • TEE
  • W/Ref. 18

12 6561044

  • 6561044 - HOSE

13 6565960

  • 6565960 - HOSE

14 6515078

  • 6515078 - POPPET

15 6553897

  • 6553897 - SPRING

16 6561811

  • 6561811 - PLUG

17 79K10

  • 79K10 - O RING 10

18 6561045

  • 6561045 - HOSE

19 6568989

  • 6568989 - HOSE

20 6564786

  • 6564786 - TUBE

21 6564514

  • 6564514 - TUBE

22 6559518

  • 6559518 - FITTING
  • ADAPTER
  • W/Ref. 18

23 6564884

  • 6564884 - SPRING

24 6565550

  • 6565550 - BLOCK
  • port

25 21K5

  • 21K5 - TEE
  • W/Ref. 26

26 79K6

  • 79K6 - O RING 10

27 6567886

  • 6567886 - ELBOW
  • W/Ref. 35

28 42H12

  • 42H12 - CLAMP 10

29 6567889

  • 6567889 - HOSE

30 6563653

  • 6563653 - TEE
  • W/Ref. 32

31 6563645

  • 6563645 - TUBE

32 79K8

  • 79K8 - O RING 10

33 19K6

  • 19K6 - FITTING
  • W/Ref. 32

34 6567885

  • 6567885 - ADAPTER
  • W/Ref. 18

35 79K12

  • 79K12 - O RING 10

36 6553432

  • 6553432 - BRACKET

37 37C616

  • 37C616 - BOLT
  • Was 6514537

38 6511983

  • 6511983 - GROMMET

39 11K7

  • 11K7 - ADAPTER
  • W/Ref. 18

40 31H46

  • 31H46 - CLAMP

41 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

42 6553431

  • 6553431 - BRACKET

43 6558510

  • 6558510 - ELBOW
  • W/Ref. 26
