Bobcat
/
540
/

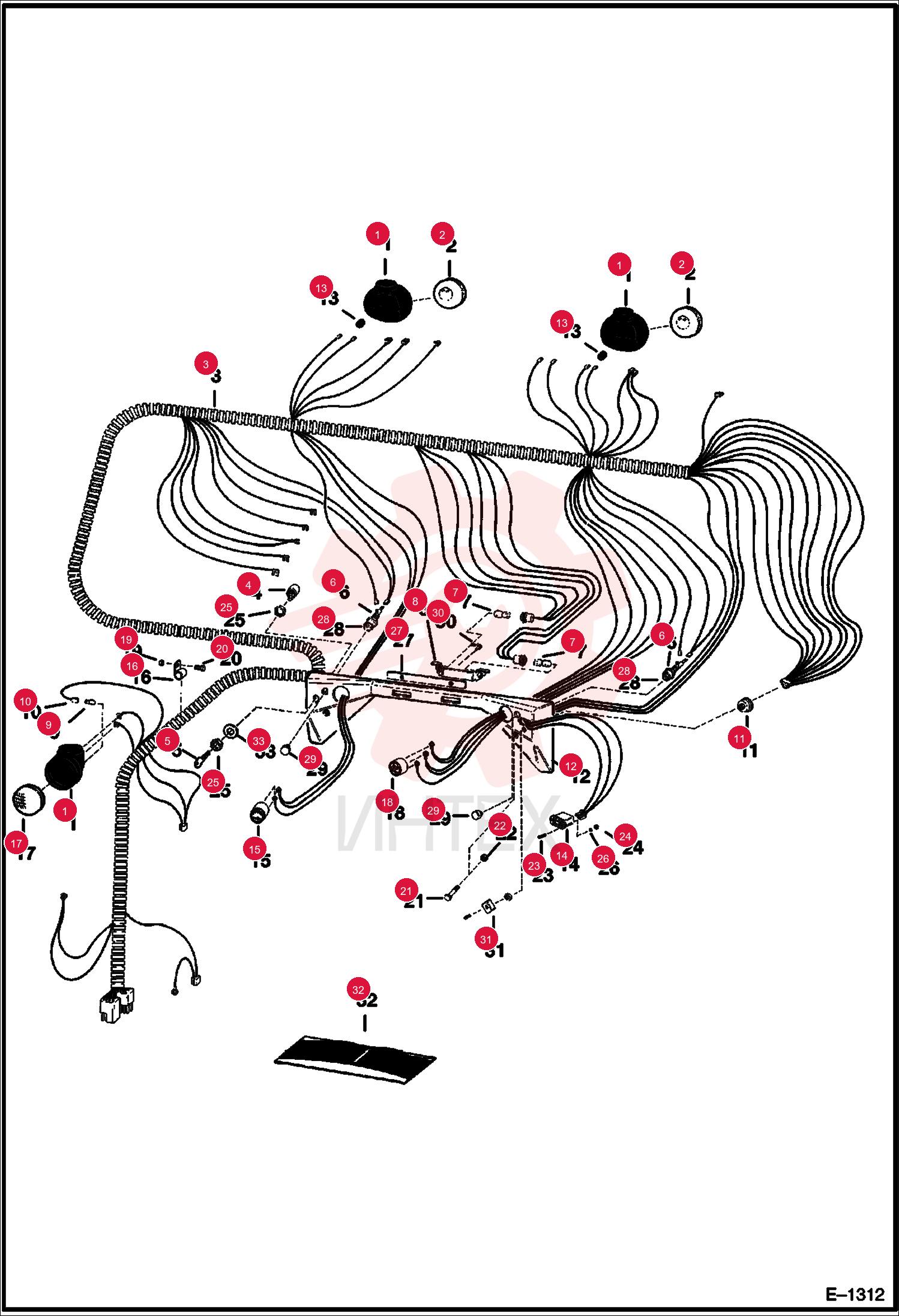

HOUSING, LAMP 6558142 (3)

HOUSING, LAMP 6558142 (3)

HOUSING, LAMP 6558142 (3)

1 6558142

  • 6558142 - HOUSING
  • LAMP

2 6557486

  • 6557486 - LAMP

3 6561500

  • 6561500 - HARNESS

4 6665606

  • 6665606 - SWITCH
  • IGN

5 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

6 6512809

  • 6512809 - KEYSET 10
  • For NLA/ 6519592 Switch

7 1319451

  • 1319451 - FUSE 5

8 6513469

  • 6513469 - HOLDER
  • FUSE

9 6513468

  • 6513468 - #168 BULB

10 6558242

  • 6558242 - HOLDER

11 898731

  • 898731 - LAMP
  • #1156-Use Only W/#4409X Lamp

12 960855

  • 960855 - 1003 BULB
  • light #1003 - Use Only W/#4409 Lamp

13 6557504

  • 6557504 - SOCKET

14 6512808

  • 6512808 - SWITCH-LT
  • light

15 6560182

  • 6560182 - PANEL

16 6557493

  • 6557493 - GROMMET

17 6664886

  • 6664886 - METER HOUR
  • Was 6631657

18 6659912

  • 6659912 - GAUGE VM
  • Was 6560354

19 30H45

  • 30H45 - CLIP
  • Was 30H000041B

20 6563740

  • 6563740 - LIGHT
  • SEALED BEAM
  • #4409X

21 6634273

  • 6634273 - GAUGE
  • FUEL
  • Was 6560353

22 61D5

  • 61D5 - NUT HEX FINISHED GR5

23 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

24 17C572

  • 17C572 - BOLT

25 83D5

  • 83D5 - LKNUT HEX FLG GR8

26 85G608

  • 85G608 - SCREW

27 12D6

  • 12D6 - NUT HEX MACH SCREW

28 6674202

  • 6674202 - NUT
  • For Ref. 4 (6665606 Switch)

29 6598721

  • 6598721 - NUT
  • For Ref. 4 (NLA/6519592 Switch)

30 12E6

  • 12E6 - WASHER

31 6560699

  • 6560699 - LENS

32 6514643

  • 6514643 - GASKET

33 6514642

  • 6514642 - CAP 5

34 6514742

  • 6514742 - RIVET

35 6599781

  • 6599781 - KNOB

36 6724282

  • 6724282 - KIT
  • SWITCH IGN
  • Ref. 4
  • 5 & 33

37 6709172

  • 6709172 - PLATE 10
