Bobcat
/
540
/

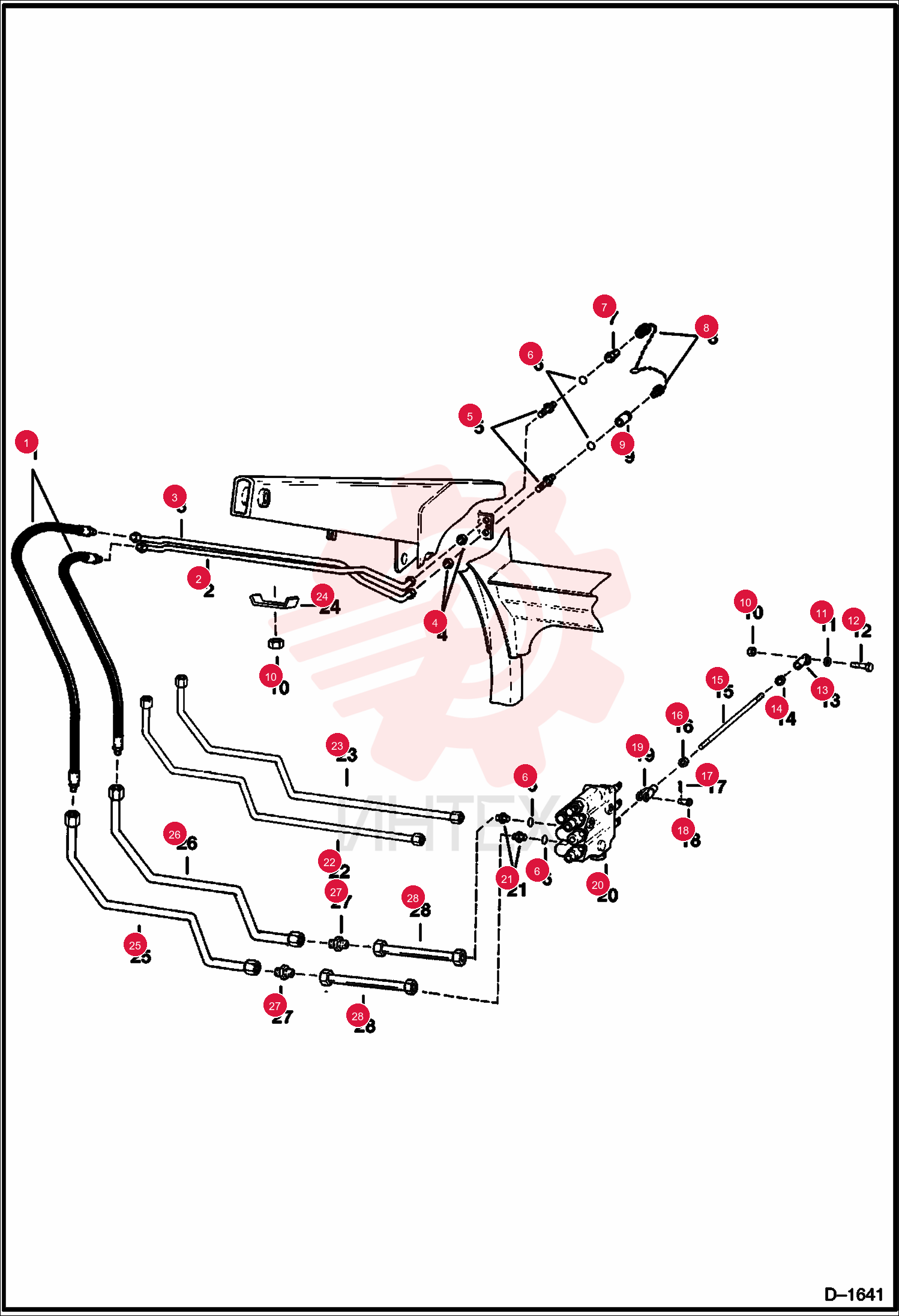

HOSES 6558484 (2)

HOSES 6558484 (2)

HOSES 6558484 (2)

1 6558484

  • 6558484 - HOSES

2 6558414

  • 6558414 - TUBELINE

3 6558415

  • 6558415 - TUBE
  • Was 6707041

4 86F7

  • 86F7 - NUT 5

5 45K7

  • 45K7 - CONNECTR
  • W/Ref. 6

6 79K10

  • 79K10 - O RING 10

7 6598757

  • 6598757 - COUPLER
  • POPPET MALE
  • straight

8 6513709

  • 6513709 - CAP AND PLUG
  • assy. - Rubber

9 6515167

  • 6515167 - CAP
  • Steel

10 6515168

  • 6515168 - CAP
  • Steel

11 6598758

  • 6598758 - COUPLER FF FEMALE
  • straight

12 48K16

  • 48K16 - O RING 10

13 6665430

  • 6665430 - RING
  • BACK-UP
  • Back-up

14 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

15 6564535

  • 6564535 - WASHER AUX CONTROL

16 17C620

  • 17C620 - BOLT

17 6512955

  • 6512955 - CONNECTOR ROD END
  • LH threads

18 13D6

  • 13D6 - NUT LH HEX JAM

19 6567057

  • 6567057 - ROD

20 8D6

  • 8D6 - NUT HEX JAM

21 6513495

  • 6513495 - PIN 5

22 6564654

  • 6564654 - PIN
  • CLEVIS

23 731794

  • 731794 - CONNECTR
  • W/Ref. 6

24 6502203

  • 6502203 - CLAMP
  • Use W/lift arm weld on stud

25 6709867

  • 6709867 - TUBELINE

26 6709868

  • 6709868 - TUBELINE

27 87F6

  • 87F6 - UNION HYDR LARGE HEX

28 6709866

  • 6709866 - TUBELINE
