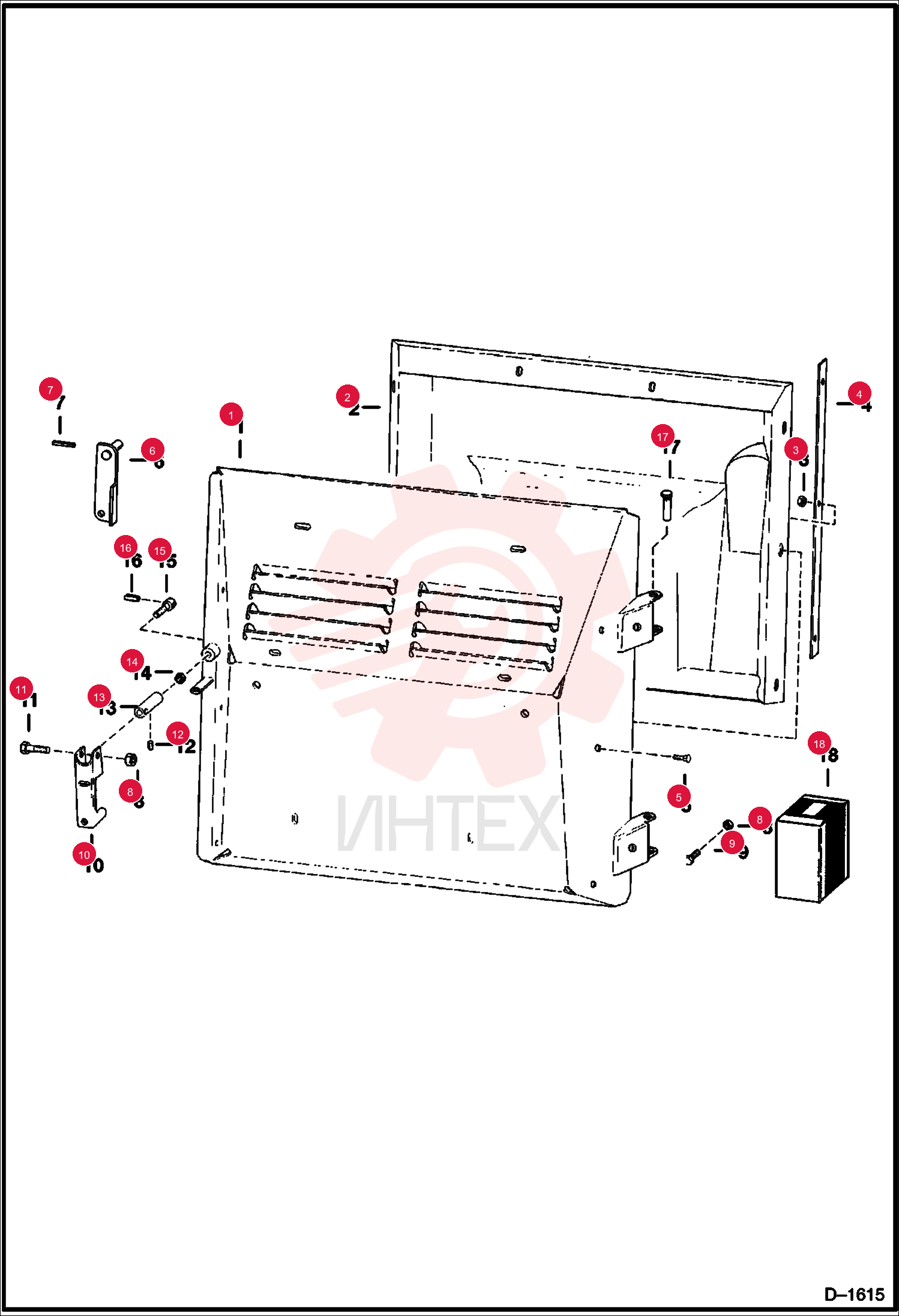

SHROUD 6553414

SHROUD 6553414

SHROUD 6553414

1 6553414

  • 6553414 - SHROUD

2 81D6

  • 81D6 - NUT

3 6553430

  • 6553430 - STRIP

4 37C616

  • 37C616 - BOLT
  • Was 6514537

5 6553429

  • 6553429 - HNDLE ASY

6 14J3740

  • 14J3740 - PIN

7 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

8 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808

9 6563681

  • 6563681 - HANDLE

10 38C624

  • 38C624 - BOLT 5
  • Was 6564599

11 33G404

  • 33G404 - SET SCRW5

12 6565628

  • 6565628 - NUT
  • fine threads

13 6565627

  • 6565627 - NUT 5
  • fine threads

14 6563624

  • 6563624 - NUT JAM
  • coarse threads

15 6565629

  • 6565629 - SCREW
  • fine threads

16 6599361

  • 6599361 - PIN 5

17 6564340

  • 6564340 - PIN HINGE

18 6579448

  • 6579448 - KIT
  • LATCH REAR
  • Latch - Ref. 8 & 10-16
