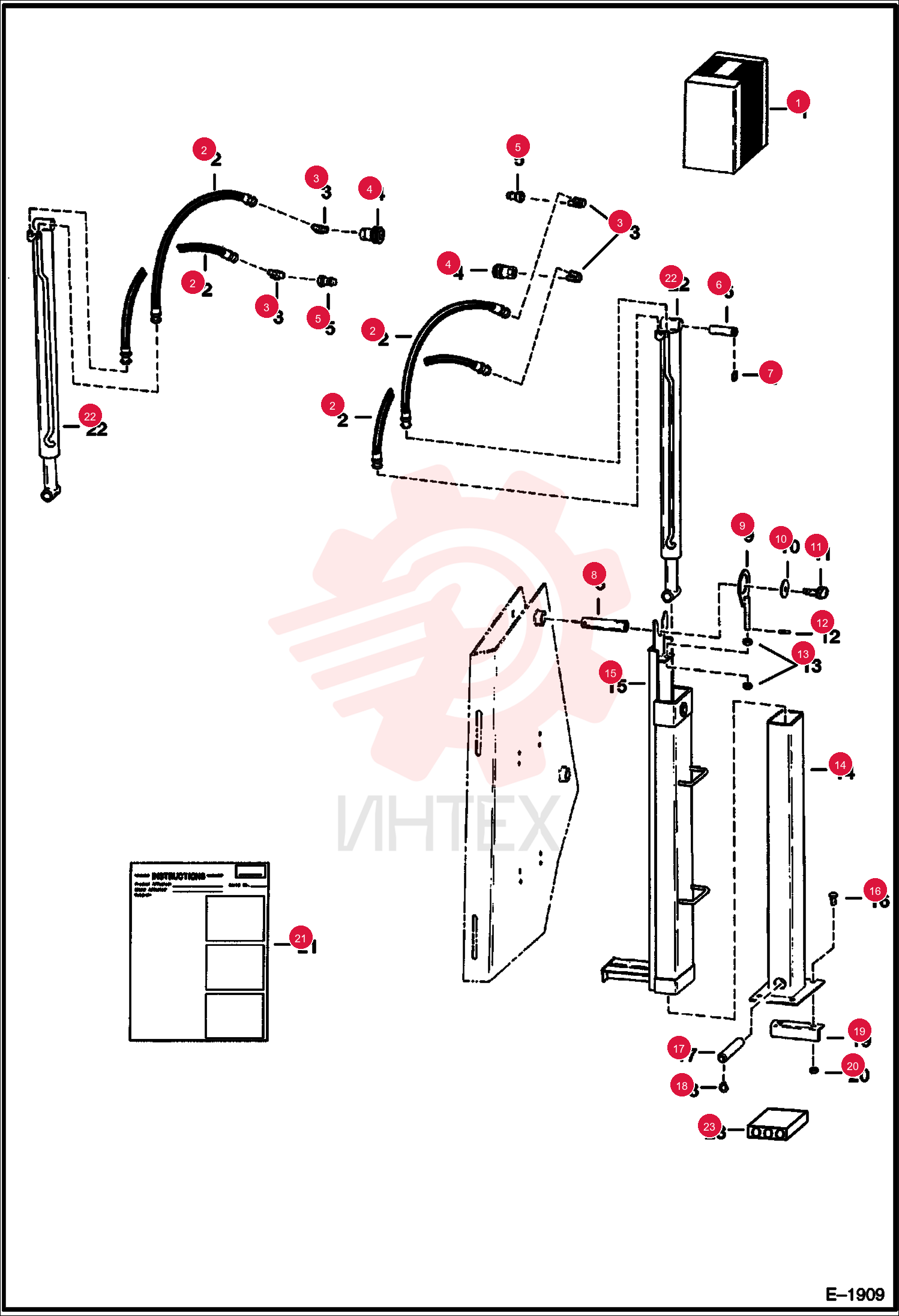

HOSE 6530884 (1)

HOSE 6530884 (1)

HOSE 6530884 (1)

1 6530884

  • 6530884 - HOSE
  • Was 5207800B

2 83F5

  • 83F5 - ELBOW
  • Use with poppet couplers

3 17K5

  • 17K5 - ELBOW
  • Use with flush face couplers

4 2342026

  • 2342026 - COUPLING
  • female - poppet

5 7246786

  • 7246786 - COUPLER
  • FF FEMALE
  • - Was 6667803

6 2341398

  • 2341398 - COUPLER
  • male - poppet

7 7246787

  • 7246787 - COUPLER
  • FF MALE
  • - Was 6667804

8 6669657

  • 6669657 - SEAL KIT

9 6560668

  • 6560668 - PIN

10 23J16

  • 23J16 - SNAP RING
  • Was 662770B

11 6567072

  • 6567072 - PIN

12 6703819

  • 6703819 - RETAINER
  • Was 6578760

13 6564692

  • 6564692 - WASHER

14 17C816

  • 17C816 - BOLT

15 14J1214

  • 14J1214 - ROLL PIN

16 61D10

  • 61D10 - NUT

17 6560664

  • 6560664 - TUBE ASSEMBLY

18 6578757

  • 6578757 - CHANNEL
  • LH
  • L.H.

19 6578759

  • 6578759 - CHANNEL
  • RH
  • R.H.

20 17C824

  • 17C824 - BOLT 5

21 6560669

  • 6560669 - PIN

22 6538286

  • 6538286 - RING
  • SNAP
  • Was 1320431B

23 6560678

  • 6560678 - ANGLE

24 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

25 6566771

  • 6566771 - INSTRUCTIONS

26 6632446

  • 6632446 - STREETPAD
  • weld-on
