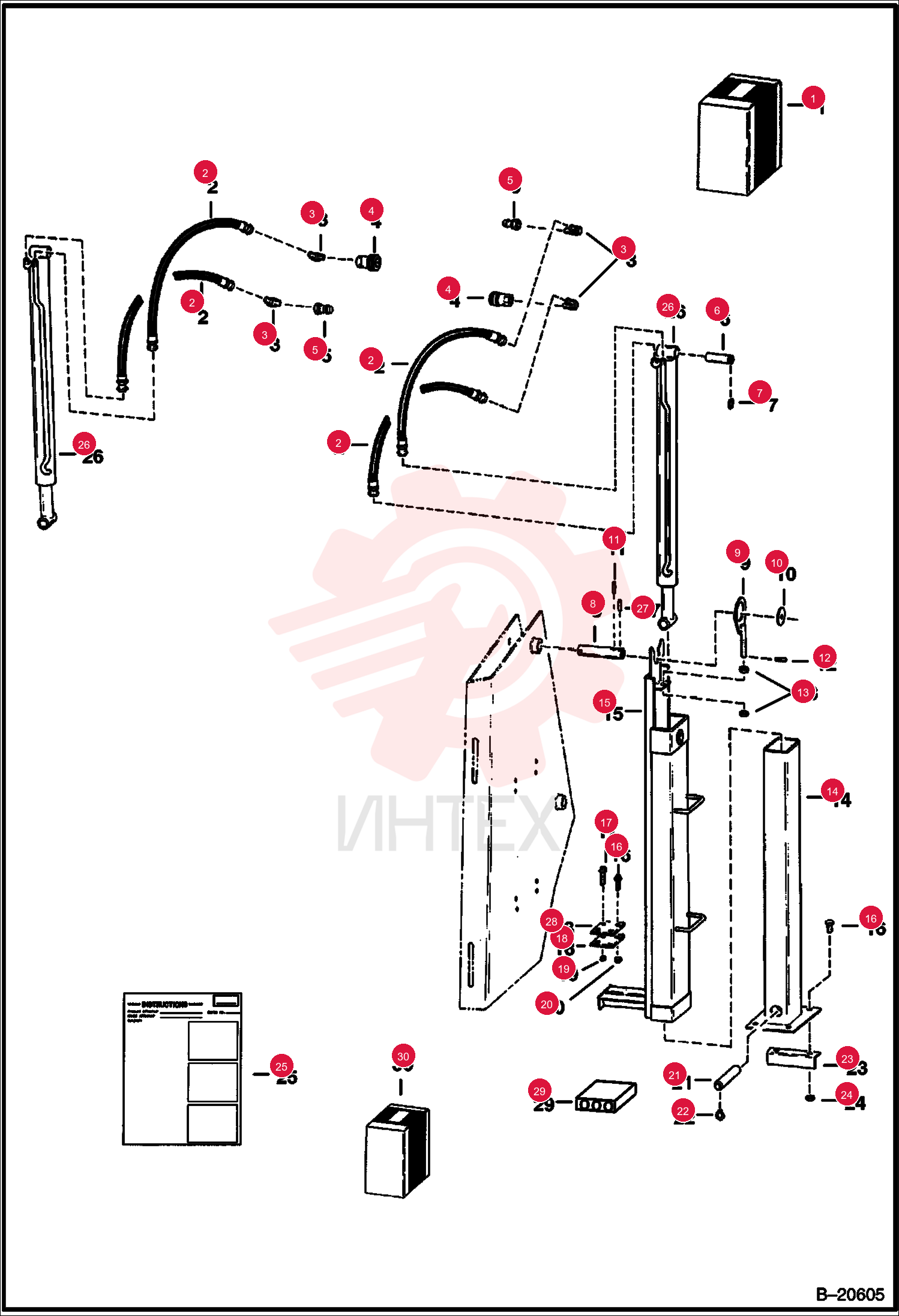

HOSE 6530884 (2)

HOSE 6530884 (2)

HOSE 6530884 (2)

1 6530884

  • 6530884 - HOSE
  • Was 5207800B

2 83F5

  • 83F5 - ELBOW
  • Use with poppet couplers

3 17K5

  • 17K5 - ELBOW
  • Use with flush face couplers

4 2342026

  • 2342026 - COUPLING
  • female - poppet

5 7246786

  • 7246786 - COUPLER
  • FF FEMALE
  • - Was 6667803

6 2341398

  • 2341398 - COUPLER
  • male - poppet

7 7246787

  • 7246787 - COUPLER
  • FF MALE
  • - Was 6667804

8 6669657

  • 6669657 - SEAL KIT

9 6560668

  • 6560668 - PIN

10 23J16

  • 23J16 - SNAP RING
  • Was 662770B

11 6578771

  • 6578771 - PIN
  • 5.62" long

12 6703819

  • 6703819 - RETAINER
  • Was 6578760

13 6578768

  • 6578768 - WASHER

14 14J3732

  • 14J3732 - PIN
  • STRAIGHT 5

15 14J1214

  • 14J1214 - ROLL PIN

16 61D10

  • 61D10 - NUT

17 6560664

  • 6560664 - TUBE ASSEMBLY

18 6578759

  • 6578759 - CHANNEL
  • RH
  • R.H.

19 6578757

  • 6578757 - CHANNEL
  • LH
  • L.H.

20 31C832

  • 31C832 - SCREW FLGD HEX CAP
  • Was 31C000824B

21 31C628

  • 31C628 - BOLT
  • Was 31C000624B

22 6704344

  • 6704344 - MOUNT
  • L.H. - Was 6703035

23 6704343

  • 6704343 - MOUNT
  • R.H. - Was 6703034

24 83D6

  • 83D6 - LKNUT HEX FLG GR8

25 83D8

  • 83D8 - LKNUT HEX FLG GR8

26 6560669

  • 6560669 - PIN

27 22J16

  • 22J16 - SNAP RING
  • Was 1320431B

28 6560678

  • 6560678 - ANGLE

29 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

30 6570919

  • 6570919 - INSTRUCTIONS

31 6560382

  • 6560382 - PIN
  • LOCK

32 6703816

  • 6703816 - SPACER

33 6632446

  • 6632446 - STREETPAD
  • weld on

34 6570919BR

  • 6570919BR - INSTRUCTIONS
  • translated

35 6570919AR

  • 6570919AR - INSTRUCTIONS
  • translated

36 6718959BR

  • 6718959BR - KIT
  • TRANSLATION
  • translation

37 6718959AR

  • 6718959AR - KIT
  • TRANSLATION
  • translation
