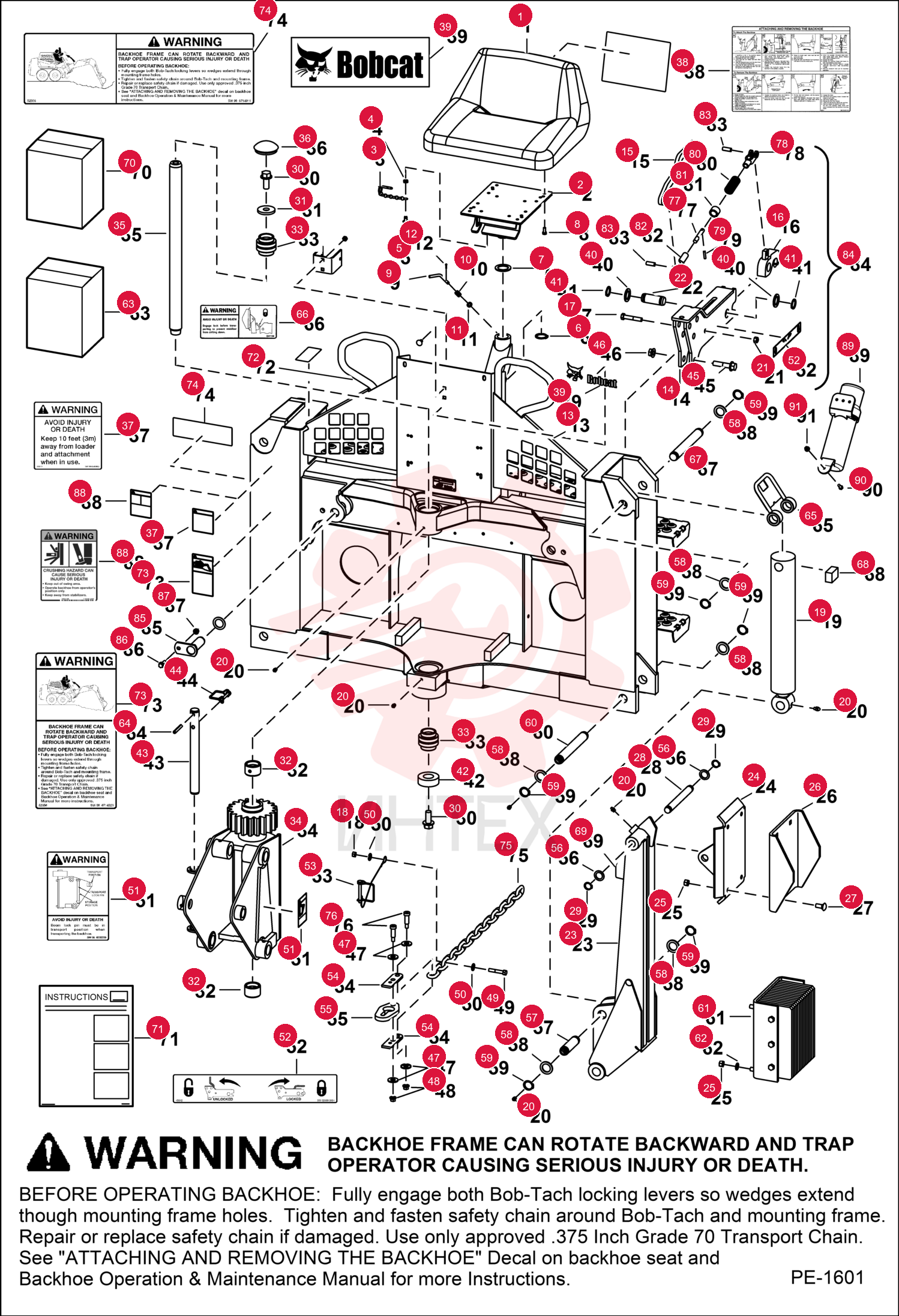

SEAT, OPERATOR VINYL 6643253 (5)
1 6643253
- 6643253 - SEAT
- OPERATOR VINYL
- Also Order Ref. 38 (6815156 decal)
2 6587384
- 6587384 - HINGE
- MOUNT SWIVEL
- Was 6534341
3 6511880
- 6511880 - PIN
4 7D6
- 7D6 - NUT
5 84G3712
- 84G3712 - SCREW THD ROLLING TT
6 22J24
- 22J24 - RING
- SNAP
- Was 6538285
7 6558680
- 6558680 - SPACER
8 17C512
- 17C512 - BOLT 5
9 6592836
- 6592836 - PIN
10 6610082
- 6610082 - SPRING
11 25E15
- 25E15 - WASHER FLAT PLAIN
12 1F308
- 1F308 - PIN
- COTTER
13 6812606
- 6812606 - FRAME
- BACKHOE 8811
14 7130776
- 7130776 - MAIN FRAME
15 6815171
- 6815171 - LATCH
- straight - Was 6814206
16 7200540
- 7200540 - LATCH
- RH - offset - Was 7153630
17 7200541
- 7200541 - LATCH
- LH - offset - Was 7155538
18 7172209
- 7172209 - LATCH
- BACKHOE
- Was 6815172
19 6816819
- 6816819 - LATCH
- Was 6812622
20 17C844
- 17C844 - BOLT
- Was 31C000644B
21 89D6
- 89D6 - NUT
- Was 85D6
22 10H25
- 10H25 - FTG GREASE STRAIGHT
23 85D8
- 85D8 - NUT PRETRQ HEX LOCK
- Was 57D000006B
24 6812834
- 6812834 - PIN
- PIVOT
25 6586820
- 6586820 - STABILIZER
26 6534650
- 6534650 - PAD
27 85D8
- 85D8 - NUT PRETRQ HEX LOCK
- Was 61D8
28 6560890
- 6560890 - CLEAT
29 37C820
- 37C820 - BOLT SQ NECK RND HD
30 6532841
- 6532841 - PIN
31 22J16
- 22J16 - SNAP RING
- Was 1320431B
32 49C1228
- 49C1228 - BOLT
- Was 31C1228
33 7112682
- 7112682 - WASHER
- Was 6552871
34 6656253
- 6656253 - BEARING
35 6656252
- 6656252 - BEARING
36 6806093
- 6806093 - FRAME
- SWING
37 6533318
- 6533318 - SHAFT
38 6656492
- 6656492 - CAP
39 6583862
- 6583862 - DECAL
- WARNING
- warning
40 7172327
- 7172327 - DECAL
- MOUNTING
- mounting instructions - Was 6815156
41 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
- Was 6727324
42 6532519
- 6532519 - WASHER
43 22J20
- 22J20 - SNAP RING
- Was 6538287
44 6532631
- 6532631 - WASHER
45 6593895
- 6593895 - LOCK
- BOOM
- boom lock
46 6510020
- 6510020 - PIN
- LOCK
47 17C1244
- 17C1244 - BOLT
48 85D12
- 85D12 - NUT
- 5
49 27E8
- 27E8 - WASHER 10
50 89D6
- 89D6 - NUT
- Was 53D6
51 17C636
- 17C636 - BOLT
52 27E6
- 27E6 - WASHER HARDEN PLAIN
53 6535259
- 6535259 - DECAL
- WARNING
54 6815155
- 6815155 - DECAL
- Was 6812677
55 6815154
- 6815154 - DECAL
- Was 6812676
56 6661838
- 6661838 - PIN
- HITCH
57 6714869
- 6714869 - LATCH
58 6714868
- 6714868 - BRACKET
59 6573567
- 6573567 - WASHER
60 6587520
- 6587520 - PIN
- W/grease zerk hole
61 6534954
- 6534954 - PIN
- W/O grease zerk hole
62 6532519
- 6532519 - WASHER
63 6650680
- 6650680 - 6538287
64 6587521
- 6587521 - PIN
65 6632445
- 6632445 - PAD
- STREET ASSY
- street
66 25E21
- 25E21 - WASHER FLAT PLAIN
67 7302293
- 7302293 - KIT PIVOT BOB-TACH
- W/ (1) PN 7255136
- (1) 7252989
- (1) 14J5032
68 6813057BR
- 6813057BR - KIT
- DECAL TRANSLATION
- Portugese (Brazil)
69 6813057AR
- 6813057AR - KIT
- DECAL TRANSLATION
- Spanish (Argentina)
70 14J3740
- 14J3740 - PIN
71 6586789
- 6586789 - LOCK
72 6587106
- 6587106 - DECAL
- WARNING
73 6536985
- 6536985 - PIN
74 6586499
- 6586499 - STOP
75 6586792
- 6586792 - HOOK
76 6722159
- 6722159 - LOCK KIT
- stab. hook - Ref. 65-69 & 71
77 6722160
- 6722160 - INSTRUCTIONS
- for Ref. 70
78 6714920
- 6714920 - DECAL
- WARNING
79 6714911
- 6714911 - DECAL
- WARNING
80 6714935
- 6714935 - CHAIN
- 1397 mm (55" long - chain only - Use only approved .375 inch grade 70 transport chain
81 38C820
- 38C820 - SCREW
82 6533158
- 6533158 - ROD
83 6533159
- 6533159 - CLEVIS
84 14J2520
- 14J2520 - PIN
85 6578253
- 6578253 - SPRING
- COMPRESSION
86 14J5020
- 14J5020 - PIN
- ROLL
87 6815177
- 6815177 - LATCH ASSEMBLY
- W/Ref. 14-17
- 21
- 22
- 40
- 41
- 77-83 - straight
88 6532869
- 6532869 - PIN
89 84G3728
- 84G3728 - SCREW THD ROLLING TT
- Was 84G3720
90 89D6
- 89D6 - NUT
- Was 55D6
91 7166144
- 7166144 - DECAL
- WARNING
92 7108147
- 7108147 - CONTAINER
- MANUAL
- W/ 6686517 tube
93 17C514
- 17C514 - BOLT
94 83D5
- 83D5 - LKNUT HEX FLG GR8
