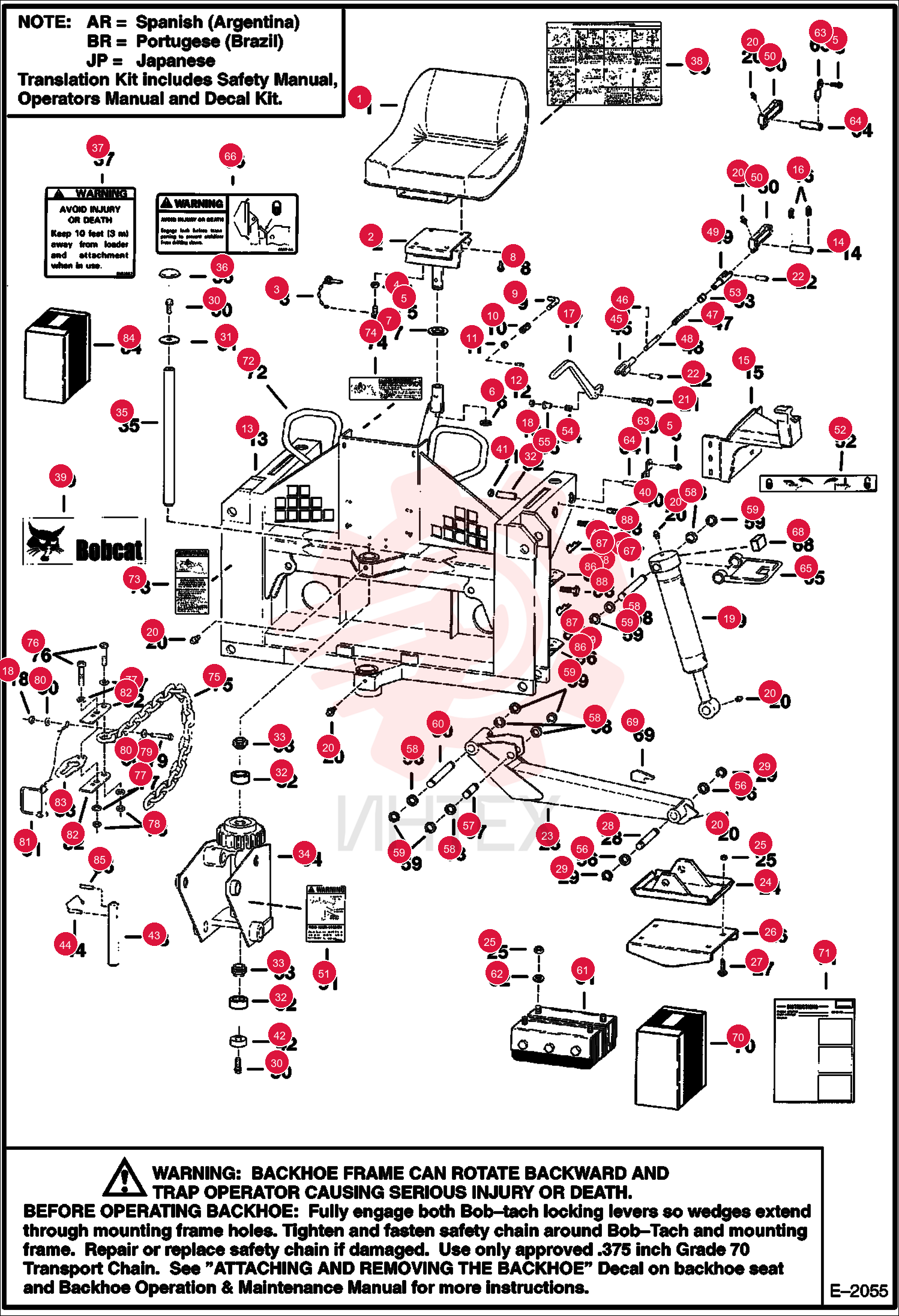

SEAT, OPERATOR VINYL 6643253 (6)
1 6643253
- 6643253 - SEAT
- OPERATOR VINYL
- W/O adj. track - Also Order Ref. 38 (6714915 decal) - Was 6591598
2 6587384
- 6587384 - HINGE
- MOUNT SWIVEL
- Was 6534341
3 6511880
- 6511880 - PIN
4 7D6
- 7D6 - NUT
5 84G3712
- 84G3712 - SCREW THD ROLLING TT
6 22J24
- 22J24 - RING
- SNAP
- Was 6538285
7 6558680
- 6558680 - SPACER
8 17C512
- 17C512 - BOLT 5
- Was 17C000516B
9 6592836
- 6592836 - PIN
10 6610082
- 6610082 - SPRING
11 25E15
- 25E15 - WASHER FLAT PLAIN
12 1F308
- 1F308 - PIN
- COTTER
13 6533178
- 6533178 - PIN
14 23J16
- 23J16 - SNAP RING
- Was 662770B
15 6805822
- 6805822 - HANDLE
- Was 6533163
16 85D6
- 85D6 - NUT PRETRQ HEX LOCK
17 10H25
- 10H25 - FTG GREASE STRAIGHT
18 17C680
- 17C680 - BOLT
19 17C660
- 17C660 - BOLT
20 14J5032
- 14J5032 - PIN CSPR STRAIGHT
21 6586820
- 6586820 - STABILIZER
- Also Order 57 & 60 - Was 6534649
22 6534650
- 6534650 - PAD
23 61D8
- 61D8 - NUT 5
24 6560890
- 6560890 - CLEAT
25 37C820
- 37C820 - BOLT SQ NECK RND HD
- Was 6560578
26 6532841
- 6532841 - PIN
27 22J16
- 22J16 - SNAP RING
- Was 1320431
28 31C1228
- 31C1228 - BOLT
29 7112682
- 7112682 - WASHER
- Was 6552871
30 6656253
- 6656253 - BEARING
- Was 6534351
31 6656252
- 6656252 - BEARING
32 6806093
- 6806093 - FRAME
- SWING
- Was 6533297
33 6533318
- 6533318 - SHAFT
34 6656492
- 6656492 - CAP
35 7166144
- 7166144 - DECAL
- WARNING
- warning - Was 6583862
36 6714915
- 6714915 - DECAL
- MOUNTING
- mounting instr. - Was 6536325
37 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
- Was 6727324
38 17C868
- 17C868 - BOLT
39 85D8
- 85D8 - NUT PRETRQ HEX LOCK
40 6532631
- 6532631 - WASHER
41 6593895
- 6593895 - LOCK
- BOOM
- boom lock - Was 6531439
42 6510020
- 6510020 - PIN
- LOCK
43 6533159
- 6533159 - CLEVIS
44 14J2520
- 14J2520 - PIN
45 6578253
- 6578253 - SPRING
- COMPRESSION
46 6533158
- 6533158 - ROD
47 6704248
- 6704248 - PIVOT
- WEDGE
48 6586377
- 6586377 - STOP
- Was 6533115
49 6535259
- 6535259 - DECAL
- WARNING
50 6535897
- 6535897 - DECAL
- R.H.
51 6535896
- 6535896 - DECAL
- L.H.
52 6533160
- 6533160 - BUSHING
53 6704453
- 6704453 - SPRING COMPRESSION
- Was 6578252
54 6586315
- 6586315 - PIVOT
55 6575636
- 6575636 - PIVOT
- LEV
56 6573567
- 6573567 - WASHER
57 6587520
- 6587520 - PIN
- Was 6534954
58 6532519
- 6532519 - WASHER
59 6650680
- 6650680 - 6538287
60 6587521
- 6587521 - PIN
- Was 6536985
61 6632445
- 6632445 - PAD
- STREET ASSY
- street
62 25E21
- 25E21 - WASHER FLAT PLAIN
63 6586307
- 6586307 - RETAINER
64 6586308
- 6586308 - PIN
65 6586789
- 6586789 - LOCK
66 6587106
- 6587106 - DECAL
- WARNING
67 6536985
- 6536985 - PIN
68 6586499
- 6586499 - STOP
69 6586792
- 6586792 - HOOK
70 6722159
- 6722159 - LOCK KIT
- stab. hook - W/Ref. 65-69 & 71
71 6722160
- 6722160 - INSTRUCTIONS
- for Ref. 70
72 6714920
- 6714920 - DECAL
- WARNING
73 6714911
- 6714911 - DECAL
- WARNING
74 6714935
- 6714935 - CHAIN
- 55" (1397 mm) long - chain only - use only approved .375 inch grade 70 transport chain
75 38C820
- 38C820 - SCREW
76 27E8
- 27E8 - WASHER 10
77 53D6
- 53D6 - NUT
78 17C636
- 17C636 - BOLT
79 27E6
- 27E6 - WASHER HARDEN PLAIN
80 6661838
- 6661838 - PIN
- HITCH
81 6714869
- 6714869 - LATCH
82 6714868
- 6714868 - BRACKET
83 6713635BR
- 6713635BR - KIT
- TRANSLATION
- translation - SEE NOTE
84 6713635AR
- 6713635AR - KIT
- TRANSLATION
- translation - SEE NOTE
85 6713634JP
- 6713634JP - KIT
- DECAL
- decal - SEE NOTE
86 6713634BR
- 6713634BR - KIT
- DECAL
- decal - SEE NOTE
87 6713634AR
- 6713634AR - KIT
- DECAL
- decal - SEE NOTE
88 14J3740
- 14J3740 - PIN
89 7232349
- 7232349 - STEP
- MFR
- Was 7138104
90 1306637
- 1306637 - PIN HAIR
91 84G3110
- 84G3110 - SCREW
