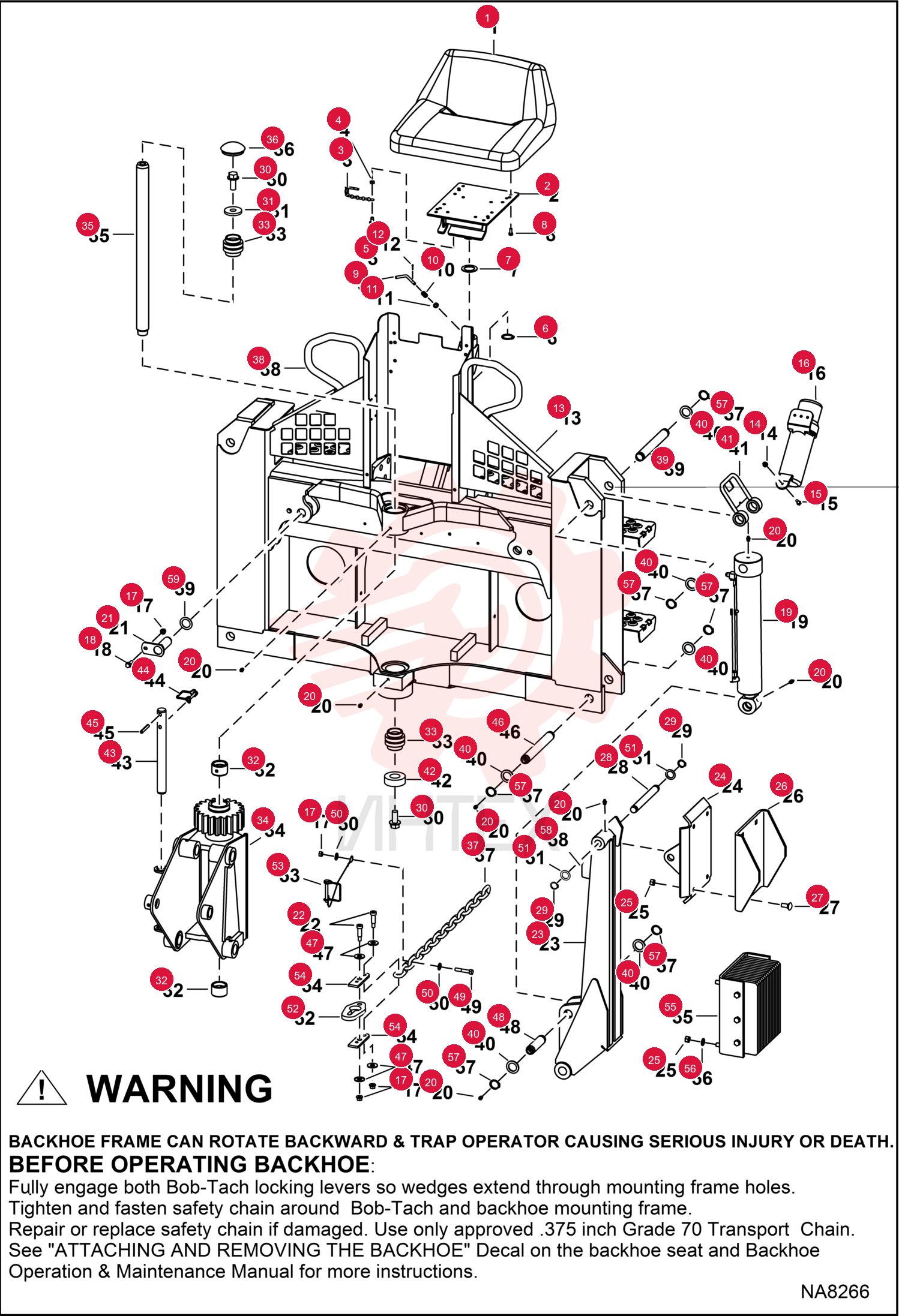

SEAT, OPERATOR VINYL 6643253 (4)
1 6643253
- 6643253 - SEAT
- OPERATOR VINYL
- Also order 7172327 mounting decal
2 6587384
- 6587384 - HINGE
- MOUNT SWIVEL
3 6511880
- 6511880 - PIN
4 7D6
- 7D6 - NUT
5 84G3712
- 84G3712 - SCREW THD ROLLING TT
6 22J24
- 22J24 - RING
- SNAP
7 6558680
- 6558680 - SPACER
8 17C512
- 17C512 - BOLT 5
9 6592836
- 6592836 - PIN
10 6610082
- 6610082 - SPRING
11 25E15
- 25E15 - WASHER FLAT PLAIN
12 1F308
- 1F308 - PIN
- COTTER
13 7130776
- 7130776 - MAIN FRAME
14 83D5
- 83D5 - LKNUT HEX FLG GR8
15 17C514
- 17C514 - BOLT
16 7108147
- 7108147 - CONTAINER
- MANUAL
- W/ 6686517 tube
17 89D6
- 89D6 - NUT
18 84G3728
- 84G3728 - SCREW THD ROLLING TT
19 10H25
- 10H25 - FTG GREASE STRAIGHT
20 6532869
- 6532869 - PIN
21 38C820
- 38C820 - SCREW
22 6586820
- 6586820 - STABILIZER
- W/Ref. 58
23 6534650
- 6534650 - PAD
24 85D8
- 85D8 - NUT PRETRQ HEX LOCK
25 6560890
- 6560890 - CLEAT
26 37C820
- 37C820 - BOLT SQ NECK RND HD
27 6532841
- 6532841 - PIN
28 22J16
- 22J16 - SNAP RING
29 49C1228
- 49C1228 - BOLT
30 7112682
- 7112682 - WASHER
31 6656253
- 6656253 - BEARING
32 6656252
- 6656252 - BEARING
33 6806093
- 6806093 - FRAME
- SWING
34 6533318
- 6533318 - SHAFT
35 6656492
- 6656492 - CAP
36 6714935
- 6714935 - CHAIN
- 1397 mm (55" long) chain only - Use only approved .375 inch grade 70 transport chain
37 6536985
- 6536985 - PIN
38 6532519
- 6532519 - WASHER
39 6586789
- 6586789 - LOCK
40 6532631
- 6532631 - WASHER
41 6593895
- 6593895 - LOCK
- BOOM
- boom lock
42 6510020
- 6510020 - PIN
- LOCK
43 14J3740
- 14J3740 - PIN
44 6587521
- 6587521 - PIN
45 27E8
- 27E8 - WASHER 10
46 6534954
- 6534954 - PIN
47 17C636
- 17C636 - BOLT
48 27E6
- 27E6 - WASHER HARDEN PLAIN
49 6573567
- 6573567 - WASHER
50 6714868
- 6714868 - BRACKET
51 6661838
- 6661838 - PIN
- HITCH
52 6714869
- 6714869 - LATCH
53 6632445
- 6632445 - PAD
- STREET ASSY
- street
54 25E21
- 25E21 - WASHER FLAT PLAIN
55 22J20
- 22J20 - SNAP RING
56 6586792
- 6586792 - HOOK
57 6528927
- 6528927 - WASHER
