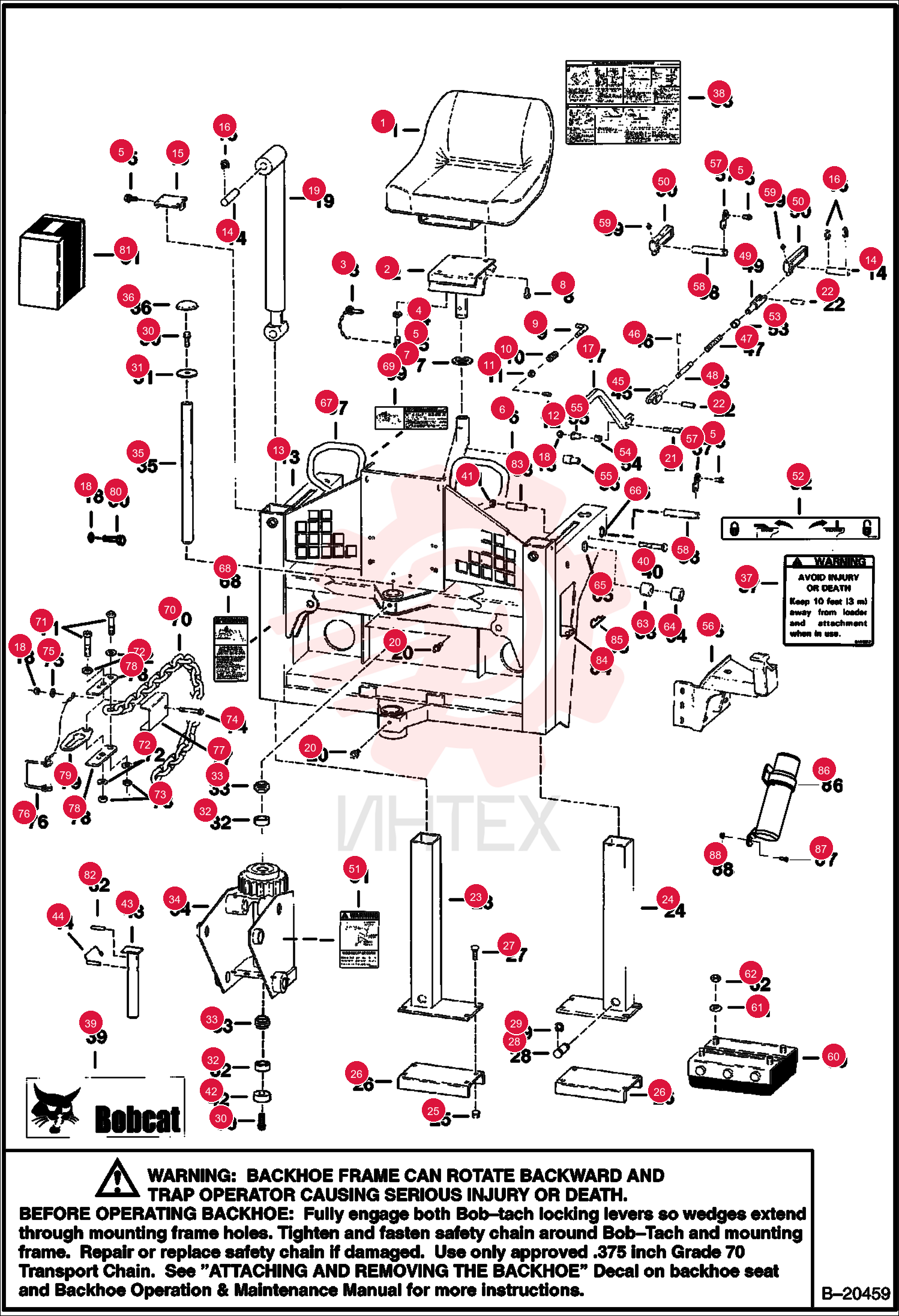

SEAT, OPERATOR VINYL 6643253 (2)
1 6643253
- 6643253 - SEAT
- OPERATOR VINYL
- W/O adj. track - 7.25 in. x 7.00 in. (184 x 178 mm) hole spacing - Also Order Ref. 38 (6714915 decal)
2 6587384
- 6587384 - HINGE
- MOUNT SWIVEL
- Was 6534341
3 6511880
- 6511880 - PIN
4 7D6
- 7D6 - NUT
5 84G3712
- 84G3712 - SCREW THD ROLLING TT
6 22J24
- 22J24 - RING
- SNAP
- Was 6538285
7 6558680
- 6558680 - SPACER
8 17C512
- 17C512 - BOLT 5
- Was 17C000516B
9 6592836
- 6592836 - PIN
10 6610082
- 6610082 - SPRING
11 25E15
- 25E15 - WASHER FLAT PLAIN
12 1F308
- 1F308 - PIN
- COTTER
13 6538675
- 6538675 - FRAME BACKHOE
- Was 6532834
14 7130749
- 7130749 - MAIN FRAME
15 6533178
- 6533178 - PIN
- 1.00" (25.4mm) dia. x 4.00" (101.2 mm) long
16 6533029
- 6533029 - CAP
17 23J16
- 23J16 - SNAP RING
- Was 662770B
18 6805822
- 6805822 - HANDLE
- Was 6533163
19 89D6
- 89D6 - NUT
20 10H25
- 10H25 - FTG GREASE STRAIGHT
21 17C660
- 17C660 - BOLT
22 17C680
- 17C680 - BOLT
23 14J5032
- 14J5032 - PIN CSPR STRAIGHT
24 6532680
- 6532680 - STABILIZER
- R.H.
25 6533011
- 6533011 - STABILIZER
- L.H.
26 85D8
- 85D8 - NUT PRETRQ HEX LOCK
- Was 55D8
27 6531990
- 6531990 - CLEAT
28 37C820
- 37C820 - BOLT SQ NECK RND HD
- Was 6560578
29 6560669
- 6560669 - PIN
30 22J16
- 22J16 - SNAP RING
- Was 6538286
31 49C1228
- 49C1228 - BOLT
- Was 31C001228B
32 6534555
- 6534555 - WASHER
33 6513682
- 6513682 - RACE
34 6519337
- 6519337 - BEARING ASSEMBLY
35 6712763
- 6712763 - FRAME
- BACKHOE 709
- swing - Was 6532793
36 6532635
- 6532635 - SHAFT
37 6598371
- 6598371 - CAP
38 7166144
- 7166144 - DECAL
- WARNING
- warning - Was 6583862
39 6714915
- 6714915 - DECAL
- MOUNTING
- mounting instructions - Was 6536325
40 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
- Was 6727324
41 17C868
- 17C868 - BOLT
42 85D8
- 85D8 - NUT PRETRQ HEX LOCK
43 6532631
- 6532631 - WASHER
44 6593895
- 6593895 - LOCK
- BOOM
- boom lock - Was 6531439
45 6510020
- 6510020 - PIN
- LOCK
46 6533159
- 6533159 - CLEVIS
47 14J2520
- 14J2520 - PIN
48 6578253
- 6578253 - SPRING
- COMPRESSION
49 6533158
- 6533158 - ROD
50 6704248
- 6704248 - PIVOT
- WEDGE
51 6586377
- 6586377 - STOP
- Was 6533115
52 6535259
- 6535259 - DECAL
- WARNING
53 6535896
- 6535896 - DECAL
- R.H.
54 6535897
- 6535897 - DECAL
- L.H.
55 6533160
- 6533160 - BUSHING
56 6704453
- 6704453 - SPRING COMPRESSION
- Was 6578252
57 6575636
- 6575636 - PIVOT
- LEV
58 6586315
- 6586315 - PIVOT
59 6586307
- 6586307 - RETAINER
60 6586308
- 6586308 - PIN
- 1.00" (25
- 4 mm) dia. x 4.60" (101
- 2 mm) long
61 10H25
- 10H25 - FTG GREASE STRAIGHT
62 6660164
- 6660164 - PAD
- STREET
- street
63 25E22
- 25E22 - WASHER
64 61D8
- 61D8 - NUT 5
65 6586316
- 6586316 - BUSHING
66 6586323
- 6586323 - BUSHING
67 6533176
- 6533176 - BUSHING
68 6533177
- 6533177 - BUSHING
69 6714920
- 6714920 - DECAL
- WARNING
70 6714911
- 6714911 - DECAL
- WARNING
71 6714935
- 6714935 - CHAIN
- 55" (1245 mm) long - chain only - use only approved .375 inch grade 70 transport chain - Was 6714867
72 38C820
- 38C820 - SCREW
73 27E8
- 27E8 - WASHER 10
74 89D6
- 89D6 - NUT
- Was 53D6
75 17C636
- 17C636 - BOLT
76 27E6
- 27E6 - WASHER HARDEN PLAIN
77 6661838
- 6661838 - PIN
- HITCH
78 6714839
- 6714839 - GUIDE
- CHAIN
79 6714869
- 6714869 - LATCH
80 6714868
- 6714868 - BRACKET
81 17C612
- 17C612 - SCREW HEX CAP
82 6713630AR
- 6713630AR - KIT
- DECAL
- decal - SEE NOTE
83 6713630BR
- 6713630BR - KIT
- DECAL
- decal - SEE NOTE
84 6713630JP
- 6713630JP - KIT
- DECAL
- decal - SEE NOTE
85 6713631AR
- 6713631AR - KIT
- TRANSLATION
- translation - SEE NOTE
86 6713631BR
- 6713631BR - KIT
- TRANSLATION
- translation - SEE NOTE
87 14J3740
- 14J3740 - PIN
88 6534351
- 6534351 - BUSHING
89 7118021
- 7118021 - STEP
- Was 6805450
90 1306637
- 1306637 - PIN HAIR
91 7108147
- 7108147 - CONTAINER
- MANUAL
- W/ 6686517 tube
92 17C514
- 17C514 - BOLT
93 83D5
- 83D5 - LKNUT HEX FLG GR8
