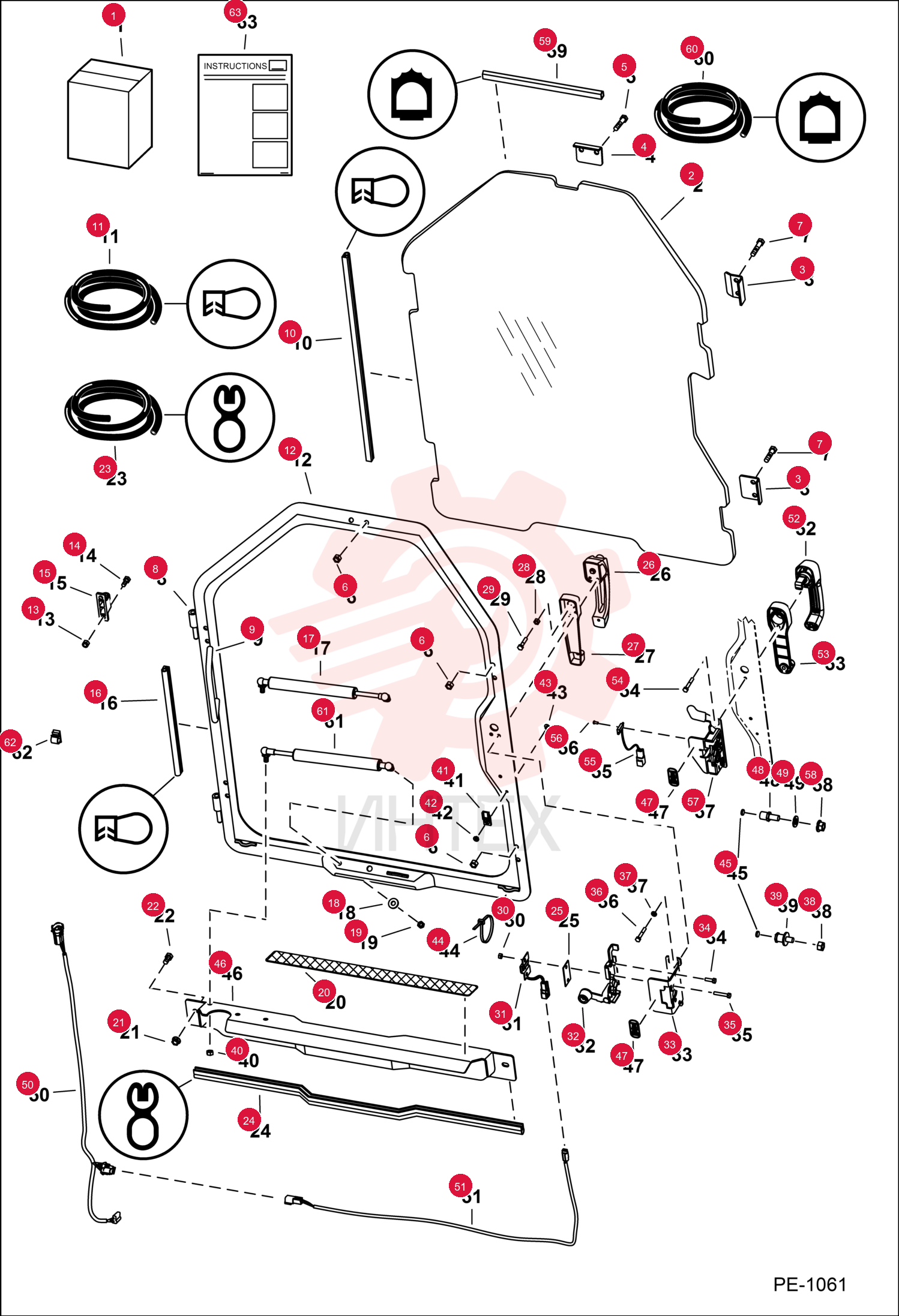

KIT, DOOR 6726420
1 6726420
- 6726420 - KIT
- DOOR
- door - Ref. 2-24 & 40-63
2 6732351
- 6732351 - WINDOW
- DOOR CURVED CAB
- 0.5" thick polycarbonate - W/top notch
3 6725938
- 6725938 - CLAMP
4 6725937
- 6725937 - CLAMP
5 17C628
- 17C628 - BOLT
6 95D6
- 95D6 - NUT HEXAGON
7 17C624
- 17C624 - BOLT 5
8 6718376
- 6718376 - HINGE
- door
9 7138347
- 7138347 - HANDLE
- grab - Was 6718521
10 7011039
- 7011039 - SEAL
- BULK/FT 34
- sold per foot - Was 6675558
11 7110430
- 7110430 - SPECIAL APPS DOOR
- Uses 2 bolt mount handle - W/Ref. 8 & 9
12 59D5
- 59D5 - NUT LOCK HEX PT
13 17C512
- 17C512 - BOLT 5
14 6717593
- 6717593 - HINGE
- base
15 6649245
- 6649245 - CLIP
- spring
16 6649244
- 6649244 - BALL STUD
17 6678548
- 6678548 - Socket
- ball
18 25E16
- 25E16 - WASHER FLAT PLAIN
19 46D5
- 46D5 - NUT LOW CROWN ACORN
- acorn
20 6542731
- 6542731 - TREAD
- SAFETY
21 55D6
- 55D6 - NUT
22 17C612
- 17C612 - SCREW HEX CAP
23 6513152
- 6513152 - SEAL
- BULK/FT 25
- bulk - sold per foot
24 6718520
- 6718520 - COVER
- latch
25 6693241
- 6693241 - KEY (2)
- ignition - single key W/O ring
26 61D4
- 61D4 - NUT 5
- For 3 bolt mount handle
27 1CM630
- 1CM630 - SCREW HEX HD 8.8
- For 3 bolt mount handle
28 17C420
- 17C420 - BOLT
- For 3 bolt mount handle
29 1DM6
- 1DM6 - NUT
- For 2 bolt mount handle - Was 4DM6
30 1DM6
- 1DM6 - NUT
- For 2 bolt mount handle - Was 4DM6
31 6731212
- 6731212 - SENSOR
- DOOR
- Use W/Ref. 32
32 6717369
- 6717369 - BRACKET
- Use W/Ref. 32
33 4CM620
- 4CM620 - BOLT
- Use W/ 3 bolt mount handle - Was 1CM620
34 1CM635
- 1CM635 - BOLT
- For 3 bolt mount handle
35 1CM640
- 1CM640 - SCREW HEX CAP
- For 3 bolt mount handle
36 6EM60
- 6EM60 - WASHER
- For 3 bolt mount handle
37 91D7
- 91D7 - NUT
- 7/16" thread - Use W/Ref. 39 (NLA 6677194 striker bolt)
38 6649483
- 6649483 - BOLT
- 7/16" thread - W/O sensor - Was 6654170
39 61D5
- 61D5 - NUT HEX FINISHED GR5
40 6665000
- 6665000 - BRACKET MOUNTING
41 6665321
- 6665321 - RIVET PLASTIC MALE
- male - plastic
42 6665322
- 6665322 - RIVET PLASTIC FEMALE
- female - plastic
43 6624289
- 6624289 - STRAP
- TIE
- Use W/doors W/welded-on retainers
44 6677192
- 6677192 - SENSOR
- MAGNETIC
45 6725171
- 6725171 - SHIELD
46 7109664
- 7109664 - BOLT
- striker - 12 mm thread - Use W/ latch W/sensor
47 18EM1224
- 18EM1224 - WASHER HARDENED PLN
- Use W/Ref. 48
48 7106277
- 7106277 - WIPER HARNESS
- wiper
49 7104465
- 7104465 - DOOR SWITCH HARNESS
- door sensor
50 7109662
- 7109662 - HANDLE
- LATCH DOOR
- 2 bolt mount
51 7109663
- 7109663 - SPACER
- 2 bolt mount
52 1CM640
- 1CM640 - SCREW HEX CAP
- For 2 bolt mount handle
53 6728459
- 6728459 - SENSOR
- DOOR
- Use W/Ref. 57 - Also Order (2) of Ref. 56
54 6677193
- 6677193 - RIVET
- plastic
55 7109661
- 7109661 - LATCH
- DOOR W/SENSOR
- 2 bolt mount - W/Ref. 55
56 51DM12
- 51DM12 - NUT
- 12 mm thread - Use W/Ref. 48
57 6670759
- 6670759 - SEAL
- BULK
- bulk - sold per foot
58 7157893
- 7157893 - GAS SPRING
59 6675378
- 6675378 - CLIP
- wire - W/adhesive back - Use W/doors W/O welded-on retainers
60 6901013
- 6901013 - INSTRUCTIONS
