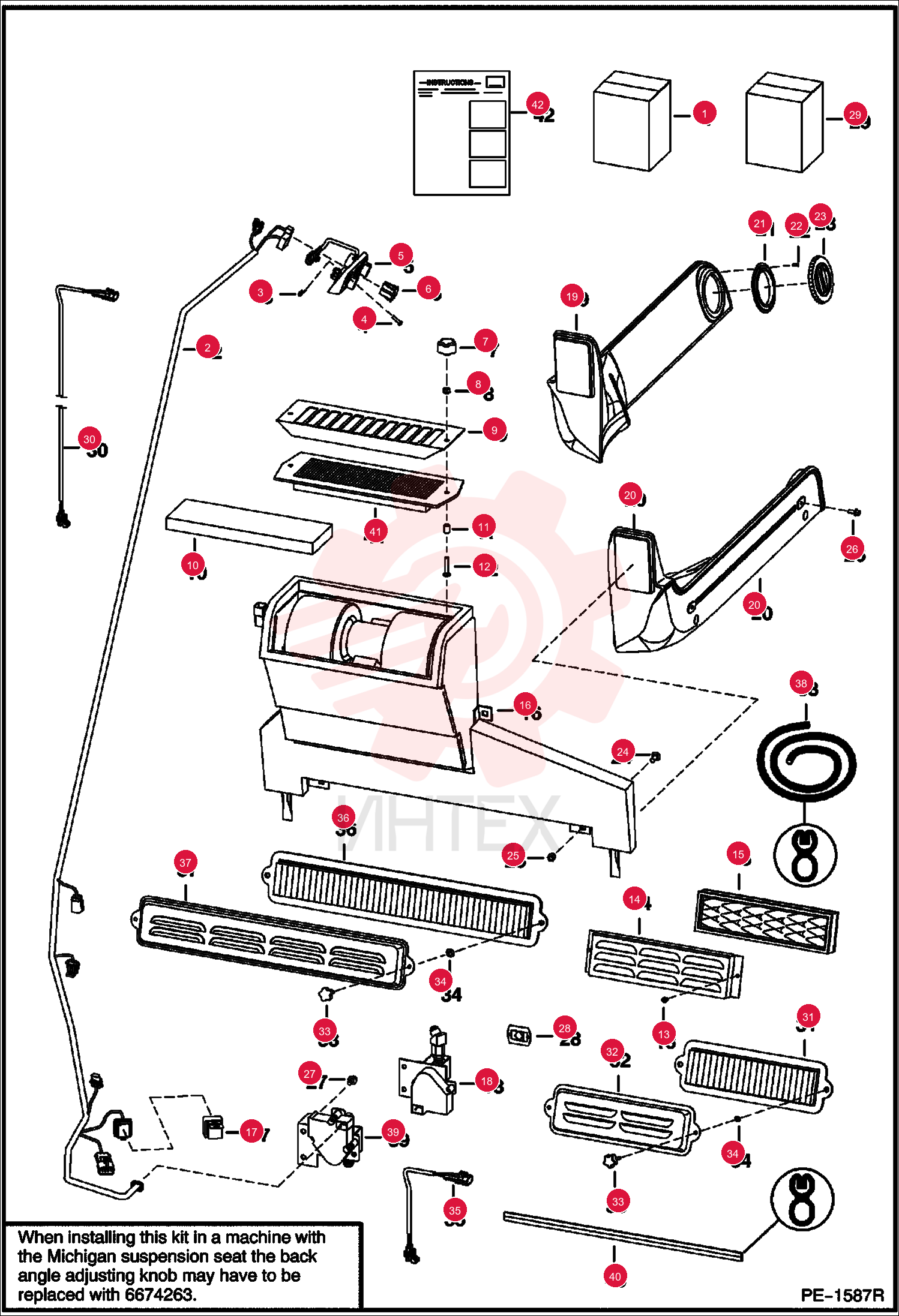

HARNESS, HVAC 6725933

HARNESS, HVAC 6725933

HARNESS, HVAC 6725933

1 6725933

  • 6725933 - HARNESS
  • HVAC
  • hvac - W/Ref. 17 - Was 6717877

2 6725273

  • 6725273 - HARNESS DLX ACC
  • AHC - not in kit

3 6669091

  • 6669091 - CLIP
  • retainer

4 6669224

  • 6669224 - TAP SCREW

5 6675846

  • 6675846 - POTENTIOMETER
  • Was 6675178

6 6675177

  • 6675177 - KNOB

7 6675176

  • 6675176 - SWITCH
  • blower

8 6718887

  • 6718887 - PANEL HEATER
  • A/C

9 6718579

  • 6718579 - DECAL

10 6640699

  • 6640699 - CONNECTOR METRI PACK

11 6674228

  • 6674228 - PANEL
  • CONTROL
  • control

12 6675181

  • 6675181 - PLUG SWITCH HOLE

13 6681614

  • 6681614 - KNOB
  • 0.69" deep thread

14 83D4

  • 83D4 - LKNUT HEX FLG GR8

15 6718175

  • 6718175 - SCREEN
  • FILTER HEATER
  • filter

16 6718837

  • 6718837 - SPACER

17 37C424

  • 37C424 - BOLT

18 87G1008

  • 87G1008 - SCREW

19 6670312

  • 6670312 - SWITCH
  • MAGNETIC
  • relay

20 6675172

  • 6675172 - BRACKET

21 6640699

  • 6640699 - CONNECTOR METRI PACK

22 6675173

  • 6675173 - ACTUATOR
  • pigtail

23 6680054

  • 6680054 - ACTUATOR
  • square plug

24 6677628

  • 6677628 - SHAFT ADAPTER

25 6675174

  • 6675174 - BODY

26 6735246

  • 6735246 - HVAC DUCT LEFT
  • LH - W/Ref. 21-23 - Was 6717644

27 6735245

  • 6735245 - HVAC DUCT RIGHT
  • RH - W/Ref. 21-23 - Was 6717643

28 6675179

  • 6675179 - FLANGE

29 57G608

  • 57G608 - SCREW

30 6674231

  • 6674231 - VENT
  • HEATER CAB ROUND
  • round

31 37C512

  • 37C512 - BOLT SQ NECK RND HD

32 59D5

  • 59D5 - NUT LOCK HEX PT

33 35C410

  • 35C410 - SCREW HEX HD W/F GR5

34 84G3110

  • 84G3110 - SCREW

35 774220

  • 774220 - NUT
  • spring

36 7121572

  • 7121572 - DECAL PACKAGE
  • Was 6725513

37 6725390

  • 6725390 - HARNESS
  • jumper - 72 in. (1828
  • 8 mm) long - HVAC to accessory harness

38 6727140

  • 6727140 - FILTER
  • AIR HEATER CAB

39 6726608

  • 6726608 - COVER

40 6726386

  • 6726386 - KNOB

41 6676516

  • 6676516 - NUT
  • PUSH
  • push

42 6725936

  • 6725936 - HARNESS
  • JUMPER
  • jumper - 8 in. (203
  • 2 mm) long - connects (6725933 Harness) to Ref. 39 (7100019 Valve)

43 6725934

  • 6725934 - HARNESS
  • HVAC JUMP
  • jumper - 4 in (101
  • 6 mm) long - connects (6725933 Harness) to Ref. 39 (7100019 Valve)

44 6677983

  • 6677983 - FILTER
  • AIR HEATER CAB

45 6727847

  • 6727847 - HEATER VENT COVER

46 6513152

  • 6513152 - SEAL
  • BULK/FT 25
  • bulk - sold per foot

47 7100019

  • 7100019 - VALVE
  • HEATER CAB
  • threaded hose connectors

48 6678207

  • 6678207 - FILTER
  • AIR HEATER CAB
  • recirculation

49 6900850

  • 6900850 - INSTRUCTIONS

50 6902356

  • 6902356 - INSTRUCTIONS
  • 800 series W/ kabota engine
