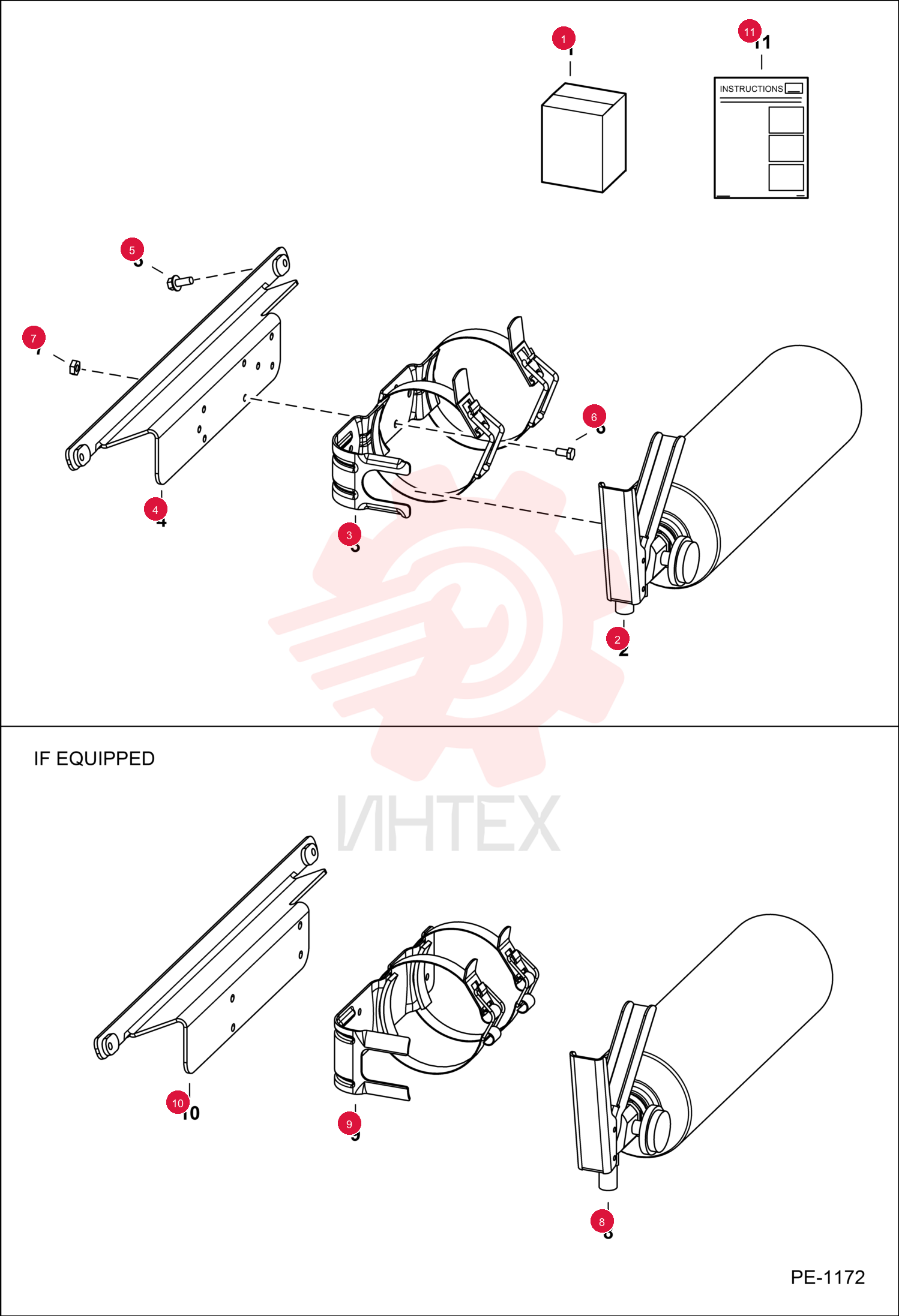

KIT, EXTINGUISHER FIRE 6725898

KIT, EXTINGUISHER FIRE 6725898

KIT, EXTINGUISHER FIRE 6725898

1 6725898

  • 6725898 - KIT
  • EXTINGUISHER FIRE
  • Ref. 2-7 & 11

2 7224664

  • 7224664 - EXTINGUISHER
  • FIRE
  • W/Ref. 3

3 7224665

  • 7224665 - BRACKET
  • EXTINGUISHER FIRE
  • red - diamond hole pattern - use W/Ref. 4

4 7223716

  • 7223716 - BRACKET
  • MOUNTING

5 31C410

  • 31C410 - BOLT

6 45G1006

  • 45G1006 - BOLT

7 12D10

  • 12D10 - NUT

8 6901025

  • 6901025 - INSTRUCTIONS
