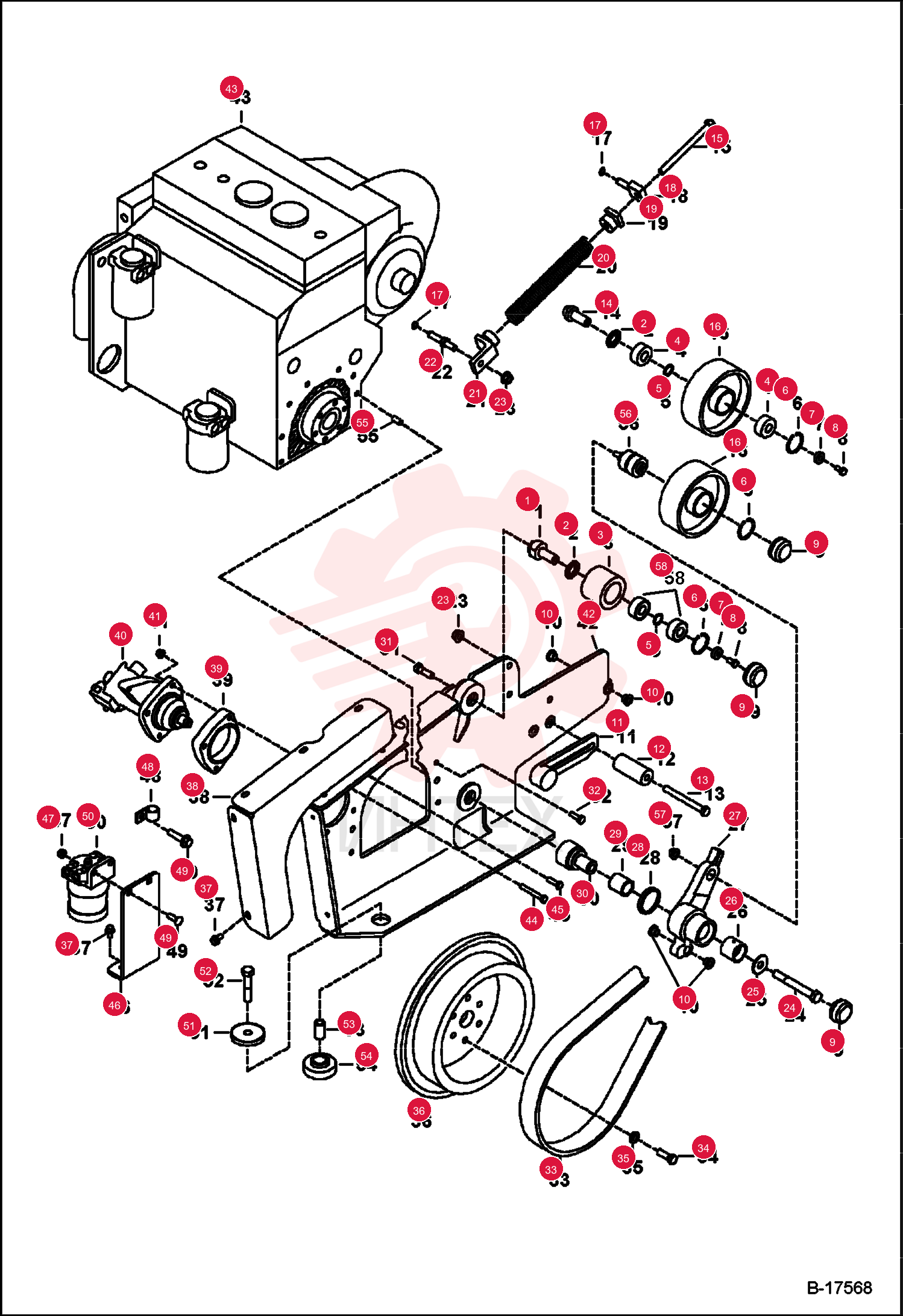

PIN 6800293 (1)

PIN 6800293 (1)

PIN 6800293 (1)

1 6800293

  • 6800293 - PIN
  • top idler

2 6800688

  • 6800688 - PULLEY
  • top idler

3 6665308

  • 6665308 - RING
  • RETAINER

4 6660967

  • 6660967 - CAP
  • GREASE
  • Use 6658266 grease - Was 6660697

5 1313116

  • 1313116 - BUSHING

6 6800238

  • 6800238 - STOP
  • idler

7 6801005

  • 6801005 - SPACER

8 17C880

  • 17C880 - BOLT

9 6707654

  • 6707654 - SPINDLE
  • spindle

10 6800450

  • 6800450 - BOLT

11 6800475

  • 6800475 - IDLER
  • drive

12 6518955

  • 6518955 - SNAP RING

13 6587182

  • 6587182 - SWVL PIN
  • swivel

14 6568425

  • 6568425 - ADAPTER

15 6569498

  • 6569498 - SPRING ASSEMBLY

16 6596850

  • 6596850 - BRACKET
  • idler

17 6596851

  • 6596851 - PIN
  • idler

18 55D8

  • 55D8 - NUT

19 17C1080

  • 17C1080 - SCREW

20 6596839

  • 6596839 - WASHER

21 6671035

  • 6671035 - BEARING

22 6802839

  • 6802839 - LINK IDLER
  • idler

23 6661377

  • 6661377 - SEAL

24 6802852

  • 6802852 - BEARING

25 6802854

  • 6802854 - LINK IDLER

26 17C828

  • 17C828 - BOLT
  • Was 1C-828

27 1CM1030

  • 1CM1030 - BOLT

28 6669565

  • 6669565 - BELT
  • DRIVE
  • drive

29 18C824

  • 18C824 - BOLT

30 6557929

  • 6557929 - WASHER

31 6800808

  • 6800808 - FLYWHEEL
  • engine

32 6515771

  • 6515771 - GEAR
  • RING

33 84G3712

  • 84G3712 - SCREW THD ROLLING TT

34 6596849

  • 6596849 - SHIELD
  • drive

35 6562480

  • 6562480 - BLOCK
  • starter

36 97D6

  • 97D6 - NUT 10

37 17C644

  • 17C644 - BOLT

38 17C620

  • 17C620 - BOLT

39 6800223

  • 6800223 - BRACKET
  • fuel filter

40 55D6

  • 55D6 - NUT

41 30H60

  • 30H60 - CLIP INSULATED

42 37C620

  • 37C620 - BOLT CARRIAGE
  • Was 35C000620B

43 6802984

  • 6802984 - WASHER

44 17C1248

  • 17C1248 - BOLT

45 6804742

  • 6804742 - TUBE SPCR
  • tube

46 6661785

  • 6661785 - MOUNT ENGINE
  • engine

47 6924344

  • 6924344 - DOWEL
  • Was 3725347

48 6691330

  • 6691330 - BEARING
  • idler

49 95D8

  • 95D8 - NUT

50 6661229

  • 6661229 - BEARING
  • BALL
