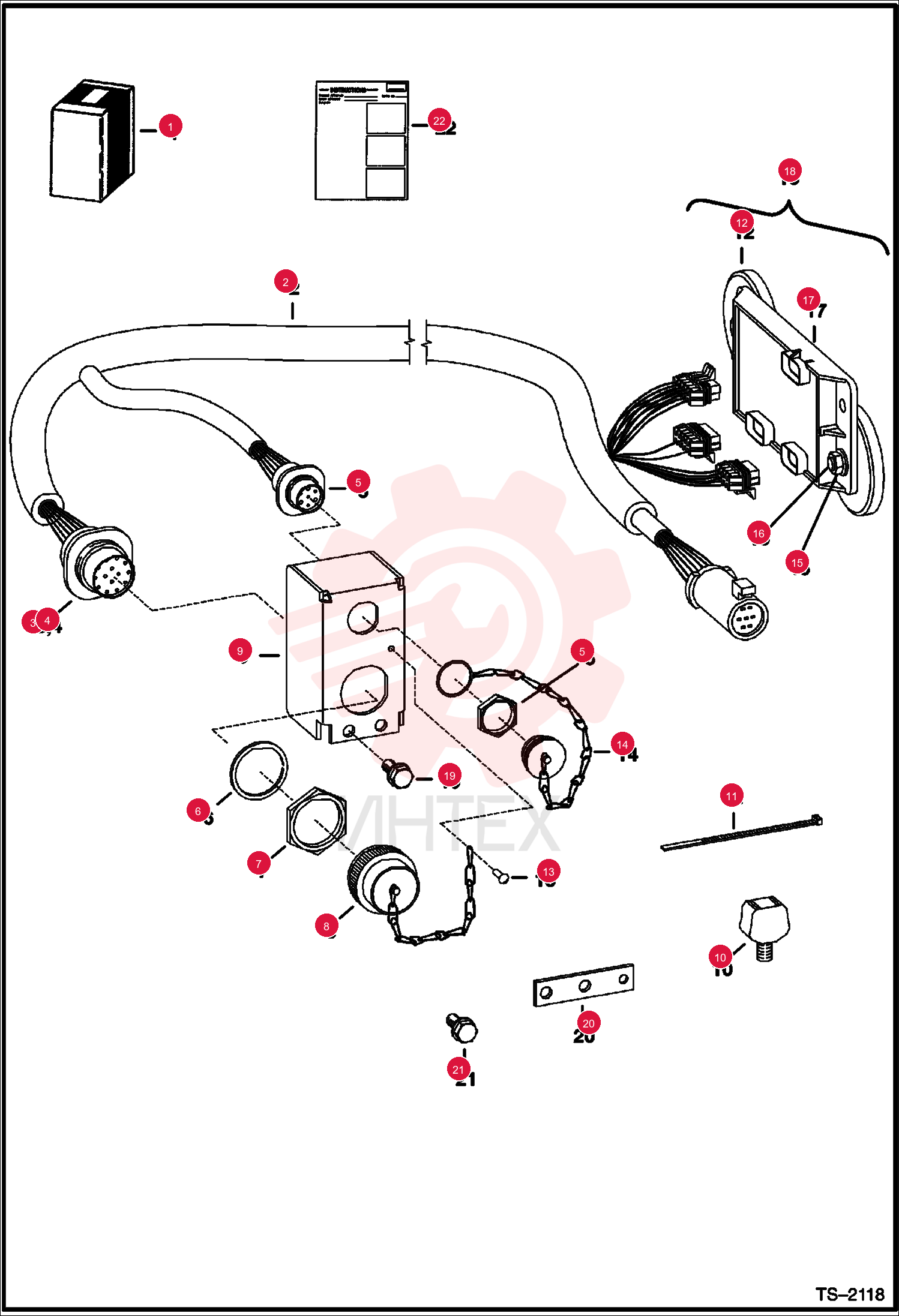

KIT, CONTROL ATTACH DLX 6727739

KIT, CONTROL ATTACH DLX 6727739

KIT, CONTROL ATTACH DLX 6727739

1 6727739

  • 6727739 - KIT
  • CONTROL ATTACH DLX

2 6729380

  • 6729380 - HARNESS
  • CONTROL ATTACH DLX
  • W/Ref. 3-8 & 14

3 6667569

  • 6667569 - CONNECTOR
  • RECEPTACLE
  • Also Order (14) of Ref. 4

4 6664040

  • 6664040 - PIN 5
  • male

5 6669549

  • 6669549 - SOCKET
  • 18 ga - not in kit

6 6674802

  • 6674802 - CONNECTOR
  • 7-PIN
  • - 7-pin - W/Ref. 7 does not include sockets

7 6677136

  • 6677136 - SOCKET
  • 12 ga - not in kit

8 6664037

  • 6664037 - WASHER

9 6664036

  • 6664036 - NUT

10 6664035

  • 6664035 - CAP

11 6726945

  • 6726945 - MOUNT

12 6675281

  • 6675281 - MOUNT
  • 773G only

13 6624289

  • 6624289 - STRAP
  • TIE

14 6719448

  • 6719448 - MAGNET
  • CONTROL ATTACH
  • 45 kg (100 lb) force

15 6704892

  • 6704892 - RIVET

16 6675026

  • 6675026 - CAP
  • CONNECTOR

17 83D6

  • 83D6 - LKNUT HEX FLG GR8

18 25G612

  • 25G612 - SCREW

19 6678675

  • 6678675 - CONTROLLER
  • ACD DLX
  • 3 connector - Was 6676514

20 84G3112

  • 84G3112 - SCREW THD ROLLING TT

21 6730291

  • 6730291 - BRACKET
  • 873G & 883 Only

22 35C512

  • 35C512 - SCREW FLGD HEX CAP

23 6901116

  • 6901116 - INSTRUCTIONS
