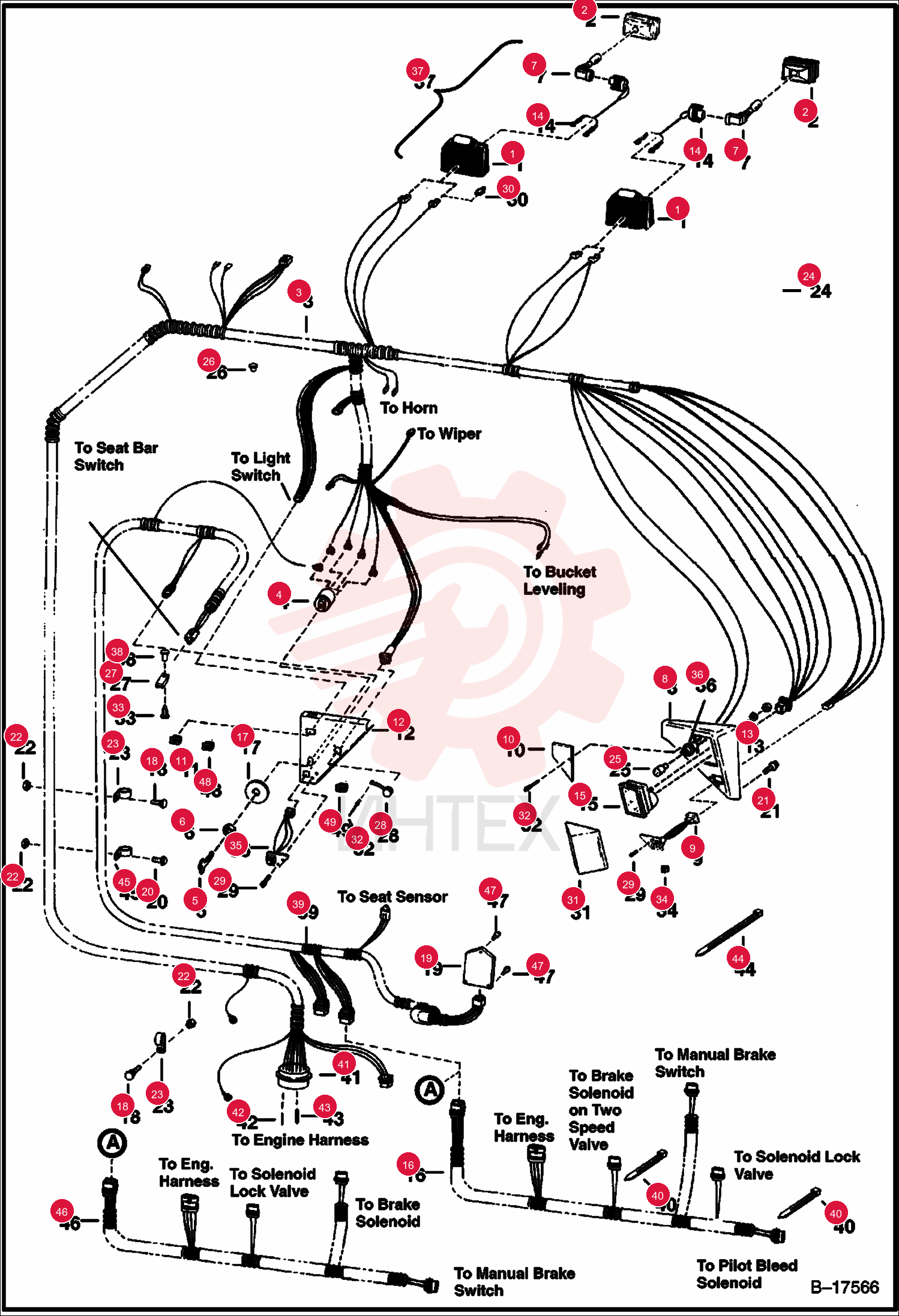

HOUSING 6578824

HOUSING 6578824

HOUSING 6578824

1 6578824

  • 6578824 - HOUSING
  • rubber

2 6649478

  • 6649478 - HOUSING
  • LIGHT ASSY

3 6714825

  • 6714825 - HARNESS

4 6665606

  • 6665606 - SWITCH
  • IGN
  • ignition - W/Ref. 9 & 10

5 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

6 6674202

  • 6674202 - NUT
  • Was 6598721

7 6667934

  • 6667934 - LIGHT
  • BULB

8 6702660

  • 6702660 - PANEL
  • INSTRUMENT
  • R.H.

9 6667904

  • 6667904 - SWITCH
  • aux. controls module - W/Ref. 11 - 5 - pin connector

10 6702678

  • 6702678 - DECAL
  • service codes

11 6665410

  • 6665410 - SWITCH
  • HEADLIGHT
  • light

12 6708427

  • 6708427 - PANEL
  • L.H.

13 17E8

  • 17E8 - WASHER

14 6578528

  • 6578528 - HARNESS
  • light

15 6904890

  • 6904890 - INSTRUCTIONS

16 6691063

  • 6691063 - SCREW

17 7131641

  • 7131641 - KIT
  • DISPLAY LCD
  • LCD monitor - screw mounted - includes screws
  • display & instructions

18 6716073

  • 6716073 - HARNESS
  • See Ref. 46 - Was 6714279

19 6709027

  • 6709027 - PLATE 10
  • brake start

20 35C412

  • 35C412 - SCREW FLGD HEX CAP

21 6674222

  • 6674222 - CONTROLLER
  • w/foot pedals - Was 6673002

22 6680445

  • 6680445 - CONTROLER
  • Use on Advanced Hand Controls - Was 6674224

23 35C410

  • 35C410 - SCREW HEX HD W/F GR5

24 6702642

  • 6702642 - SCREW WSHRD PLASTITE

25 61D4

  • 61D4 - NUT 5

26 30H56

  • 30H56 - CLIP INSULATED

27 83D4

  • 83D4 - LKNUT HEX FLG GR8

28 6578357

  • 6578357 - BULB 10

29 6707674

  • 6707674 - PLUG HOLE
  • round - plugs 1.28" (32
  • 5mm) dia. hole in cab

30 6665000

  • 6665000 - BRACKET MOUNTING

31 7269395

  • 7269395 - CAP
  • Was 6651703

32 6669225

  • 6669225 - SCREW

33 6519548

  • 6519548 - CONN BODY

34 7239135

  • 7239135 - SHIELD
  • snap in place - Was 6700487

35 6704892

  • 6704892 - RIVET

36 6665321

  • 6665321 - RIVET PLASTIC MALE
  • plastic male

37 6660594

  • 6660594 - BUTTON
  • on/off

38 6667905

  • 6667905 - SWITCH
  • traction override

39 6674220

  • 6674220 - SWITCH
  • OVERRIDE TRACTION
  • push to operate

40 6649331

  • 6649331 - SOCKETLIT
  • light - W/ 6" leads

41 6577801

  • 6577801 - LIGHT
  • FRONT ASSY
  • Ref. 1
  • 2
  • 7 & 14

42 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • plastic female

43 6712135

  • 6712135 - HARNESS

44 6665527

  • 6665527 - TIE
  • never modify

45 6664584

  • 6664584 - CONNECTOR
  • Also Order Ref. 42 & 43

46 6664827

  • 6664827 - PIN

47 6664040

  • 6664040 - PIN 5

48 6610510

  • 6610510 - STRAP
  • TIE 10

49 30H29

  • 30H29 - CLAMP

50 6712523

  • 6712523 - HARNESS
  • for relocation of tilt lock valve solenoid to control valve

51 6671037

  • 6671037 - TIE
  • yellow

52 91G412

  • 91G412 - SCREW
  • cross recess pan head

53 25G412

  • 25G412 - SCREW SKT BTN HD CAP
  • hex socket button head

54 6668814

  • 6668814 - SWITCH
  • bucket positioning on/off

55 6671036

  • 6671036 - LIGHT
  • two speed
