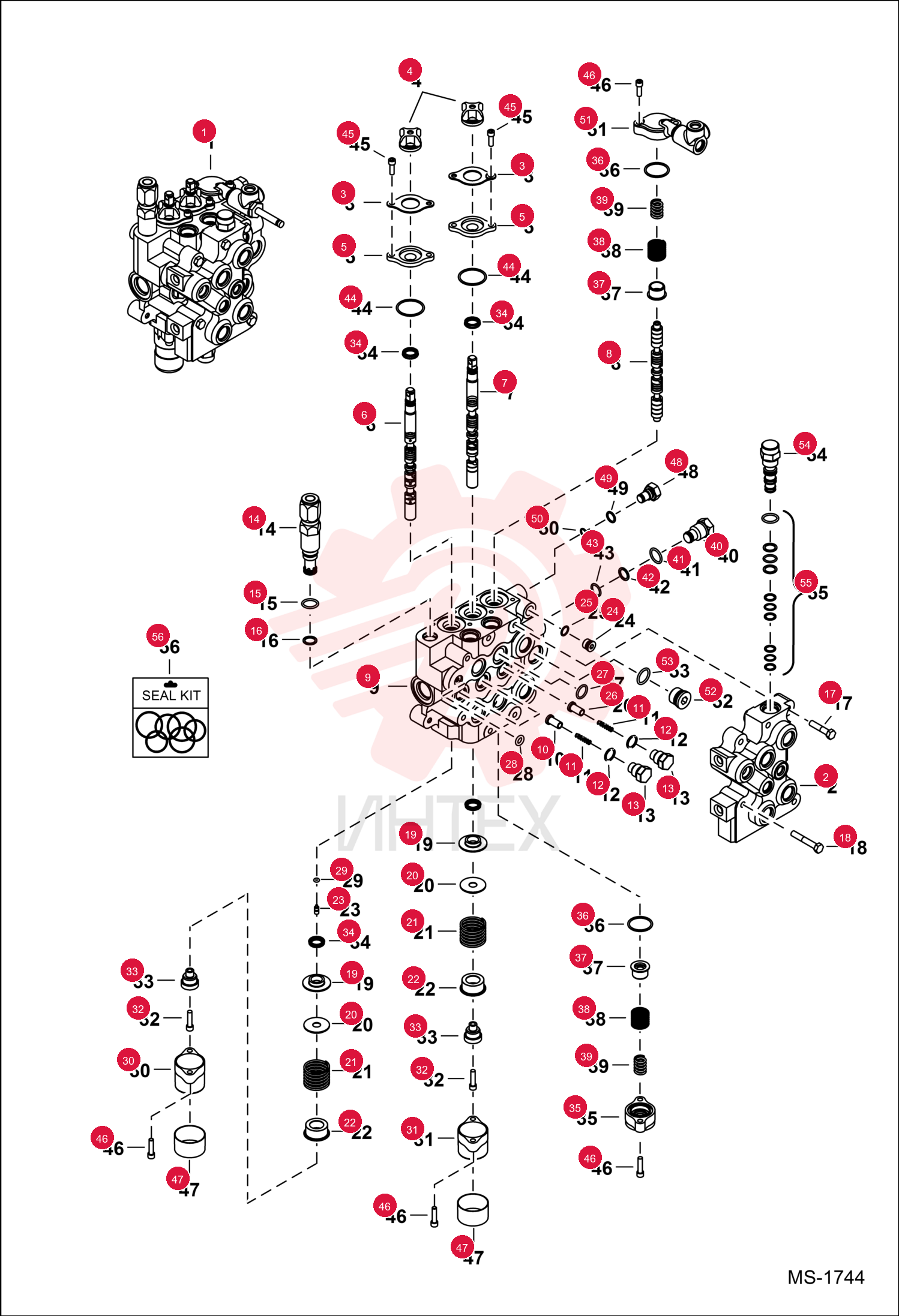

RETAINER 6589564 (8)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 6589565
- 6589565 - SEAL
4 7222716
- 7222716 - SPOOL
- LIFT
- lift - #1 or red - Was 6674297
5 7222718
- 7222718 - SPOOL
- LIFT
- lift - #3 or black - SEE NOTE - Was 6674299
6 7222717
- 7222717 - SPOOL
- LIFT
- lift - #2 or green - Was 6674298
7 7108242
- 7108242 - SPOOL
- TILT
8 7300937
- 7300937 - SPOOL AUX
- auxiliary - Was 6588074
9 6592115
- 6592115 - SEAT
- load check
10 6592117
- 6592117 - SPRING
- LOAD CHECK
11 79K8
- 79K8 - O RING 10
12 6592116
- 6592116 - NUT
- load check - W/Ref. 12
13 6650102
- 6650102 - O-RING
14 6650101
- 6650101 - O-RING
15 43C524
- 43C524 - BOLT
16 43C532
- 43C532 - BOLT
17 6595663
- 6595663 - BUSHING
18 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
19 6587580
- 6587580 - SPRING
20 6592100
- 6592100 - COLLAR
21 6801167
- 6801167 - SPOOLPLUG
- plastic - 0.69" long
22 24K8
- 24K8 - PLUG
- W/Ref. 25 - socket head
23 95K12
- 95K12 - O-RING
24 6596569
- 6596569 - SEAT
- load check
25 55K212
- 55K212 - O RING 10
26 55K204
- 55K204 - O RING 10
27 54K20002
- 54K20002 - O'RING 10
28 6803092
- 6803092 - BONNET
- .625 flange
29 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
30 30G416
- 30G416 - BOLT
31 6592109
- 6592109 - ADAPTER
32 6683274
- 6683274 - SEAL
- SPOOL 10
- Was 6665846
33 6588781
- 6588781 - END CAP
- .87" thick
34 58K124
- 58K124 - O RING 10
35 7108780
- 7108780 - SLEEVE
36 6596332
- 6596332 - SPRING
37 6595131
- 6595131 - SPRING
- .72'' OD
38 6592720
- 6592720 - PLUG
- W/Ref. 41-43
39 79K10
- 79K10 - O RING 10
40 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
41 6677106
- 6677106 - O-RING
42 1K127
- 1K127 - O-RING 10
- Was 93K127
43 29G412
- 29G412 - BOLT
44 29G416
- 29G416 - BOLT
- 1" long
45 6662848
- 6662848 - CAP
46 6806561
- 6806561 - PLUG W/SEALS
- W/Ref. 49 & 50
47 79K7
- 79K7 - O RING 10
48 25K20012
- 25K20012 - O RING 10
49 6805651
- 6805651 - AUX BLOCK
- aux
50 6812171
- 6812171 - PLUG
- W/Ref. 53
51 95K6
- 95K6 - O'RING
52 6689739
- 6689739 - VALVE
53 6690431
- 6690431 - KIT
- SEAL
- Was 6669734
54 6673904
- 6673904 - SEAL KIT
- port relief - W/Ref. 41-43
55 7123962
- 7123962 - SEAL KIT
- 3 SPOOL
- 3 spool - W/Ref. 4
- 23
- 29
- 34
- 36
- & 44
56 7123963
- 7123963 - SEAL KIT
- EXTERNAL FITTING
- external fitting - W/Ref. 12
- 25
- 27
- 28
- 49
- 50
- & 53
57 6690431
- 6690431 - KIT
- SEAL
- Was 6669734
58 7123961
- 7123961 - SEAL KIT
- COMPLETE
- Includes all seal kits
