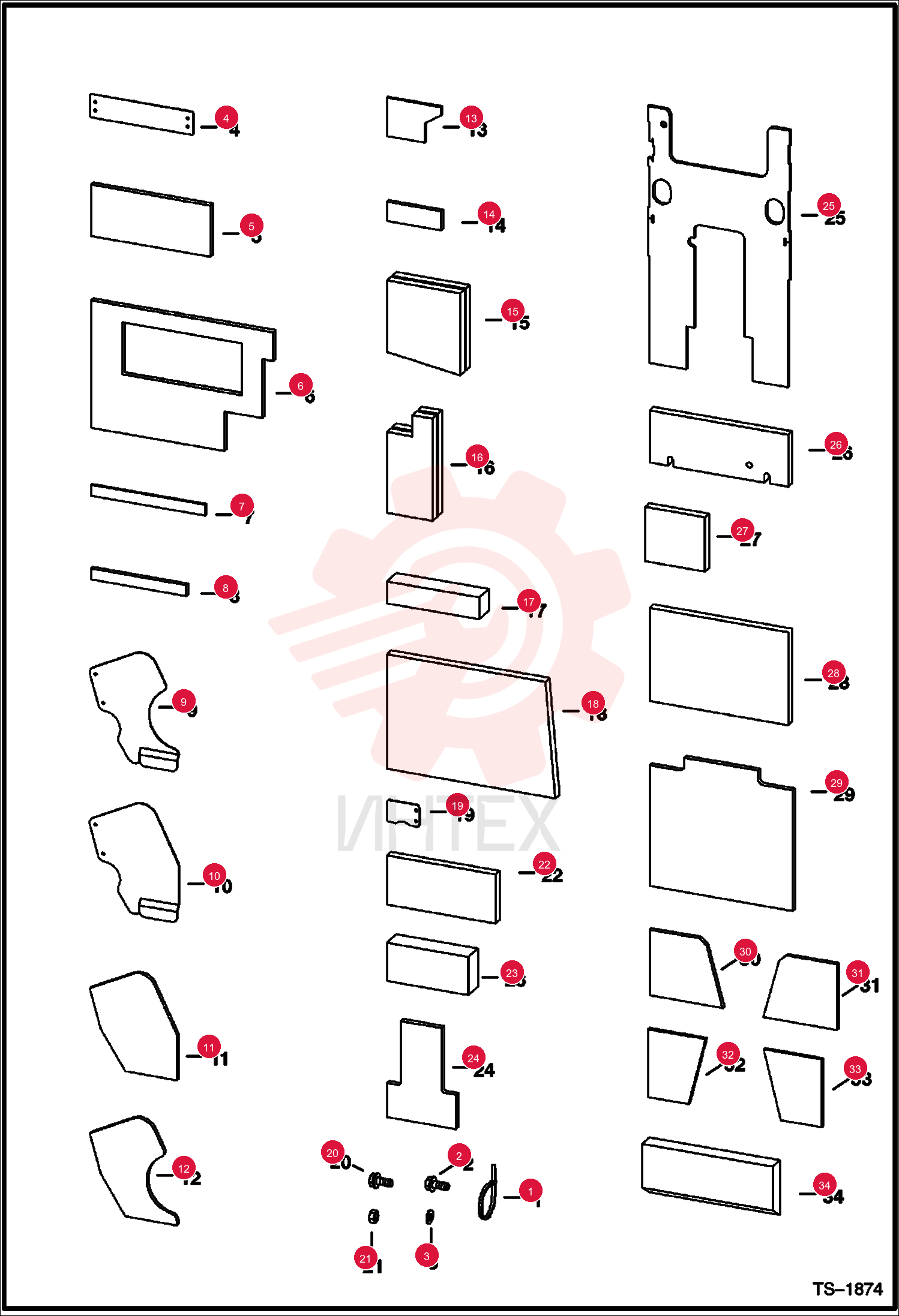

STRAP, TIE 6624289

STRAP, TIE 6624289

STRAP, TIE 6624289

1 6624289

  • 6624289 - STRAP
  • TIE
  • nylon

2 84G3716

  • 84G3716 - SCREW THD ROLLING TT

3 25E18

  • 25E18 - WASHER FLAT PLAIN

4 6804500

  • 6804500 - COVER
  • cylinder

5 6804492

  • 6804492 - INSULATION
  • tailgate

6 6804491

  • 6804491 - INSULATION
  • tailgate

7 6804493

  • 6804493 - INSULATION
  • R.H. cab

8 6804496

  • 6804496 - INSULATION
  • L.H. cab

9 6804259

  • 6804259 - DAMPER
  • airflow R.H.

10 6804258

  • 6804258 - DAMPER
  • airflow L.H.

11 6804305

  • 6804305 - INSULATION
  • damper

12 6804306

  • 6804306 - INSULATION
  • damper

13 6804494

  • 6804494 - INSULATION
  • housing

14 6804495

  • 6804495 - INSULATION
  • housing

15 6804186

  • 6804186 - INSULATION
  • trans

16 6804187

  • 6804187 - INSULATION
  • fender

17 6804181

  • 6804181 - INSULATION
  • fender

18 6804498

  • 6804498 - INSULATION
  • upright

19 6804499

  • 6804499 - INSULATION
  • exhaust

20 35C616

  • 35C616 - SCREW FLGD HEX CAP

21 97D6

  • 97D6 - NUT 10

22 6804497

  • 6804497 - INSULATION
  • upright

23 6804490

  • 6804490 - INSULATION
  • screen

24 6804193

  • 6804193 - INSULATION
  • floor

25 6804185

  • 6804185 - INSULATION
  • panel

26 6804180

  • 6804180 - INSULATION
  • cover

27 6804179

  • 6804179 - INSULATION
  • floor

28 6804178

  • 6804178 - INSULATION
  • floor

29 6804184

  • 6804184 - INSULATION
  • crossmember

30 6804182

  • 6804182 - INSULATION
  • panel shield

31 6804183

  • 6804183 - INSULATION
  • panel shield

32 6715393

  • 6715393 - INSULATION
  • panel shield

33 6715435

  • 6715435 - INSULATION
  • panel shield

34 6715096

  • 6715096 - INSULATION
  • cab back
