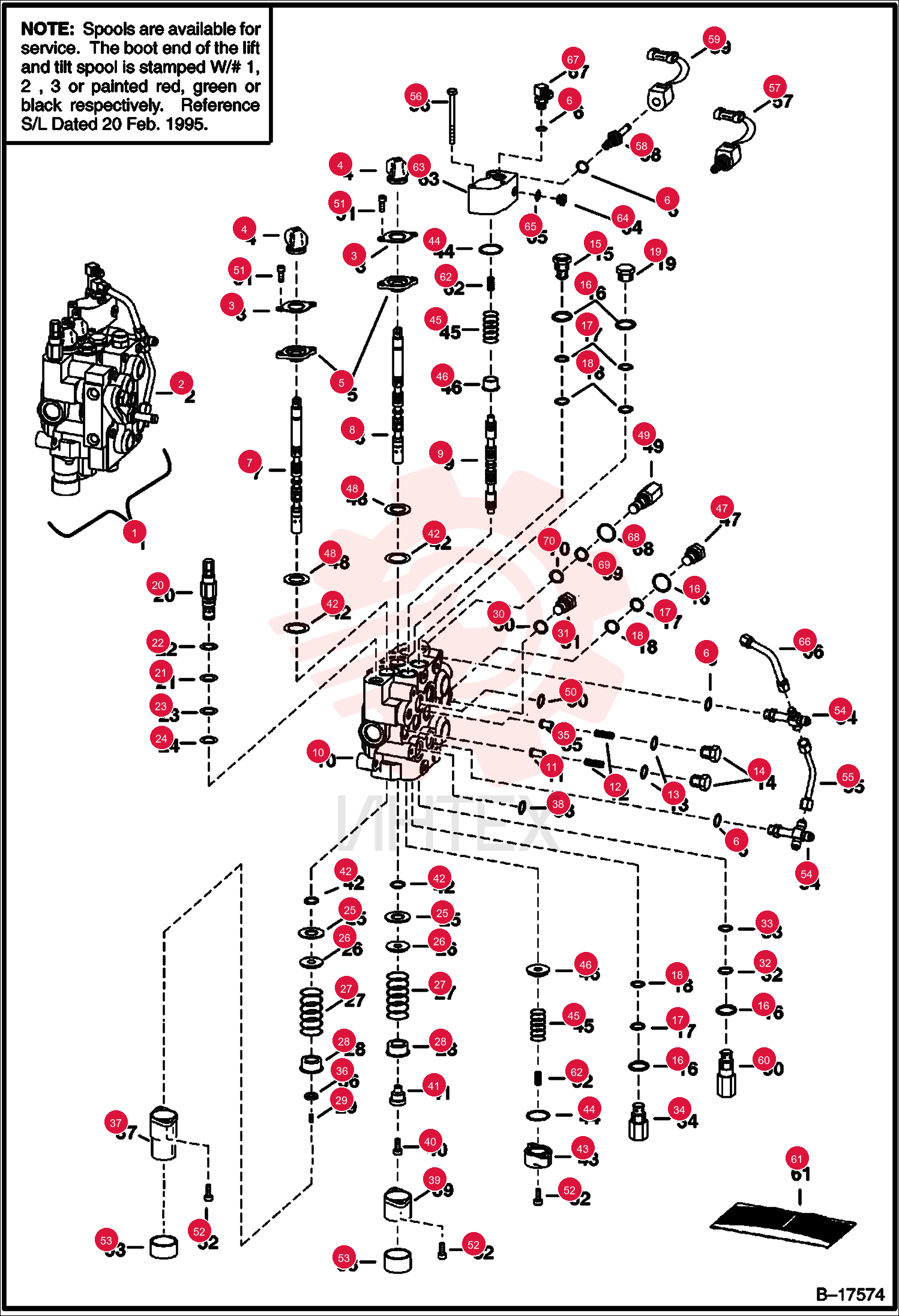

RETAINER 6589564 (4)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 6589565
- 6589565 - SEAL
4 99K6
- 99K6 - O-RING
- tapered boss face
5 79K6
- 79K6 - O RING 10
- flat boss face
6 7222716
- 7222716 - SPOOL
- LIFT
- lift - #1 or red - SEE NOTE - Was 6674297
7 7222717
- 7222717 - SPOOL
- LIFT
- lift - #2 or green - SEE NOTE - Was 6674298
8 7222718
- 7222718 - SPOOL
- LIFT
- lift - #3 or black - SEE NOTE - Was 6674299
9 6674300
- 6674300 - SPOOL
- tilt - # 1 or Red - SEE NOTE
10 6674301
- 6674301 - SPOOL
- tilt - # 2 or Green - SEE NOTE
11 6674302
- 6674302 - SPOOL
- tilt - # 3 or Black - SEE NOTE
12 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
13 6592115
- 6592115 - SEAT
- load check
14 6592117
- 6592117 - SPRING
- LOAD CHECK
15 79K8
- 79K8 - O RING 10
16 6592116
- 6592116 - NUT
- load check
17 6667549
- 6667549 - VALVE
- CHECK
- anti-cavity check - W/Ref. 16-18
18 79K10
- 79K10 - O RING 10
19 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
20 58K014
- 58K014 - O-RING 10
- back-up washer required
21 6677106
- 6677106 - O-RING
- back-up washer not required
22 6678574
- 6678574 - VALVE
- RELIEF
- port relief - W/Ref. 16-18 - Was 6673184
23 6595663
- 6595663 - BUSHING
24 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
25 6587580
- 6587580 - SPRING
26 6592100
- 6592100 - COLLAR
27 6801167
- 6801167 - SPOOLPLUG
- plastic - 0.69" long
28 95K12
- 95K12 - O-RING
29 90K8
- 90K8 - PLUG
- W/Ref. 30 - SOCKET HEAD - Was 90KV00008B
30 6671583
- 6671583 - VALVE
- RELIEF
31 6596569
- 6596569 - SEAT
32 54K20002
- 54K20002 - O'RING 10
33 6803092
- 6803092 - BONNET
- .625 flange
34 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
35 30G416
- 30G416 - BOLT
36 6592109
- 6592109 - ADAPTER
37 6683274
- 6683274 - SEAL
- SPOOL 10
- Was 6665846
38 6588781
- 6588781 - END CAP
- .87" thick
39 58K124
- 58K124 - O RING 10
40 6596332
- 6596332 - SPRING
41 7108780
- 7108780 - SLEEVE
- Was 6595951
42 6592720
- 6592720 - PLUG
- W/Ref. 16-18
43 1K127
- 1K127 - O-RING 10
- Was 93K127
44 6805137
- 6805137 - PLUG AND SEAL
- W/Ref. 68-70
45 55K204
- 55K204 - O RING 10
46 29G412
- 29G412 - BOLT
47 29G416
- 29G416 - BOLT
- 1" long
48 6662848
- 6662848 - CAP
49 6817553
- 6817553 - CROSS
- W/Ref. 6 - flat boss face - Was 6805241
50 6577690
- 6577690 - TUBELINE
51 29G436
- 29G436 - BOLT
52 6665084
- 6665084 - VALVE
- SOLENOID
- W/Ref. 58 & 59
53 6666616
- 6666616 - VALVE
- STEM SOLENOID
54 6586459
- 6586459 - SEAL KIT
55 6717706
- 6717706 - COIL
- 10 VOLT
- pwm - 10 volt
56 6676566
- 6676566 - NUT
57 6678552
- 6678552 - RELIEF VLV ANTI-CAV
- port relief & anti-cav. - 3500 PSI - use in tilt cylinder base end port - Ref. 16
- 32 & 33 - Was 6671632
58 6816250
- 6816250 - KIT
- SEAL
- one spool - Ref. 4
- 36
- 42
- 48
- 51 & 52 - Was 6803605
59 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 4
- 13
- 16-18
- 21-24
- 42
- 44 & 50-52 - also Order 6816250 seal kit - Was 6809448
60 6632279
- 6632279 - KIT
- SEAL
- main relief - Ref. 21-24
61 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 16-18 - Was 6586461
62 6673904
- 6673904 - SEAL KIT
- W/Ref. 16
- 32
- 33
63 6595131
- 6595131 - SPRING
- .72'' OD
64 6800790
- 6800790 - CAP
- END
65 24K5
- 24K5 - PLUG
- Was 90KV5 - Was 90KV5
66 95K6
- 95K6 - O'RING
67 6805171
- 6805171 - TUBELINE
68 97K6
- 97K6 - O-RING
- flared end
69 17KB0606
- 17KB0606 - FTG HYD 90 ELBOW
- Was 17KV00005B
70 79K7
- 79K7 - O RING 10
71 58K012
- 58K012 - O-RING 10
72 58K11
- 58K11 - O RING 10
