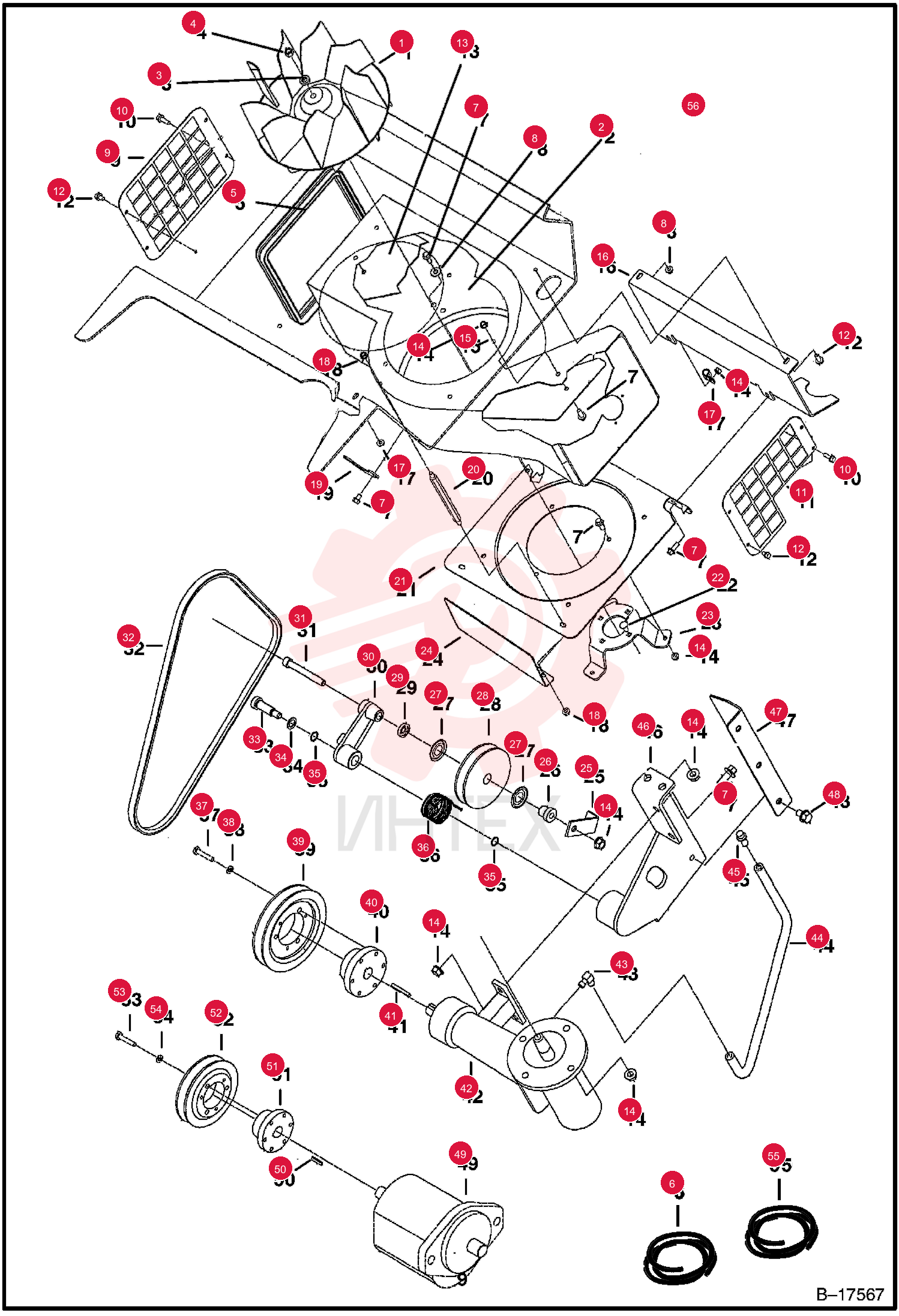

FAN 6597175
1 6597175
- 6597175 - FAN
2 6596935
- 6596935 - HOUSING
- fan
3 6701097
- 6701097 - WASHER
- Was 6803867
4 96D8
- 96D8 - NUT
5 6667586
- 6667586 - SEAL
- BULK
- bulk - sold per foot - Was 6597455
6 35C616
- 35C616 - SCREW FLGD HEX CAP
7 25E18
- 25E18 - WASHER FLAT PLAIN
8 6596936
- 6596936 - SCREEN
- LH - Was 6804413
9 84G3720
- 84G3720 - SCREW THD ROLLING TT
10 6596937
- 6596937 - RH SCREEN
- RH - Was 6804412
11 84G3716
- 84G3716 - SCREW THD ROLLING TT
12 6803697
- 6803697 - PLATE
13 57D6
- 57D6 - NUT HEX FLNG GR8
- Was 55D000006B
14 6803698
- 6803698 - PLATE
15 6596938
- 6596938 - SCREEN
- hyd. tank
16 30H35
- 30H35 - CLIP INSULATED
17 97D6
- 97D6 - NUT 10
18 6805203
- 6805203 - COVER
19 6577605
- 6577605 - BOLT
20 6806179
- 6806179 - MOUNT FAN
- Was 6596939
21 37C616
- 37C616 - BOLT
22 6596940
- 6596940 - BRACKET
- fan
23 6702474
- 6702474 - RETAINER
- belt
24 6704443
- 6704443 - BUSHING
25 6660995
- 6660995 - RING
- GREASE
26 6662997
- 6662997 - PULLEY
- FAN DRIVE IDLER
- idler
27 6704444
- 6704444 - WASHER
28 6725212
- 6725212 - ARM
- IDLER
- arm - Was 6707637
29 73G648
- 73G648 - BOLT
30 6803866
- 6803866 - BELT
- FAN
31 38C820
- 38C820 - SCREW
32 6655781
- 6655781 - BEARING
- THRUST
33 6704820
- 6704820 - O-RING
- metric
34 6700722
- 6700722 - SPRING
- torsion
35 6670902
- 6670902 - PULLEY
36 6670904
- 6670904 - HUB
37 7J2108
- 7J2108 - KEY
38 6657376
- 6657376 - ELBOW
39 6680970
- 6680970 - VENT BREATHER
- breather - Was 6670627
40 6804737
- 6804737 - BRACKET
- Was 66272788
41 6804728
- 6804728 - COVER
- idler
42 84G3710
- 84G3710 - SCREW
43 6674258
- 6674258 - KEY
44 6670903
- 6670903 - HUB
45 6670901
- 6670901 - PULLEY
46 6577822
- 6577822 - HOSE BULK
- sold per foot
47 7302291
- 7302291 - KIT
- BELT TENSIONER
- Ref. 25-30
- 33-35
- (1) 61D6 nut
- (1) 73G656 bolt & (1) 6700115 spring
